Summary of Contents for EUROPRO MIXPRO 60

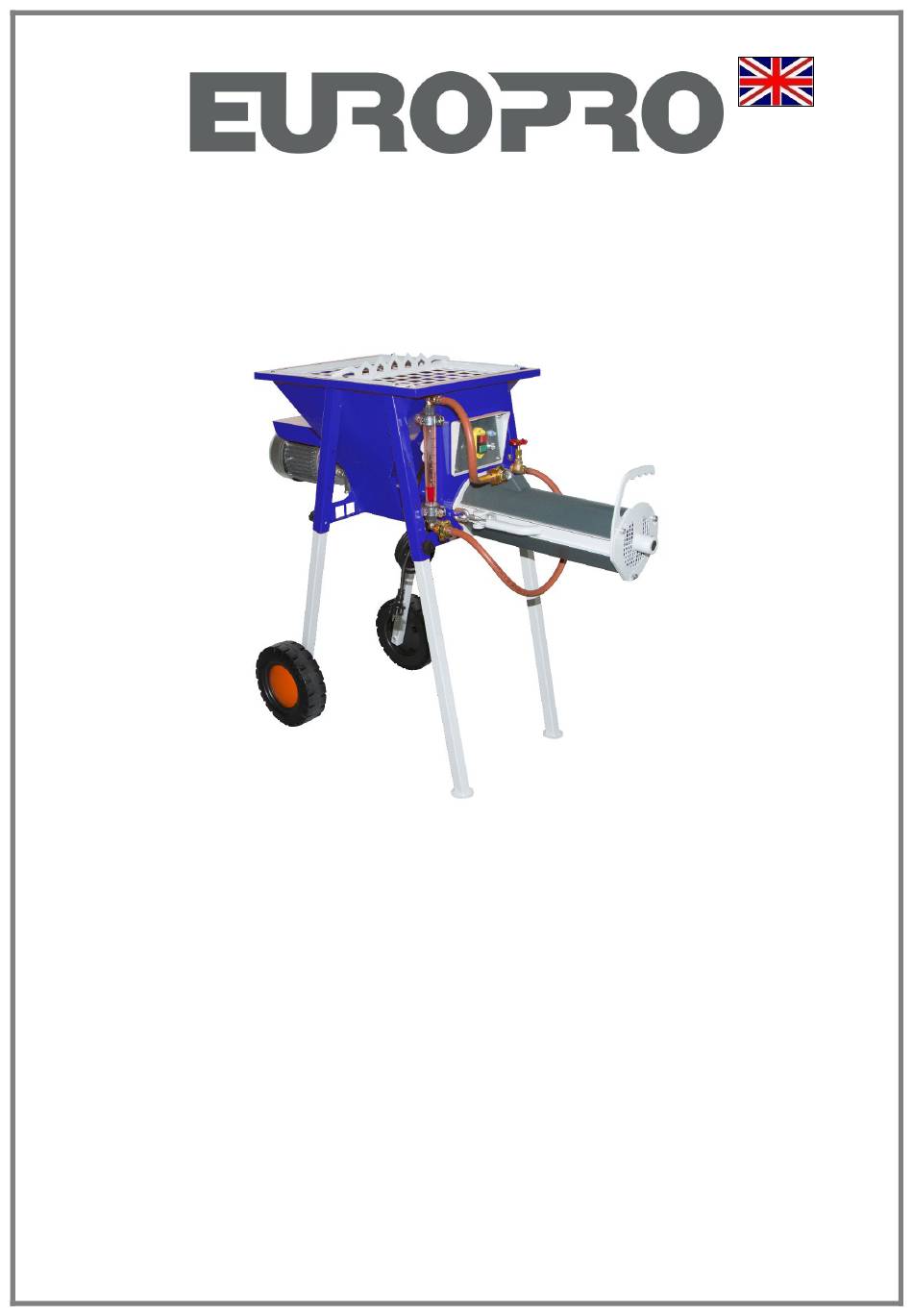

- Page 1 MIXPRO 60 INSTRUCTION MANUAL ORIGINAL INSTRUCTIONS Revision n…… of …… EUROPE PROJECTION - 228 Avenue Olivier Perroy, 13790 Rousset Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36 SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z...
- Page 2 CHECKS BEFORE SWITCHING ON ............. 14 MACHINE PREPARATION ................. 15 CLEANING OF CHAMBER MIXING ............. 16 SWATER DRAINAGE DURING WINTER PERIOD ........... 17 RESEARCH OF MALFUNCTIONS ..............18 ROUTINE MAINTENANCE ................. 18 WARRANTY ................... 19 MIXPRO 60 instruction manual EUROPRO pag.2...
-
Page 3: Reserved Rights
(or any other authorized operator), and by the safety manager, who shall certify the positive result of the same. RESERVED RIGHTS The contents on this manual can’t be reproduced and disclosed (totally or partially) without written authorization of the Manufacturer. MIXPRO 60 instruction manual EUROPRO pag.3... -
Page 4: Declaration Of Conformity
DECLARATION OF CONFORMITY In accordance with the Directive 2006/42/CE – D.Lgs 17/2010 DECLARES UNDER ITS OWN RESPONSIBILITY THAT THE MACHINE Type : MIXPRO 60, MIXPRO 60 PREMIUM Year of construction: 2022 It’s conformed to the following European Directives and the following modifications: ... - Page 5 IP 44 Power supply 230 / 50 Volt / Hz Motor power 6 o 12 Mixing capacity l /min Hopper capacity l (liters) Mixing chamber weight Hopper weight Total weight of the machine Noise level MIXPRO 60 instruction manual EUROPRO pag.5...
-
Page 6: Dimensions Of The Machine
DIMENSIONS OF THE MACHINE MIXPRO 60 instruction manual EUROPRO pag.6... - Page 7 MIXPRO 60 instruction manual EUROPRO pag.7...
-
Page 8: Parts List
Front frame support Pressure reducer Wheel Gear motor Hopper frame Water adjustment tap Water inlet in the mixing chamber Back frame support Water drain Joint moteur Powder dosing screw Pastrous products mixing axis Protection grid MIXPRO 60 instruction manual EUROPRO pag.8... - Page 9 • 6 l (liters) dosing screw: for glues, smoothers and low thickness products (water- repellent with difficulty in mixing); • 12 l (liters) dosing screw: for premixed mortars and gypsum, lime / gypsum, lime / cement-based plasters; MIXPRO 60 instruction manual EUROPRO pag.9...
-
Page 10: Safety Instructions
Don’t introduce objects thought the hopper protection grating. Don’t use the machine with the open grating. Don’t step or pull tubes and the electrical connections. MIXPRO 60 instruction manual EUROPRO pag.10... -
Page 11: Residual Risks
However, the machine presents residual risks, risks that can’t be eliminated at the source and involving a training and the operator’s attention. RESIDUAL PREVENTIVE ZONE DANGER RISKS MEASURES Cutting hazard in Hopper case of contact protection Education, training. with the bag grating cutting blade MIXPRO 60 instruction manual EUROPRO pag.11... -
Page 12: Water Connection
All the electrical connections (plugs - sockets) must be CEE industrial type with protection degree IP67. The use of extension cords is admitted only if made in safety standards (cross- section of conductors, insulation, earthing, etc..) MIXPRO 60 instruction manual EUROPRO pag.12... -
Page 13: Electrical Panel
ELECTRICAL PANEL REF. COMMAND FUNCTION Red button Stop machine Green button Run machine Thermal Warning light on: presence of voltage in the Voltage led panel MIXPRO 60 instruction manual EUROPRO pag.13... -
Page 14: Checks Before Switching On
Make sure that the plug of the power supply cable is connected to the plant supplier and that the main electric switch is off. Make sure that the water hose is well stretched avoiding any constriction. Use the compulsory personal protective devices provided by own employer. MIXPRO 60 instruction manual EUROPRO pag.14... -
Page 15: Machine Preparation
Increase or decrease the water flow rate incoming in the trunket acting on the related adjustment valve till obtaining the wished consistency; c. Stop the machine by pressing the red button on the electrical panel; MIXPRO 60 instruction manual EUROPRO pag.15... - Page 16 Open the lever (see figure below pt. 1) and slide off the mixing chamber from the hopper; Extract pastrous products mixing axis (see figure below pt. 2) clean it with the metallic brush (standard supplied); MIXPRO 60 instruction manual EUROPRO pag.16...
- Page 17 SWATER DRAINAGE DURING WINTER PERIOD 1) Disconnect the water hose from the machine; 2) Disconnect the water inlet hose from the mixing chamber 3) Open the tap of the system water drain; MIXPRO 60 instruction manual EUROPRO pag.17...
-
Page 18: Routine Maintenance
3) clean the mixing chamber. ROUTINE MAINTENANCE The operations of routine maintence must be done only by competent and experienced staff. The replacement of the machine components must be carried out only with original spare parts. MIXPRO 60 instruction manual EUROPRO pag.18... -
Page 19: Warranty
8) It is explicitly agreed upon, that the manufacturer shall not be held responsible for any liability following any possible damages that the purchasers may suffer resulting from loss of or diminished production due to possible construction defects subject to this warranty. MIXPRO 60 instruction manual EUROPRO pag.19... - Page 20 Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36 SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B MIXPRO 60 instruction manual EUROPRO pag.20...
