Summary of Contents for Simaudio MOON VOICE 22

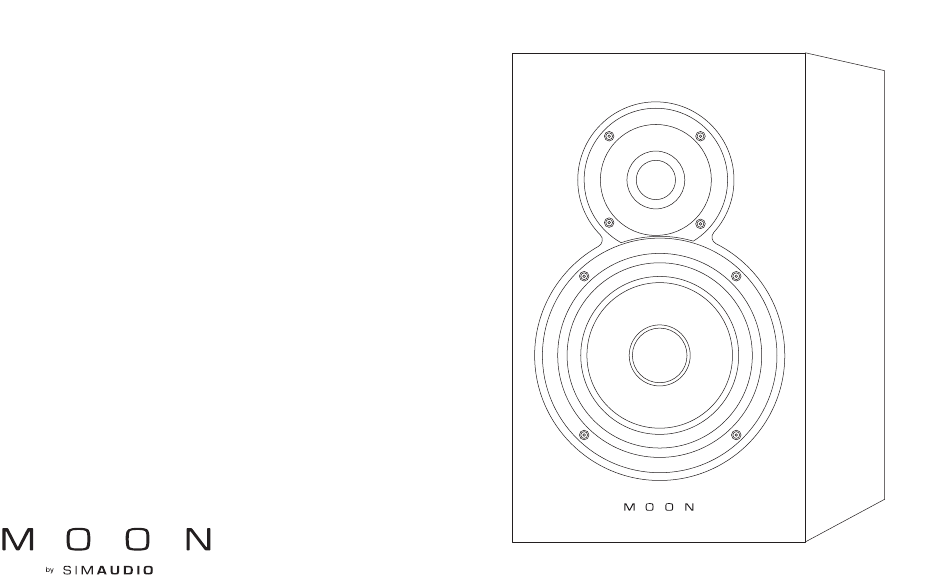

- Page 1 Voice 22...
- Page 2 Table of Contents Introduction Set up Connection Placement Care Specifications Date code : 20210809-01...
- Page 3 1 Introduction Congratulations! You are now the proud owner of a pair of MOON Voice 22 loudspeakers! We have applied our four decades of audio design experience to create these beautiful loudspeakers. Featuring premium materials and industry-leading technologies, they bring the renowned MOON sound to life.
- Page 4 2 Setup Contents • Loudspeakers (2) • Hover Bases (2, preinstalled) • Grilles (2) • Foam Dampeners (2) • Owner’s Guide • Warranty Assembly 1. Holding the sides of the cabinets and avoiding placing hands on their front and rear baffles, carefully remove each loudspeaker from the packaging.
- Page 5 3 Connection 1. Ensure that electronic components — e.g., amplifiers — are powered down before connecting or disconnecting cables. 2. Connect a cable from the positive (indicated in red or by a “+”) output terminal of the amplifier to the red terminal on the rear of the speaker cabinet. Connect the negative amplifier output from the same amplifier channel to the black speaker terminal (Drawing A).
- Page 6 4 Placement These loudspeakers are expertly designed to deliver great performances without elaborate fine-tuning. Ideally, ensure that the speakers align vertically with the listener’s ears. Position them equidistant from the listener, forming a triangle with the listener. Rotate the speakers so that they fire toward the listener, aiming them slightly beyond the listening position (Drawing B).
- Page 7 5 Care Regular maintenance of the Voice 22 is unnecessary. Despite the best intentions, even the mildest cleaning product could damage the finish on the cabinet. For years of enjoyment, keep it out of direct sunlight. Damage to the cabinet from abuse or improper care is not covered by the warranty and cannot be repaired.
- Page 8 6 Specifications Tweeter 29mm soft dome with waveguide Woofer 155mm polypropylene cone Sensitivity 89dB/2.83V/1m Nominal Impedance 6Ω Recommended Power 50W – 150W Frequency Response ±3dB: 55Hz – 24kHz Frequency Range -6dB: 45Hz – 30kHz Crossover 1.5kHz Dimensions (W x H x D) 20cm x 35cm x 29cm Weight 10.5kg...
