Cotech MS01 Manual

Light Sensor
Art.no 36-4908
Please read the entire instruction manual before using the product and then save it for future reference.
We reserve the right for any errors in text or images and any necessary changes made to technical data.
In the event of technical problems or other queries, please contact our Customer Services.
Installation

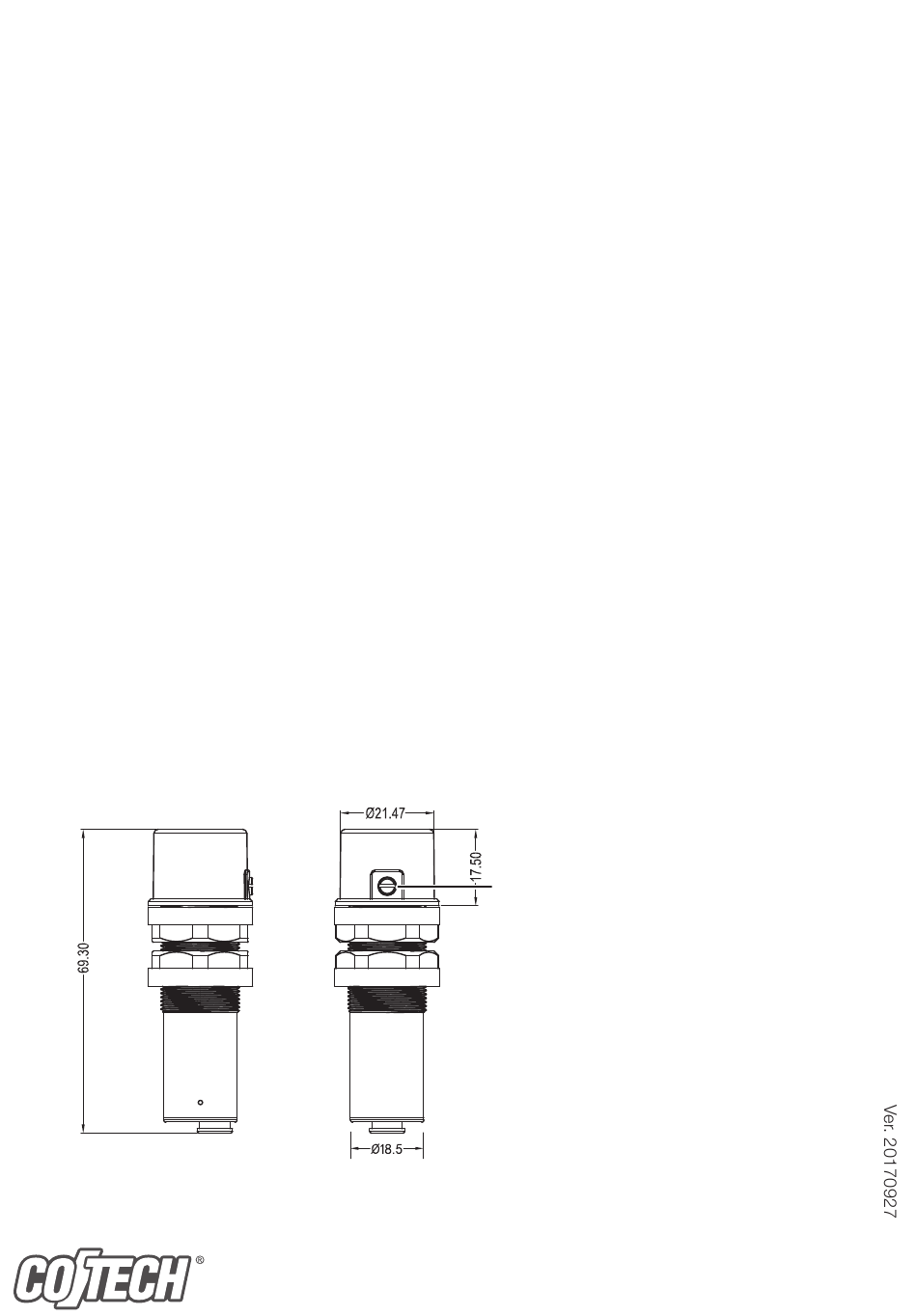

Mount the sensor in a suitable location on the ceiling (see last page, fig. 1).
Things to consider:
• The sensor is used to lower the light output of the light fitting it is connected to when the amount
of detected light is enough to light up the room (or raise the light output when the daylight fades).
• The sensor should be placed where it can best detect the level of light in the room.
• Any windows in the room must be able to let in enough daylight for the sensor to completely
switch off the light fitting in the room.
Connect the sensor to an LED multidriver (article no 36-5781) as instructed in fig. 2 (last page).
Note: When connecting the sensor, the jumper on the multidriver should be in position J1.
The "Push. PR" connection cannot be used at the same time as the "1–10 V" connection.
Refer to the instruction manual for the LED multidriver (36-5781).

Disposal

This product should be disposed of in accordance with local regulations.
If you are unsure how to proceed, contact your local council.

Specifications

GREAT BRITAIN • CUSTOMER SERVICE tel 020 8247 9300 e-mail customerservice@clasohlson.co.uk
internet www.clasohlson.co.uk postal 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
Model MS01
Potentiometer: determines at which light
level the sensor starts to lower/raise the light
output of the connected light fitting.
Input voltage
Dimming range
Connection cables
Cable length
Detection angle
Operating temperature 0–50 °C
IP rating
1–10 V DC
1–100 %
Red (+), Black (−)
80 cm
90°
IP20
