Summary of Contents for Helwett Packard HPE LCD 8500 1U

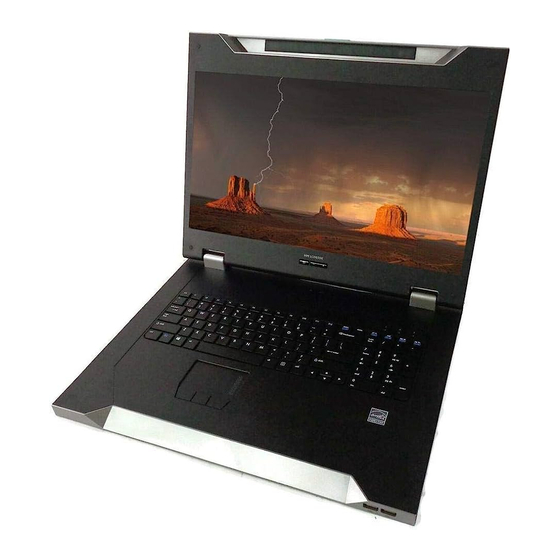

- Page 1 HPE LCD 8500 1U Console User Guide Abstract This guide provides operational guidance for the HPE LCD 8500 1U Console. Part Number: 30-8EDD75DE-004 Published: March 2022 Edition: 4...
- Page 2 © Copyright 2019, 2022 Hewlett Packard Enterprise Development LP Notices The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
-
Page 3: Table Of Contents
ENERGY STAR compliant......................................6 Installation.......................... 7 Kit contents............................................7 Installing the HPE LCD 8500 1U Console.................................7 Connecting and routing cables.....................................11 Accessing the HPE LCD 8500 1U Console..............................12 Removing the HPE 1U Console Rails................................13 Operational overview.....................14 On-screen display.........................................14 Launching OSD menu.........................................14 Navigating OSD.......................................... - Page 4 Customer self repair........................................23 Warranty information......................................... 23 Regulatory information......................................23 Documentation feedback......................................24...
-
Page 5: Introduction
Introduction Main Components Callout Component Function Number Blue LED • Turns on when the display is closed • Helps identify the HPE LCD85001U Console in a rack OSD activation button • Launches OSD menus • Selects menu options • Exits menus and OSD OSD scroll up and down button Used to scroll in the OSD menu and adjust functions Number lock LED... -
Page 6: Rear Components
Rear components Callout number Description USB pass-through USB pass-through Display Port VGA input port Power connection port USB keyboard and mouse port Serial firmware port ENERGY STAR compliant The HPE LCD8500 1U Console is ENERGY STAR qualified. For more information about the ENERGY STAR qualifications, see the HPE website (https://www.hpe.com/us/en/about/ environment/eco-labels.html). -
Page 7: Installation
In an effort to reduce landfill, HPE made a Green decision to remove excess waste from our accessory kit. This resulted in removing the multiple power cords included in the product. Installing the HPE LCD 8500 1U Console Procedure 1. - Page 8 2. Extend the inner slides until they lock into place. 3. Align the unit with the extended inner slides, and then insert the unit into the rack. 4. From the rear of the rack, slide the brace rail assembly in between the HPE 1U console rails. Installation...
- Page 9 5. Align the screw holes on the brace rail with the screw holes on the HPE 1U console rails. 6. Using two 6-32 screws, secure the brace rail to the HPE 1U console rails. 7. Remove the two screws from the rear of the unit. Installation...
- Page 10 8. Attach the cable management arm to the rear of the unit with same two screws. 9. Connect and route the cables through the cable management arm and unit opening. Installation...
-
Page 11: Connecting And Routing Cables
The installation is complete. Connecting and routing cables When connecting and routing the cables through the cable management arm and cable tray to the HPE LCD8500 1U Console, use the following cable-routing method to ensure that the cables fit into the tray. NOTE: Use the USB keyboard/mouse cable when connecting the unit to a device. -
Page 12: Accessing The Hpe Lcd 8500 1U Console
USB pass-through cable USB pass-through cable Display port VGA cable Power cable USB keyboard/mouse cable Accessing the HPE LCD 8500 1U Console Procedure 1. Gently extend the HPE LCD 8500 1U Console until the slides lock. 2. Lift the display. Installation... -
Page 13: Removing The Hpe 1U Console Rails
Removing the HPE 1U Console Rails Procedure 1. Locate the spring release. 2. Place your hand on the outside of the HPE 1U Console Rails so that you can move the spring release. 3. Gently move the spring release toward the inside of the rack (callout 1) while moving the HPE 1U Console Rails (callout 2). -
Page 14: Operational Overview
Operational overview On-screen display The On Screen Display (OSD) buttons are used to operate the HPE LCD8500 1U Console OSD menus. Callout Component Function number OSD activation button • Launches OSD menus • Selects menu options • Exits menus and OSD OSD scroll up and down button Used to scroll in the OSD menu and adjust the function Launching OSD menu... -
Page 15: Osd Menu
Procedure 1. Use the Up (+) or Down (-) button to scroll through the OSD menu or an OSD sub-menu. The Up (+) and Down (-) button are also used to adjust or change a function setting. 2. Use the OSD activation button to select a sub-menu or a function. Example To exit the OSD menu: 1. -
Page 16: Advanced
The center of the bar is obtained from the factory-preset value for Horizontal Position. At value=MIN, the selection of + positioning response might vary between XGA and SXGA panels. This is caused by physical limitations at MIN OSD placement. • Vertical position—Enables the adjustment of the screen's vertical position using a slider bar. -
Page 17: Information
• Simple Chinese • Spanish Information The Information option provides the following unit information: • Rack Tag Version • Rack SN • Rack Part Number • Rack Product Name • Rack U Height • Console Description ◦ U Position ◦ U Location ◦... -
Page 18: Maintenance
Maintenance Maintenance guidelines To protect your unit from overheating and other types of damage: • Use only a power source and connection appropriate for this unit, as indicated on the marking labeland back plate. • If an extension cord or power strip is used, be sure that the cord or strip is rated for the product. Also, be sure that the total ampere ratings of all products plugged into the extension cord or power strip donot exceed 80% of the extension cord or power strip ampere ratings limit. -
Page 19: Shipping Instructions
Shipping instructions Keep the original packing box in a storage area in case you must move or ship your HPE LCD8500 1U Console. Moving a rack with the HPE LCD8500 1U Console installed When moving the HPE LCD8500 1U Console installed in a rack, HPE recommends that you install the CTO Brackets, included in your kit, on each side of the unit and rack. -
Page 20: Electrostatic Discharge
Electrostatic discharge Preventing electrostatic discharge To prevent damaging the system, be aware of the precautions you must follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static- sensitive devices. -
Page 21: Websites
Websites General websites Single Point of Connectivity Knowledge (SPOCK) Storage compatibility matrix https://www.hpe.com/storage/spock Storage white papers and analyst reports https://www.hpe.com/storage/whitepapers For additional websites, see Support and other resources. Websites... -
Page 22: Support And Other Resources
Support and other resources Accessing Hewlett Packard Enterprise Support • For live assistance, go to the Contact Hewlett Packard Enterprise Worldwide website: https://www.hpe.com/info/assistance • To access documentation and support services, go to the Hewlett Packard Enterprise Support Center website: https://www.hpe.com/support/hpesc Information to collect •... -
Page 23: Remote Support
IMPORTANT: Access to some updates might require product entitlement when accessed through the Hewlett Packard Enterprise Support Center. You must have an HPE Passport set up with relevant entitlements. Remote support Remote support is available with supported devices as part of your warranty or contractual support agreement. It provides intelligent event diagnosis, and automatic, secure submission of hardware event notifications to Hewlett Packard Enterprise, which initiates a fast and accurate resolution based on the service level of your product. - Page 24 Additional regulatory information Hewlett Packard Enterprise is committed to providing our customers with information about the chemical substances in our products as needed to comply with legal requirements such as REACH (Regulation EC No 1907/2006 of the European Parliament and the Council). A chemical information report for this product can be found at: https://www.hpe.com/info/reach For Hewlett Packard Enterprise product environmental and safety information and compliance data, including RoHS and REACH, see:...
