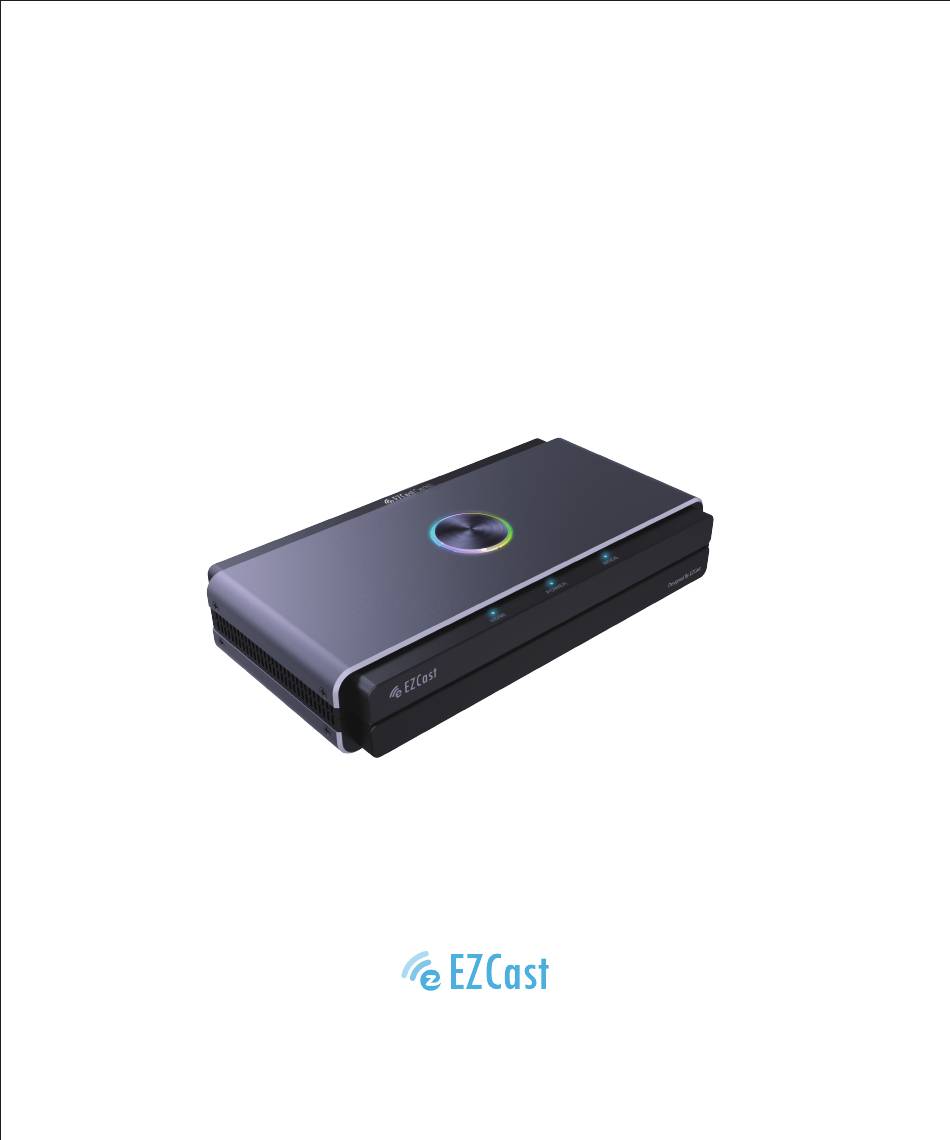

- Page 1 EZCast CatchU B1 Quick Start Guide v1.0 Product information is subject to change without prior notice.
-
Page 2: What's In The Box
What’s In The Box Product Type-C to USB HDMI to HDMI Quick Start Guide Installation Scan the QRCode below to visit full-version user manual on our website. - Page 3 Signals and Buttons Instruction 1. LED light - Multi-color: Ready to record - Stable red light: Recording to external storage - Flash in red: Warning message - Light off: Power off Note: When the LED light is flashing in red, it means the setup or configurations are incorrect: - No HDMI input signal - No USB Storage inserted on Storage/ Phone port...
-
Page 4: Ports Introduction
5. Storage/ Phone - Storage: Connect an external USB-A disk (exFAT/ FAT32 format supported) to record streaming video directly by pressing the Record button on the top of EZCast CatchU. Support simultaneously record to standalone USB storage and to UVC/ PC, however only as H.264 format. -
Page 5: Hardware Installation And Connection
Hardware Installation and Connection Capture to PC 4K pass-thru HDMI HDMI OUT 4K@60Hz HDMI HDMI HDMI USB-C USB-A Stream/ record UVC/ PC HDMI IN software 4K@60Hz 1080p@60Hz *Power should be supplied by 5V/2A while using. Capture to Standalone USB Disk 4K pass-thru Click to record LED light... - Page 6 Hardware Installation and Connection Capture to PC and Standalone USB Disk Simultaneously UVC/ PC and Storage are able to record simultaneously only as H.264 format. 4K pass-thru HDMI HDMI OUT USB-C USB-A 4K@60Hz HDMI Stream/ record HDMI HDMI UVC/ PC software 1080p@60Hz HDMI IN...
- Page 7 Hardware Installation and Connection Capture from Camera/ Gaming Station Standard HDMI for camera includes: HDMI, mini-HDMI, micro-HDMI Please use an adapter to transmit data. 4K pass-thru HDMI HDMI OUT HDMI/ Camera mini-HDMI/ HDMI 4K@60Hz micro-HDMI HDMI USB-C USB-A Stream/ record UVC/ PC HDMI IN software...
- Page 8 Hardware Installation and Connection Capture from Phone Note: 1. Capture from phone does not support pass-thru via HDMI OUT port. 2. Mobiles can be captured via HDMI IN port for those support HDMI output. Android Download MiraPlug App USB-C for capture and settings Lightning USB-C USB-A...
- Page 9 1. Download MiraPlug App on your mobile (Android/ iOS supported). 2. Connect your mobile by a USB data cable to EZCast CatchU powered up. 3. Firmware upgrade and time correction for EZCast CatchU can be done by MiraPlug App. System/ Hardware Requirement...
-
Page 10: Product Informations
Product informations Product EZCast CatchU B1 Input HDMI In 2.0, USB 2.0 Type A Output HDMI Out 2.0, USB 3.0 Type C 480p@60Hz, 720p@60/50Hz, 1080i@60Hz, Pass Through 1080p@60/50Hz, 4K@30/60Hz USB 3.0 Type C (UVC) : 640x480p@60/30Hz, Video Capture 720p@60/30Hz, 1080p@60/30Hz Resolution USB 2.0 Type A (External Storage):...
