Acces 200700T Assembly Instructions

For use with Model # 200740T (Comfort Incline) / #200600T (Smart Step) / 200400T (Easy Entry Step)

Ladder Components

A) Handrails
B) Platform
C) Adjustable Support Feet
D) Outside Ladder Body
E) Ladder Foot Extension
G) Adjustable Support Tube
H) Support Tube Base
I) Ladder Secure Straps
Hardware Kit
(not shown)
J) 3/8" x 4" Carriage Bolt
K) 3/8" Hex Nut
L) 3/8" Flat Washer
M) #14 x 3/4" Tapping Screw
P) 1/4" x 2-1/4" Phillips Head Bolt 2
Q) 1/4" Acorn Nut
R) 1/4" Flat Washer
S) 1" Pan Head Screw
T) Lock Cable
Supplies Required: Phillips screwdriver or bit,
drill, 1/8" bit, tape measure, 7/16"and 9/16"
sockets, box or open end wrenches, padlock.
Note: Before you begin the assembly of your
ladder/step, please insure you have all components
and hardware.
Note: Contact our customer service department to
request any missing or damaged parts or hardware
at 888-333-1134.
Step 1 Platform and Handrail Assembly

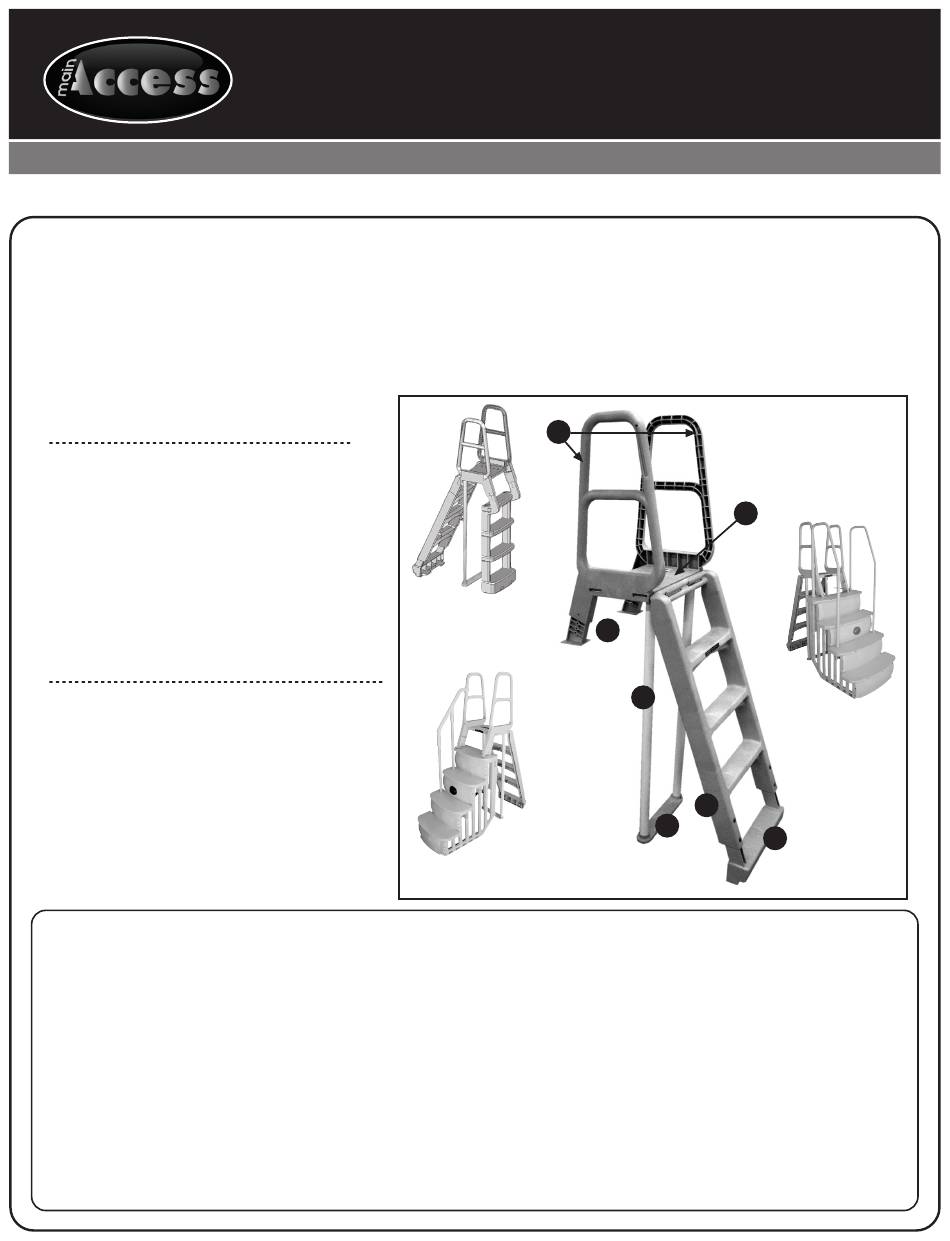

Locate the Left and Right Handrail Assemblies (A) and the Platform (B). Secure the Handrail
Assemblies (A) to the Platform (B) by snapping them over the tabs on the platform.
Step 2 Adjustable Support Feet Preparation
Insert the Adjustable Support Feet (C) into the Handrail Assembly sockets as shown in the diagram.
DO NOT INSERT HARDWARE AT THIS TIME.
Step 3 Platform Support Tubes
Locate the Support Tube sockets on the underside of the Platform (B) and insert one end of each
Support Tube. Place the Support Tube Base (H) on the ground and insert other end of Adjustable
Support Tube (G) in Support Tube Base (H). DO NOT SECURE WITH HARDWARE AT THIS TIME.
Qty
2
1
2
1
1
2
1
2
Qty
4
4
4
6
2
Shown with
2
Comfort Incline
(200700T/200740T)
8
1
Shown with Smart Step System
#200100T (200700T/200600T)
S T E P B Y S T E P A S S E M B LY I N S T R U C T I O N S
SMART CHOICE LADDER
ASSEMBLY INSTRUCTIONS

SAFETY INSTRUCTIONS:

• Install ladder per manufacturer's instructions.
• Locate ladder on a solid base.
• Ladder is designed for use by one person at a time.
• This ladder is intended for use as a swimming pool ladder only.
• Face ladder when entering and exiting the pool.
• No jumping, no diving from ladder.
• Do not swim through, behind or around the ladder or step system.
A
C
Model #200700T
B
G
Shown with
Easy Entry System
#200800T
(200700T/200400T)
D
H
E
continued on other side
