Summary of Contents for Hope 1005PKS-MA

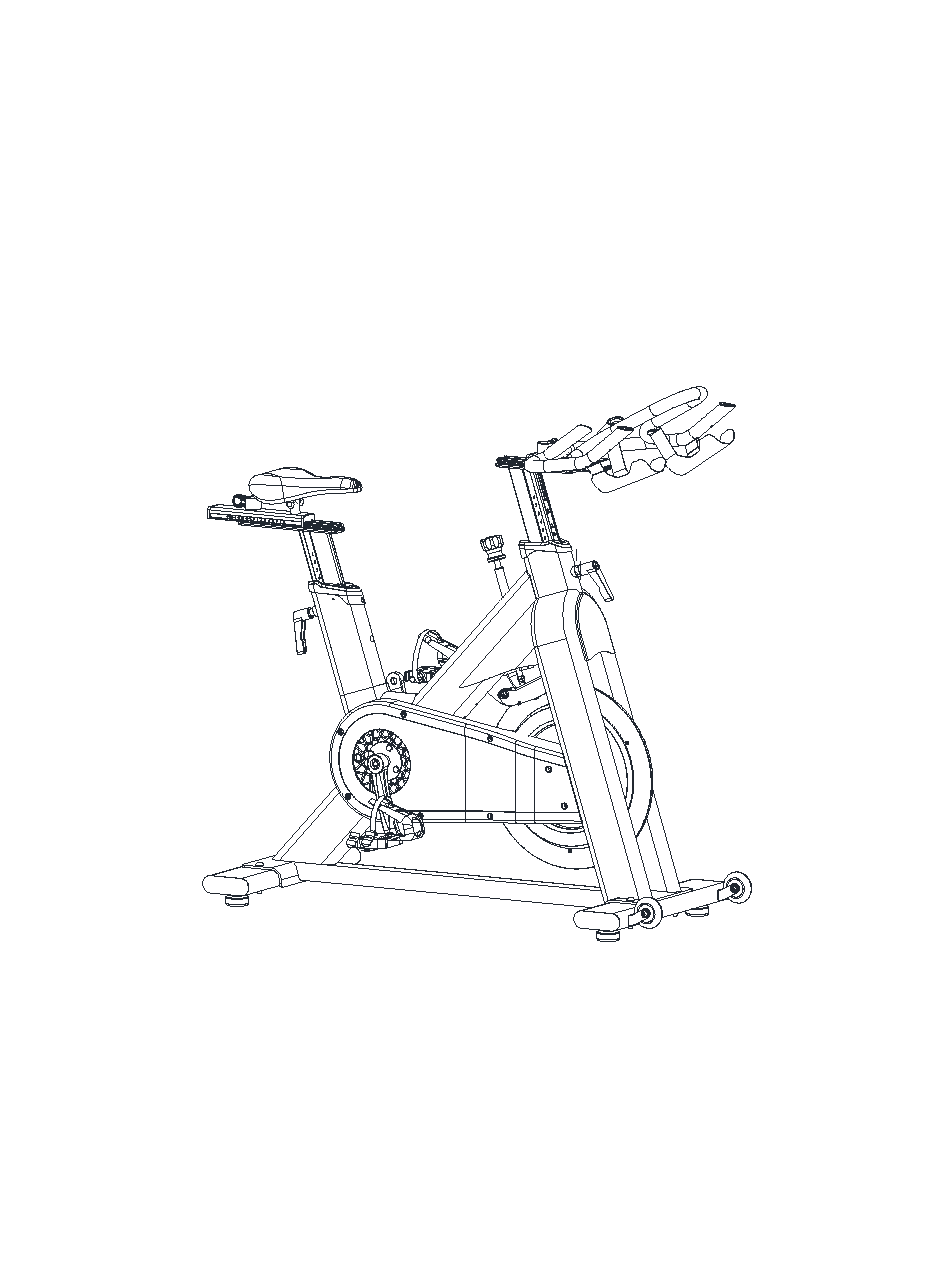

- Page 1 USER MANUAL INDOOR BIKE Be Sure to Read This Manual before Assembling and Using...
- Page 2 CONTENTS ………………………………………3 SAFETY GUIDELINE ……………………………….......6 PARTS LIST ……………………………………………10 INSTALLATION …………………………………………………14 NOTICE - 2 -...
-
Page 3: Safety Guideline
SAFETY GUIDELINE Regular maintenance of the bike should be performed and is essential to keep your Spin bikes in top operating condition. Without preventative maintenance, normal wear and tear may cause cumulative effects, such as misalignment or early replacement of parts. 1. - Page 4 INSPECTION Ensure to inspect all major moving parts such as the saddle, pedals, handlebars and tension wheel on a regular basis. Pedals: Ensure that pedals are tightened frequently to prevent them from becoming loose. Adjustment slider: Check the seat adjustment slider and handlebar adjustment slider regularly to ensure that they are locked in place.
- Page 5 - 5 -...
-
Page 6: Parts List
Part List DESCRIPTION SPECIFICATION Frame Rear Base Flat Oval 40*120*498L Front Base Flat Oval 40*120*498L Seat Post 30*70*3T*527L Handlebar Post 30*70*3T*330L Seat Support 21*48*240 Handlebar Support 21*48*180 Handlebar Handle Knob Cover Handle Knob Sync Block Hexagon Nut Washer φ16*φ8.2*2T Spacer Pin φ4*18 Inner Hexagon Column Screw M4*8... - Page 7 Braking Pole Ø12*M12*P1.75*270L Plastic Sheath Ø22*Ø12.5*40L Sheath φ16*φ12*20L Braking Limited Block □16*16*33L Hexagon Nut Hexagon Cap Nut Brake Holder 156.1*115.7*4T Brake Pad 55*12*8.8T Magnet Holder 2.5T Magnet φ25*8T Inner Hexagon Column Screw M10*50L Washer Φ20*Φ10*1.5 Torsion Spring φ2.8 Hexagon Nylon Nut M10*10T Corrugated Mat Φ32*Φ25.5*0.3T...
- Page 8 Cross Umbrella Head Screw M5*10 Inner Hexagon Column Screw M6*18 Chain Cover A Washer Φ25*Φ8*1T Tension Spring Φ3.0*17 Tension Wheel φ37*φ30*24.5 Inner Hexagon Flat Round Screw M8*27L Spacer Pin φ4*14 Seat Rear Inner Pipe Sheath(Right) Rear Inner Pipe Cover Front Inner Pipe Sheath(Left) Inner Hexagon Column Screw M5*20L Hexagon socket countersunk head screw...
-
Page 9: Installation
INSTALLATION - 9 -... - Page 10 Steps of Installation: Step 1 ：Install Front Base and Back Base ix the Front Base (3) and Rear Base (2) to Main Frame (1) respectively with Washer Φ20*Φ10.1*1.5 (64) and Inner Hexagon Flat Round Screw M10*25 (65).Then fasten them with Nylon Nut (54)by Inner Hexagon tool.
- Page 11 Step 3：Assemble the Seat Post A. Remove the Inner Hexagon Column Screw(97) from the seat post(4).Insert the seat post(4) into the Rear Inner Cover(95).Then tighten the Inner Hexagon Column Screw(97). B. Loosen the L-shape handle(38),put the Seat Post(4) into the frame.Adjust the seat Post to the “Stop” position.Then re-tighten the L-shape handle(38).
- Page 12 Step 5：Assemble the Handlebar Post A.Remove the Inner Hexagon Column Screw(97) from the Handlebar post(5).Insert the handlebar post(5) into the Front Inner Pipe Cover(84).Then tighten the Inner Hexagon Column Screw(97). B.Loosen the L-shape handle(38),put the Seat Post(4) into the frame.Adjust the seat Post to the “Stop” position.Then re-tighten the L-shape handle(38).
- Page 13 Step 7：Assemble the Seat Put the Seat(85) into Seat Support(6),use the opening wrench to to fasten the Seat (clockwise direction). Step 8：Installation Completed After finishing installation, please inspect all the screws and nuts carefully to make sure all of them tightened.
-
Page 14: Notice
NOTICE 1.Before exercise, inspect all moving parts incl. saddle, handlebar, pedals etc regularly to ensure they are tightened correctly. 2.If you need to move the bike, please grasp the Handlebar (8) at their very ends to make the Pulley (68) on the Front Base stand on the floor, then the bike can be moved easily .
