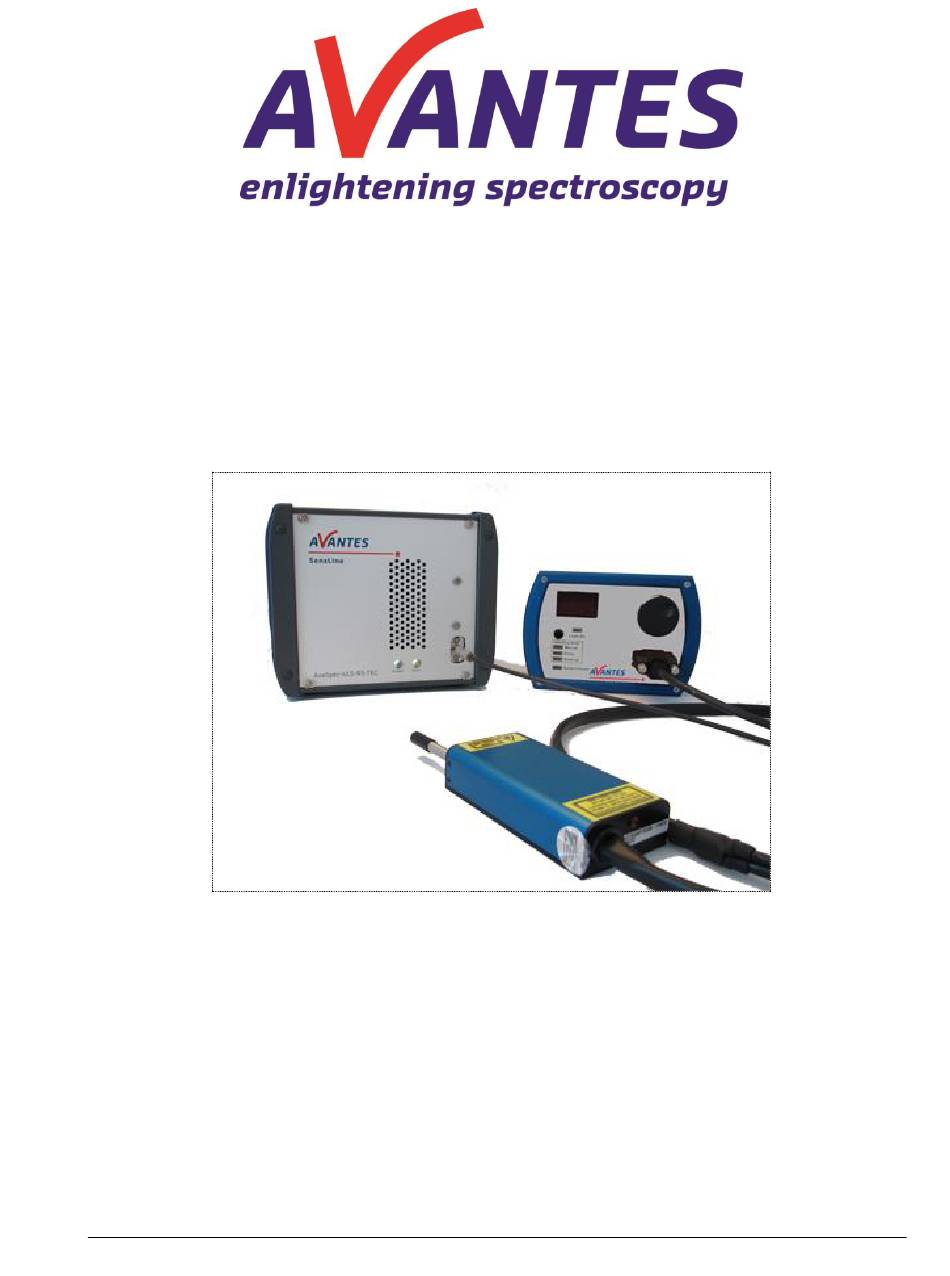

- Page 1 Operation Manual 785nm Integrated Raman Probe 01-04-16 AvaRaman Bundle Manual Avantes www.avantes.com info@avantes.com...
-
Page 2: Table Of Contents
Laser Start-Up (controlling output power via front panel)......4 IIa. Laser Start-Up (External Power Control Mode) ........9 III. Laser Shut Down................. 9 System Specifications ..............10 Warranty ................12 Technical Support Contact Information ..........14 Read Manual Before Use 01-04-16 AvaRaman Bundle Manual Avantes www.avantes.com info@avantes.com... -
Page 3: Product Summary

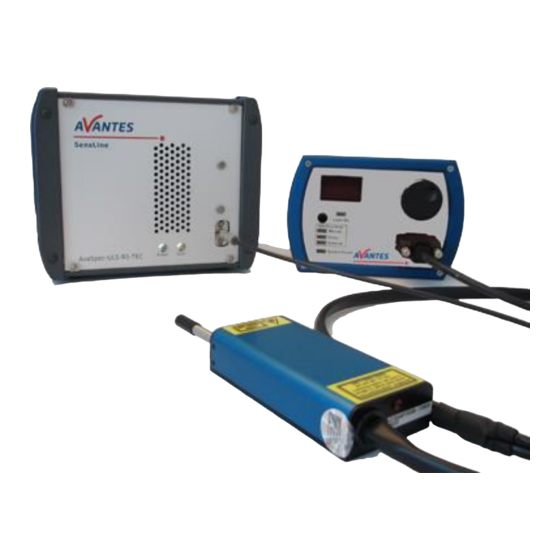

Product Summary The 785nm Integrated Raman Probe includes an integrated wavelength stabilized laser source with Raman filter packs, beam shaping optics and high efficiency Raman spectra collection optics. The laser unit is a Class 3B laser product with laser emission at 785 nm and output power levels exceeding 350 mW. -
Page 4: Laser Safety
Avoid Eye or Skin Exposure to Direct Additional helpful information may be found in ANSI Z136.1 “Standard For Safe Use of Lasers”. This document can be obtained at or Scattered Radiation www.rli.com www.laserinstitute.org 01-04-16 AvaRaman Bundle Manual Avantes www.avantes.com info@avantes.com... -
Page 5: Included Components
Included Components The 785nm Integrated Raman Probe comes complete with an internal 350 mW spectrum stabilized laser module that contains an integral Thermo-Electric Cooler (TEC) and thermistor for monitoring the internal temperature of the laser platform. The unit comes complete with a laser enable switch for safety, an LED... - Page 6 Master Power key is set to the off (Vertical) position. Insert Key in Vertical “Off” position 3. Connect the DB9 I/O cable of the probe into the front panel on the control box and secure with the thumbscrews. Insert DB9 I/O cable 01-04-16 AvaRaman Bundle Manual Avantes www.avantes.com info@avantes.com...
- Page 7 5. If measuring solid samples attach the distance regulator to the tip of the probe shaft. This will reduce the working distance to ~0.5mm, allowing contact measurements. Insert fiber optic cable into SMA 905 Attach bulkhead on your Distance spectrometer Regulator for Solid Samples 01-04-16 AvaRaman Bundle Manual Avantes www.avantes.com info@avantes.com...
- Page 8 7. Place solid sample in contact with the distance regulator, or if using a liquid sample position the sample in front of the probe and adjust the position so that the liquid is ~9mm from the end of the probe shaft (without distance regulator). Point Probe at Sample 01-04-16 AvaRaman Bundle Manual Avantes www.avantes.com info@avantes.com...
- Page 9 Users may reconfigure the RJ-11 connector to provide a closed loop that interactively couples with their system or facility by replacing the short length of wire with longer closed loop connections if desired. RJ-11 Interlock 01-04-16 AvaRaman Bundle Manual Avantes www.avantes.com info@avantes.com...
-
Page 10: Iia. Laser Start-Up (External Power Control Mode)
2. Turn the master power key switch on the back panel counter clockwise from the horizontal “On” position to the vertical “Off” position. 3. Disconnect fiber patch cord and power cables as needed. 01-04-16 AvaRaman Bundle Manual Avantes www.avantes.com info@avantes.com... -
Page 11: System Specifications
System Specifications General Specifications Excitation Integral 785nm wavelength stabilized laser with <0.15nm FWHM bandwidth Collection 1.5m long, proprietary high throughput fiber with FC/PC male connector Cut-on 200cm cut-on Electronic Connection DB9 cable with safety interlock Power Control Manual power adjustment knob, Analog / TLL modulation via BNC connector, or MicroUSB... - Page 12 01-04-16 AvaRaman Bundle Manual Avantes www.avantes.com info@avantes.com...
-
Page 13: Warranty
Opening, modification and or servicing of this unit is expressly prohibited and will result in nullification of product warranty. All necessary service and repair will be made at the Avantes facility upon request of a Return Material Authorization (RMA) request and return of the unit. - Page 14 6. Labeling indicating model #, and Serial # of the unit is located on the back panel above the BNC modulation input port connector. 01-04-16 AvaRaman Bundle Manual Avantes www.avantes.com info@avantes.com...
-
Page 15: Technical Support Contact Information
Date and Location of Manufacture Module Model # and S/N Technical Support Contact Information Questions regarding the use or operation of this product may be directed to: Avantes BV Email: support@avantes.com Phone: +31 313 670 170 01-04-16 AvaRaman Bundle Manual Avantes www.avantes.com...
