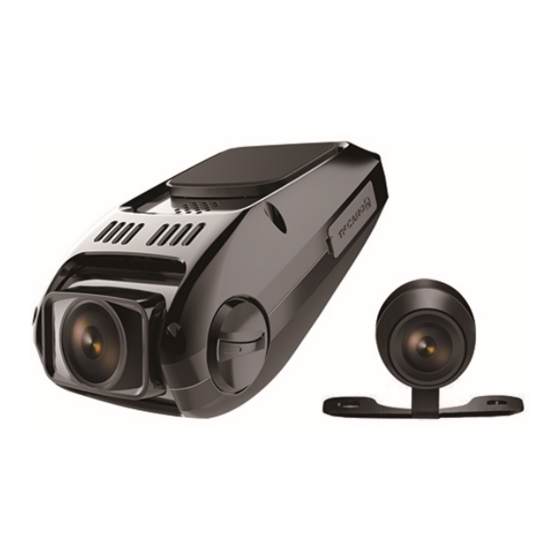

Mini Dash Mount DVR with GPS & 2nd Camera with 7m cable
Before using this unit please read these instructions carefully. Take special care to follow the warnings
indicated on the unit itself as well as the safety suggestions listed below. Keep these instructions for
future reference.
* Please ensure you are familiar and comply with local traffic and driving regulations.
* Power Source - The Mini DVR should be connected to a 12-24 volt dc power supply only.
* Water and Moisture - Do not use the Mini DVR where it may be subject to water ingress or excessive
moisture. Do not use outside the vehicle unprotected.
* Heat - Do not install the Mini DVR near a direct heat sources.
* Ventilation - The Mini DVR should be situated to allow free circulation of air.
* Foreign Material - Care should be taken so that objects do not fall onto or into, and that liquids are
not spilled on the Mini DVR.
* Mounting Surface - The Mini DVR should be mounted to a strong secure surface.
* Replacement Parts - Use only manufacturers replacement specified parts. Unauthorised substitutions
may result in fire risk, electric shock or other hazards and will void the warranty
* Service - The user should not attempt to service this units beyond that described in the operating
instructions. There are no user-serviceable parts within the unit.
* Screen Protective Film - Remove the LCD screen protective plastic cover before use.
* SD Cards - Please format the card before first use. To ensure a good state of health please format the
SD card every 4 weeks. Please ensure all sensitive data is backed up.
12/24VDC
Part 0-776-65
WARNINGS
www.durite.co.uk
0-776-65-LEAF
Advertisement
Table of Contents
Related Manuals for Durite 0-776-65
Summary of Contents for Durite 0-776-65
- Page 1 Mini Dash Mount DVR with GPS & 2nd Camera with 7m cable 12/24VDC Part 0-776-65 WARNINGS Before using this unit please read these instructions carefully. Take special care to follow the warnings indicated on the unit itself as well as the safety suggestions listed below. Keep these instructions for future reference.
- Page 2 BUTTON LAYOUT 0-776-65-LEAF www.durite.co.uk...
- Page 3 - In replay mode and Menu setting it is the Up key. Mic/Down - In Video/Photo mode, turn the Mic on/off. - In replay mode and Menu setting It is the Down key. TF Card Slot - Supports 2GB - 32GB TF Card Class 10 (or above). 0-776-65-LEAF www.durite.co.uk...
- Page 4 Press Up/Down key to select the desired file for playback. Pres OK key to start/stop the video playback, adjust volume by UP or DOWN button while playing the video. Hold DOWN to rewind, UP to fast forward and OK to stop video. 0-776-65-LEAF www.durite.co.uk...
- Page 5 Password Control - Press Menu. Input Password '1234' Using 'Mic' and 'Rec' for up and down. Press middle button for 'OK'. Once you are on the main menu you can scroll down to 'password set' to change the password. Input your desired password and select OK. 0-776-65-LEAF www.durite.co.uk...
- Page 6 Operating Temperature......-10°C to +60°C Operating Humidity........15% to 65% (RH) Max Memory Card Capacity.....32GB (TF Card) Standard Voltage........DC5V/12V Night Viewing Distance......5Metres (with headlights) GPS..............YES G Sensor............YES Current Draw..........0.25A @ 12VDC / 0.13A @ 24VDC USB Cable Included........YES 12/24V Cigarette Cable/Plug Included..YES Certificate............CE 0-776-65-LEAF www.durite.co.uk...
- Page 7 GPS SOFTWARE IMAGE The image below is to show an example of the features available in the software provided with this mini dash mount DVR. The software shows the location of the vehicle via GPS. It also shows the speed and the G Force upon the vehicle as it travels. There are many features within this software to help analyse any journey recorded by the DVR and could be used as evidence in the event of an accident.
