Summary of Contents for Lauda Varioshake VS 60 OI
-

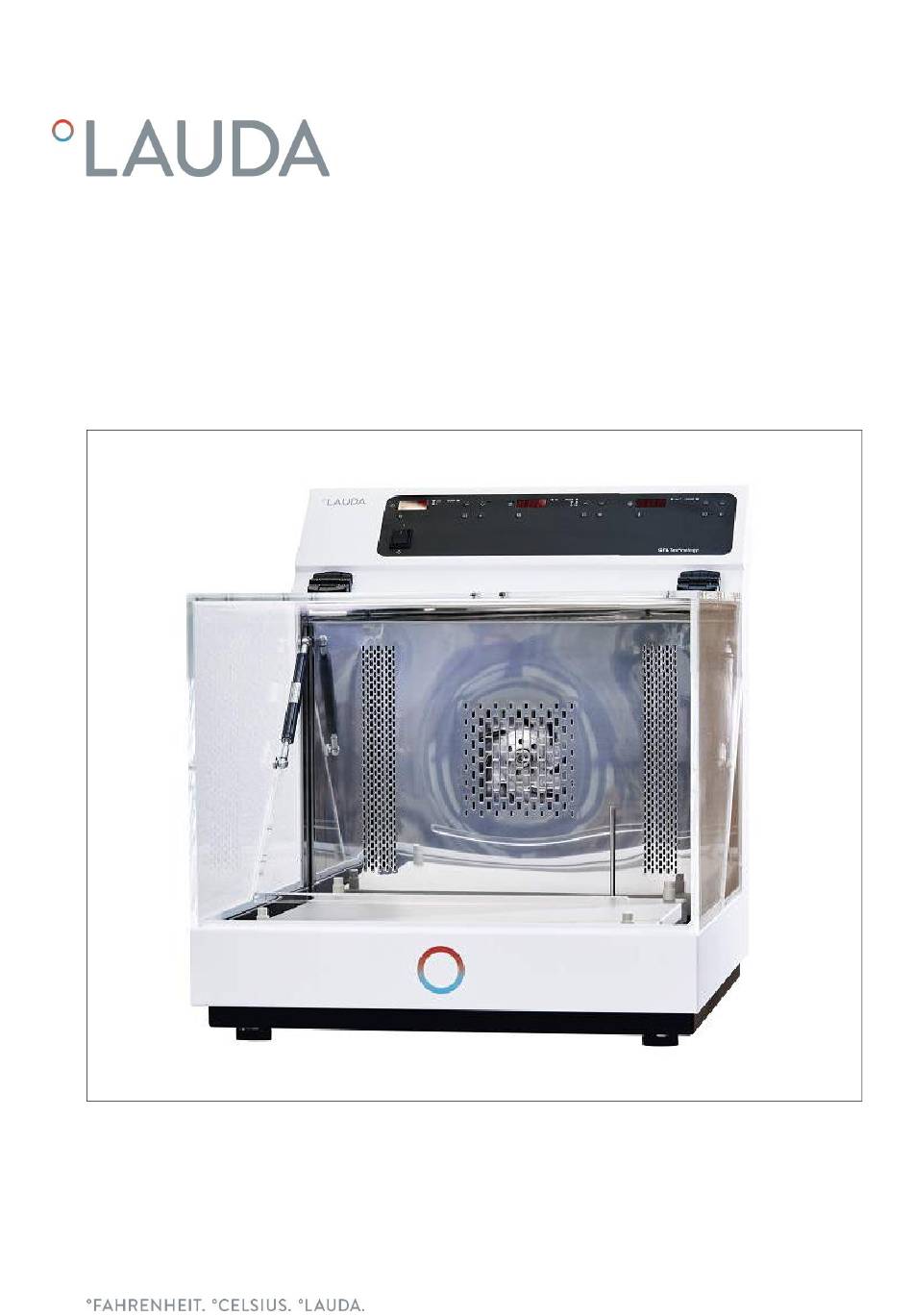

Page 1: Operating Instructions
Operating Instructions Varioshake Shaking Incubator VS 60 OI... - Page 2 2 / 26 Varioshake Shaking Incubator 09/2020...
- Page 3 The Shaking Incubator LAUDA Varioshake VS 60 OI is universally applicable for all tasks in standard and research laborato- ries that require exactly reproducible orbital motions and temperatures and a clear view of the cultures, for example in incu- bations, fermentations, homogenisations, chemical and biochemical reactions, enzyme and tissue studies.
- Page 4 4 / 26 Varioshake Shaking Incubator 09/2020...
-
Page 5: Table Of Contents
Content Operating Instructions ................................... 1 Use of the Shaking Incubator................................ 7 Intended Use ..................................7 Improper Use ..................................7 Warranty ......................................7 Before installation ..................................7 Transport, Assembly and Location of the Shaking Incubator ....................8 Operating Voltage ..................................8 Inbetriebnahme .................................... - Page 6 6 / 26 Varioshake Shaking Incubator 09/2020...
-
Page 7: Use Of The Shaking Incubator
For all laboratory apparatus and their accessories from LAUDA-GFL Gesellschaft für Labortechnik mbH, there is a war- ranty claim, as well for spare parts, repairs and modifications, carried out by LAUDA-GFL. In order to identify defective units, we require both model and serial number on the nameplate of the Shaking Incubator and, if applicable, a copy of the invoice. -
Page 8: Transport, Assembly And Location Of The Shaking Incubator
Transport, Assembly and Location of the Shaking Incubator Provide suitable transport means to transport the unit to the location. Doors, lifts and hallways/ corridors to the location must permit safe transport. Caution: the Shaking Incubator weighs 51 kg. Lift and carry the unit with at least two persons when transporting it to the location. -
Page 9: Operation
Operation After switching on the main switch the fan motor starts. Incubation time, incubation temperature and shaking frequency must be set and activated individu- ally. The shaking motion and the heating can only be initiated when the cover is closed and will be cut off when the cover is opened. -
Page 10: Incubation Time
Operation panel temperature controller Display for set and actual temperatures Pilot lamp "actual temperature" in the display Pilot lamp difference value of over-temperature alarm in the display Pilot lamp set temperature in the display Change-over key between display and entry of higher set points Entry of lower set points Key to switch off alarm signal Pilot lamp difference value of under-temperature alarm in the display... -
Page 11: Incubation Temperature
6.3.2 Incubation temperature The microprocessor-controlled PID-type regulation permits quick availability of the set temperature, at the same provid- ing a high temporal temperature constancy of +/- 0.2 K. Display as well as setting the temperature is done digitally on an LED display, in 0.1 K increments. -
Page 12: Rc Operation Via Pc
When opening the Shaking Incubator's cover, a control switch will cut off both heating and shaking device. After closing the cover, the Incubator will restart operation with the set values of temperature and shaking frequency. Caution: only after the shaking platform has come to a complete stop, the cover may be opened to reach into the unit. -
Page 13: Temperature Cut-Out
Temperature Cut-out As an additional safety precaution to over-temperature and under-temperature alarms, a thermostatic temperature cut- out protects the unit against overheating. If either temperature regulator or fan motor should fail, the thermostatic over- temperature cut-out will prevent overheating of the incubator. Only after the unit has cooled down, the temperature cut- out, which is situated at the back of the Incubator, can be deblocked. -
Page 14: Temperature Adjustment
Temperature Adjustment LAUDA Varioshake Shaking Incubators are set and adjusted at a temperature of 45 °C. Instructions for adjustment of the temperature regulator are available on request for adjustment purposes during maintenance. Please state model and serial numbers of the Shaking Incubator. -
Page 15: Disposal Of Old Units
LAUDA-GFL will take responsibility, within the scope of the legal directives, for an environmentally sound handling and disposal of all used LAUDA-GFL units as of the production year 1995 that are returned to us free of charge and will have it materially recycled. -
Page 16: Technical Data
Technical Data Varioshake Shaking Incubator VS 60 OI Exterior dimensions (W x D x H) 560 mm x 690 mm x 630 mm Interior dimensions (W x D x H) 450 mm x 450 mm x 360 mm Volume / Capacity Approx. -
Page 17: Circuit Diagram
Circuit Diagram Electronic control power board Electronic control timer Electronic control temperature regulator Electronic control shaking frequency Pulse generator Interface inlet RS 232 Line filter Temperature sensor PT100 Motor condenser Tubular heating element Fuse 4 A T Fuse 4 A T Temperature limiter Fan motor Drive motor... -
Page 18: Varioshake Shaking Incubator Vs 60 Oi
Varioshake Shaking Incubator VS 60 OI 18 / 26 Varioshake Shaking Incubator 09/2020... -
Page 19: Connection To The Mains Supply
Connection to the mains supply LAUDA Varioshake Shaking Incubators are supplied with a pre-assembled, cast-on shock-proof plug (CEE 7/7). Make sure to connect to a protective conductor terminal. Colour decoding Stromnetz PE (Protective earth) ge/gr – yellow/green bl – blue sw –... -
Page 20: List Of Spare Parts
List of spare parts Varioshake Shaking Incubator VS 60 OI Pos. No. Part-No. Article 0012268 Heating element 230 V 500 W 0012430 Micro switch 0012843 Triac Gas pressure spring 0015533 Pivot shaft 0026283 Angular ball bearing 0015522 Ball bearing seat A000097 Pulse generator 0014315... - Page 21 When ordering spare parts, please always state type and serial number oft he unit in question. 09/2020 Varioshake Shaking Incubator 21 / 26...
-
Page 22: Accessories
Accessories Shaking Tray with holes to fix clamps for Erlenmeyer flasks and test tube rack A000059 Part-No. A000045 made of stainless steel Test Tube Rack, seat for test tubes can be tilted by 90 ° for easy load- ing, with springs for firm hold and silent shaking of the tubes. Supplied complete with fixing material, to be screwed on to a shaking tray. - Page 23 Adhesive mat, black. Strong adhesive special mat for easy attachment of different vessels onto the shaking platform or tray. Max. shaking speed: up to 250 min (depending on shape and weight of the vessel as well as on the shaking amplitude). Dimensions: 200 mm x 200 mm, the mat can be cut or trimmed with scissors.
- Page 24 24 / 26 Varioshake Shaking Incubator 09/2020...
- Page 25 09/2020 Varioshake Shaking Incubator 25 / 26...
- Page 26 LAUDA-GFL Gesellschaft für Labortechnik mbH Schulze-Delitzsch-Straße 4+5 ◦ 30938 Burgwedel ◦ Germany Tel.: +49 (0) 5139 9958-0 ◦ Fax +49 (0) 5139 9958-21 E-Mail: info@lauda-gfl.de ◦ Internet: www.GFL.de...
