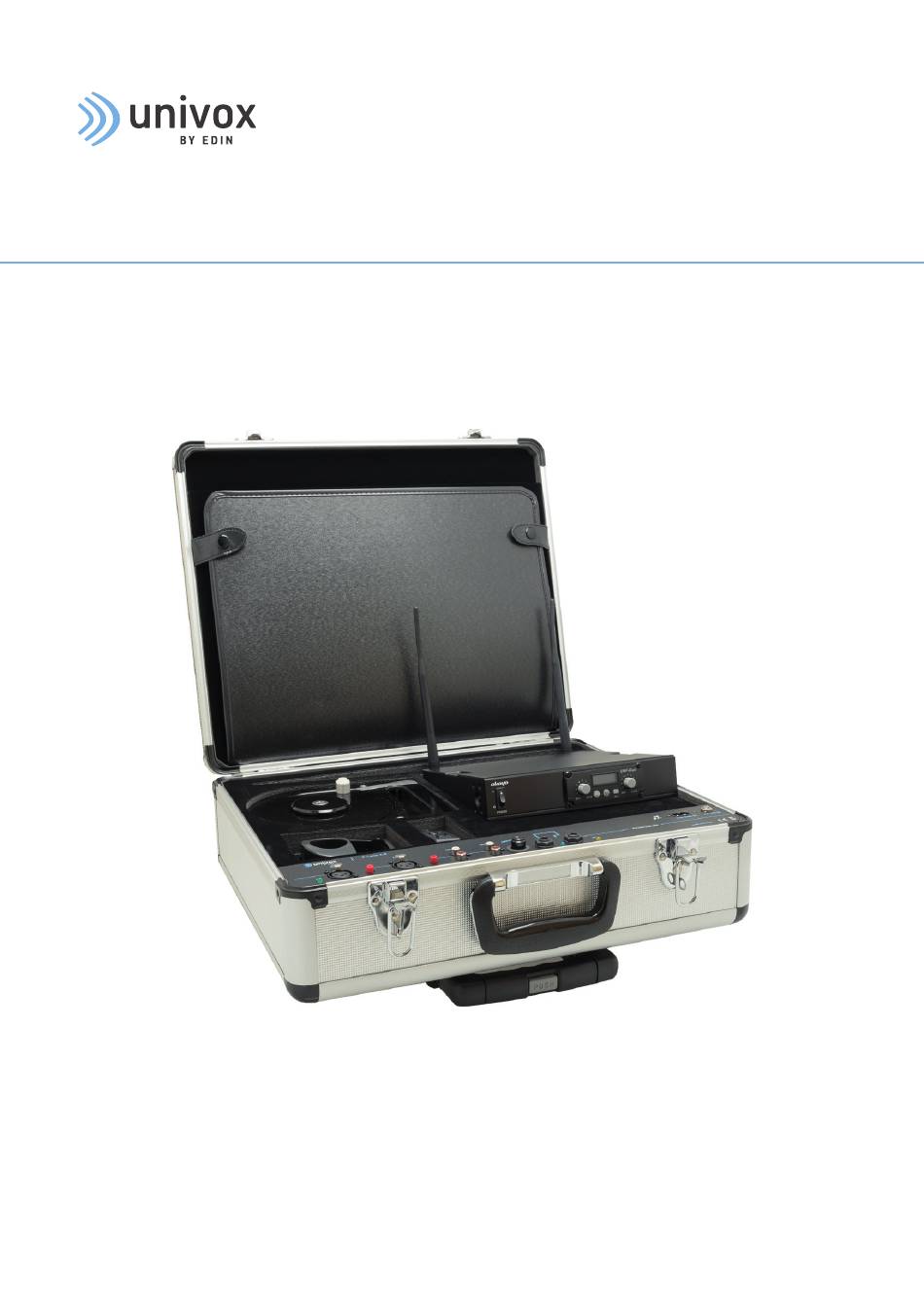

- Page 1 Univox® P-Loop 2.0 Portable loop case for up to 150 m² User Guide Univox® P-Loop 2.0 Part no 212031...
-
Page 2: Table Of Contents
Content Introduction ............................... 3 Included in the package ........................3 System overview ............................4 Installation and use ..........................4 Setting up the loop ........................... 4 One turn loop ............................4 Figure 8 loop ............................4 Connecting mains power ......................... 5 Connecting signal source(s) ...................... -
Page 3: Introduction

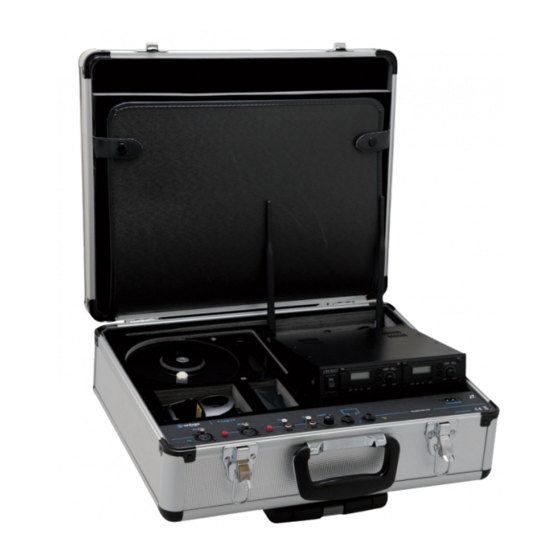

All Univox® amplifiers have a very high output current capability resulting in powerful and secure products fulfilling existing standards, IEC 60118-4. Univox P-Loop 2.0 portable loop case contains a complete portable loop system with a built-in amplifier with a 35 m loop cable on a dispenser and accessories depending on which loop solution you have chosen. -
Page 4: System Overview
System overview P-Loop 2.0 Line Line 110-240V AC 12-24V DC PUSH PUSH Portable loop case www.univox.eu In – Green LED level in XLR Mic/Line Loop cable connection 6.35 mm Mic – balanced XLR, 9-21 VDC phantom power Blue LED loop current indication Line –... -
Page 5: Connecting Mains Power
Connecting mains power Connect the mains cable to the socket marked 110-240 VAC (11) on the amplifier and to the power outlet. If correctly connected the yellow LED (10) will light up. If P-Loop 2.0 is used in an environment with a DC voltage source (eg 24 VDC on board a bus), the voltage source should instead be connected to the amplifier’s 12-24 VDC voltage input (12) with the included DC adapter. -
Page 6: Adjusting Input Sensitivity
Adjusting input sensitivity Set all adjustments to the minimum position (counter-clockwise). Make sure that all connected audio sources except for the one being adjusted are turned off. Turn the signal source on. If you are adjusting a microphone, make sure that someone is speaking into it. If another type of source is being adjusted, make sure that program material is playing. -
Page 7: Adjustment Of Loop Current Level
Adjusting loop current level Adjust the loop current level with the knob marked (6). The blue LED indicator (9) indicates when the loop is transmitting. Use the testing device Univox® Listener (included) to adjust the loop current level. Please consult the included user guide for instructions on how to use the device. Acoustic amplification with an active speaker In rooms without a loudspeaker system, it may be advisable to use a portable, active speaker with built in wireless receivers to also acoustically enhance the sound. -
Page 8: Troubleshooting
Troubleshooting Symptoms Possible cause Solution Yellow LED ”On” does not light up The power cord is not correctly Ensure correct connection in the connected P-Loop and in the wall socket The power cord is damaged Replace the power cord immediately The built-in PSU is damaged Contact the point of sale for repair Green LED In lights up, but blue... -
Page 9: Safety And Warranty
If a warranty claim is approved, repair or replacement is performed (Bo Edin AB decides which) at no cost to the buyer. Bo Edin AB shall not be held liable for interference in radio or TV equipment, and/or for direct, unintentional or subsequent damage or loss to any person or unit, if the equipment has been installed by unqualified and/or unauthorized personnel and/or if installation instructions in the product installation guide have not been strictly followed. -
Page 10: Technical Data
For additional information, please refer to product data sheet/brochure and CE certificate which can be downloaded from www.univox.eu, Downloads. If required other technical documents can be ordered from support@edin.se. Environment To prevent possible harm to the environment and human health, please dispose of the... -
Page 11: Measuring Devices
Measuring devices Univox® FSM Basic, field strength meter Instrument for professional measurement and control of loop systems according to IEC 60118-4 Part no 401014 Univox® Listener Loop receiver for fast and simple check of the sound quality and basic level control of the loop. Part no 230450/230453... - Page 12 Distributor Univox by edin, the world’s leading expert and producer of high quality hearing loop systems, created the very first true loop amplifier 1969. Ever since our mission is to serve the hearing community with the highest degree of service and performance with strong focus on Research and Development for new technical solutions.
