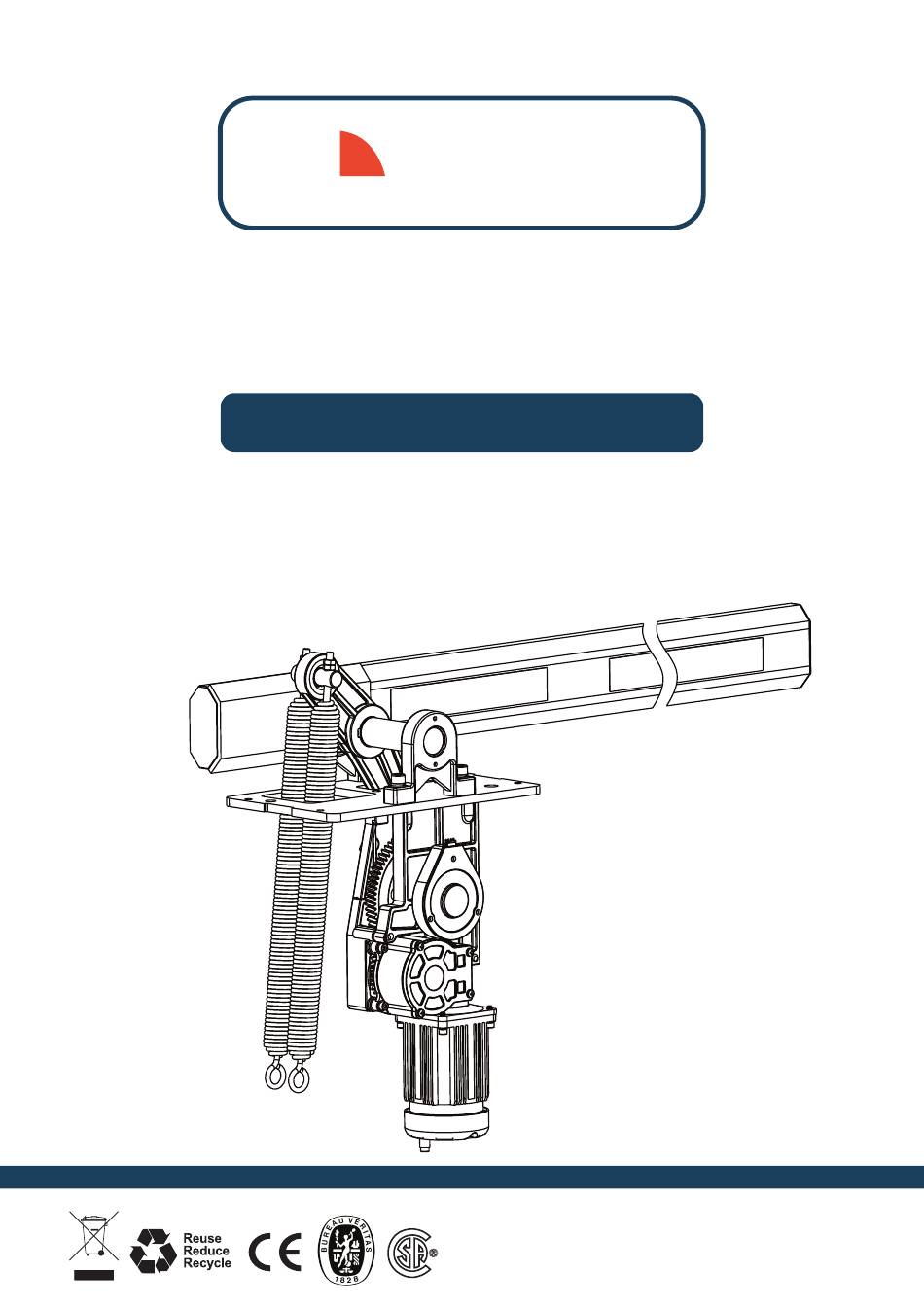

  • Page 1 BLANCO Demeter / Cyble ULTRA ROAD BARRIER FAST INSTALLATION MANUAL www.blancoautomation.com...
  • Page 2 NEVER perform operating or setting without the boom installed. This WILL result in severe injury. NEVER dismount the boom when barrier is at close status with spring attached. This WILL result in sever injury, even death. DO NOT replace the original wire. SAVE THESE INSTRUCTIONS. BLANCO Greek Gods are at your command...
  • Page 3 1. Direction Definition and Main Components of the Machine A.Close to Right B.Close to Left Fig.1 C.Main Components of the Motor Fig.2 Boom Boom Holder Bearing Holder Base Plate Balance Armr Optical Encoder Limits Spring Motor Manual Release Handle BLANCO Greek Gods are at your command...
  • Page 4: Specification

    D. Product contains multiple limit protection functions to keep a long life time. 3. Specification Rated Power 240W 220V±10% 50/60Hz Power Supply 110V±10% 50/60Hz Working Temperature -35℃~+50℃ 6m (6s) Max. Boom Length with 4m (3s) Operating Speed 3m (1.5s) BLANCO Greek Gods are at your command...
  • Page 5: Cabinet Installation

    Move the cabinet back to the desired position and place the Fixed Bars on the bottom of the cainet inside. Tighten the Expansion Bolts. Fig.3 Fixed bars Cabinet Expansion bolts (4-M14) Ground Concrete Fixed bars BLANCO Greek Gods are at your command...
  • Page 6: Boom Installation

    Fig.4 Loosen the screws Move the springs away from springs support 4.2.2 Using the Manual Release Handle to steer the Boom holder to horizontal position. Fig.5 Boom Holder Boom Holder Manual Release Handle BLANCO Greek Gods are at your command...
  • Page 7 4.2.4 Fix the Boom Support on the ground. Adjust the height as the Rubber pad touches the boom when the boom is at horizontal position. (Fig. 7) Fig.7 Rubber pad Adjust height Boom support BLANCO Greek Gods are at your command...
  • Page 8: Spring Adjustment

    Quantity of spring Spring Size Boom Length x≤3m Φ4 3m<x≤4m Φ5 Φ5 4m<x≤5m 5m<x≤6m Φ5+Φ6 5.2 Spring Adjustment 5.2.1 Remove the screws on the Cabinet hat, and remove the hat. (Fig. 8) Fig.8 Loosen screws BLANCO Greek Gods are at your command...
  • Page 9 Loosen the nut counter-clockwise if the weight decreased. When adjusting, all nuts should be turned at the same cycles, in order to avoid the unevenly distributed loads. (Fig. 9) Fig.9 Spring Nut For weight decread BLANCO Greek Gods are at your command...
  • Page 10 Close Status, the Spring Nut should be tightened or increase the number of springs. (Fig. 10) Tighten the Upper and Lower Linkage nuts after the adjustment. Fig.10 Spring Nut Upper Linkage nut Linkage Lower Linkage nut Adjusting Insert Manual Release Handle BLANCO Greek Gods are at your command...
  • Page 11 B. During power outage, turn the Manual Release towards Open Status to open the Automatic Boom Barrier. (Fig. 11) Fig.11 Close Open Fig.15 Close Status Open Status Linkage Nuts Adjustable Linkage Main Linkage BLANCO Greek Gods are at your command...
  • Page 12: Control Board Diagram

    Motor Blue Wire Green Light Red Light External Power V- External Power V+ LED- LED+ Blue White Black Brown Optical Counter Red Wire Open Limit Yellow Wire Close Limit Green Wire Optical Counter Blue Wire BLANCO Greek Gods are at your command...
  • Page 13 For easy understanding,we assume the value of “P1 ” and “ P2” with “ 6” on the Control Board means the boom at vertical and horizontal position. Fig.14 shows the boom status with the displaying value on the Control Board. BLANCO Greek Gods are at your command...
  • Page 14 Before adjusting, open and close the boom once to see whether the boom is vertical and hori- zontal to the ground. If so, no adjustment is needed. Otherwise, follow the steps below to set the value of P1 and P2. BLANCO Greek Gods are at your command...
  • Page 15 Warning! Resetting should be operated by a qualified person. Power on Default displevy Press and hold “Set” Press “Open” or “Close” to Display “P1”or“P2” switch between “P1”&“P2” Press “Set” Display corresponding value Press “Open” or “Close” to adjust value Press “Stop” BLANCO Greek Gods are at your command...
  • Page 16: Function Parameters

    01: N.C. Alarm or Light. 01: Light (Default) 00: Alarm. 9.2 Timer Definition Year Month Hour Minute Second Light-on Hour. Default: 18 Light-on Minute. Default: 00 Light-out Hour. Default: 06 Light-out Minute. Default: 00 BLANCO Greek Gods are at your command...
  • Page 17 Display “77” Press “Open” or “Close” to change value Display “77” or “81” Press “Set” “79” : Function “81” : Timer Parameter Parameter Press “Open” or “Close” to change corresponding value Press “Stop” BLANCO Greek Gods are at your command...
  • Page 18: Error Codes

    Err3 Motor Locked Rotor 2.Check Motor Wires Connectors Photocell is Triggered Remove the Object that Blocks the Photo Beam Err7 Err8 Air Wave Sensor Triggered Remove the Object that Block the Air Wave BLANCO Greek Gods are at your command...
  • Page 19: Troubleshooting

    Incorrect Limits setting. Reset. The Lock Flat Key between Boom shakes at Open Limit Boom Main Shaft and Change the Lock Flat Key. and Close Limit. Boom Holder is loose. BLANCO Greek Gods are at your command...
  • Page 20 BLANCO...
