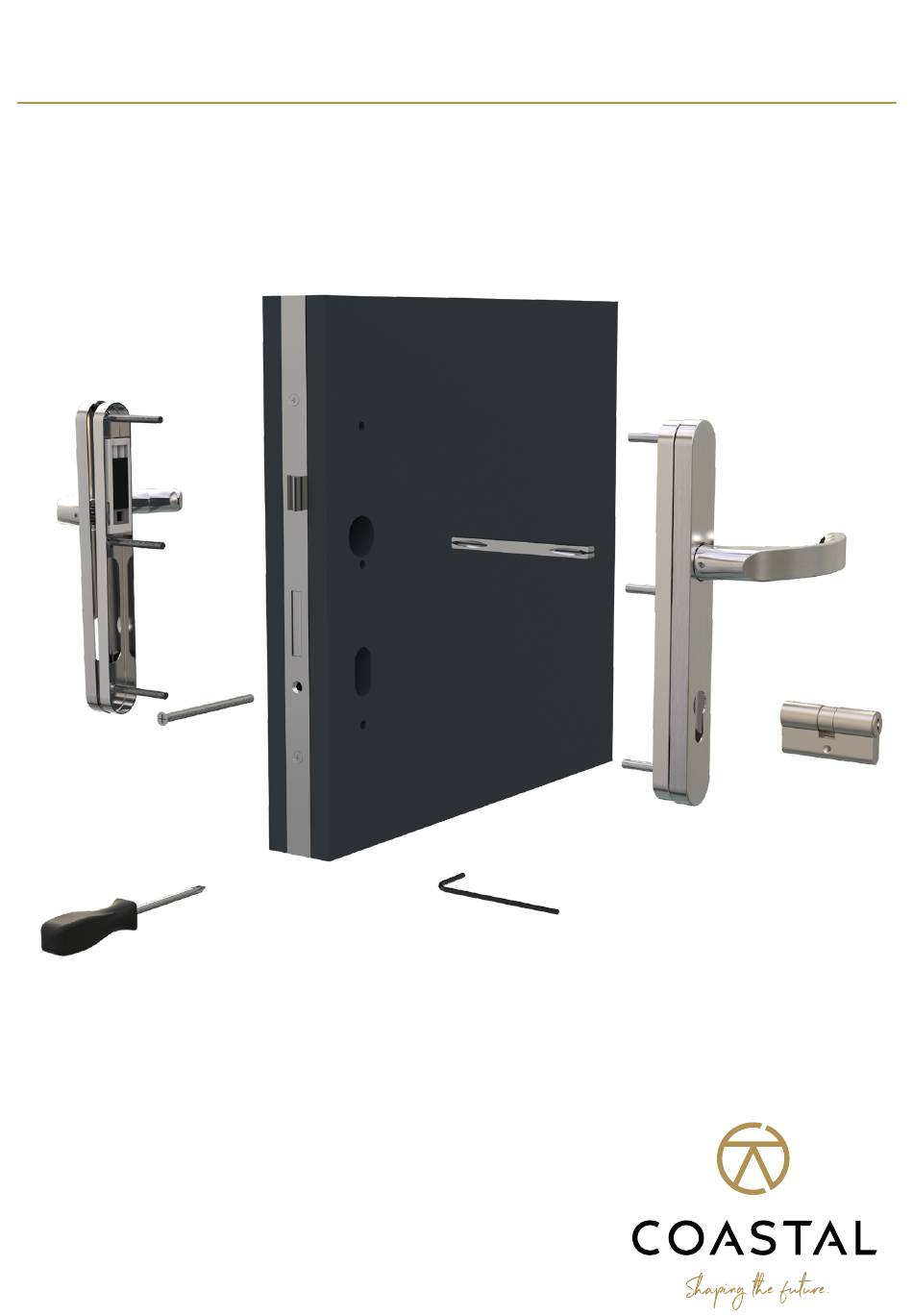

- Page 1 FITTING INSTRUCTIONS KM078 & KM130 LEVER DOOR HANDLE ON BACKPLATE LIT-FI-KM078/KM130 Page 1 of 6 01726 871 025 sales@coastal-group.com coastal-group.com...
- Page 2 FITTING INSTRUCTIONS LIT-FI-KM078/KM130 Page 2 of 6 KM078 & KM130 LEVER DOOR HANDLE ON BACKPLATE Insert spindle Drill out for spindle, through spindle euro cylinder hole. and handle fixing points. Dimensions shown in mm. Ensure spindle is equally positioned with same length...
- Page 3 FITTING INSTRUCTIONS LIT-FI-KM078/KM130 Page 3 of 6 KM078 & KM130 LEVER DOOR HANDLE ON BACKPLATE Affix internal lever/ backplate onto spindle. Insert fixing screws x3 through internal backplate fixing Insert Bolt Receiver holes and into x3 into external Bolt Receivers and...
- Page 4 FITTING INSTRUCTIONS LIT-FI-KM078/KM130 Page 4 of 6 KM078 & KM130 LEVER DOOR HANDLE ON BACKPLATE Loosely tighten the cylinder screw into the lock faceplate. Insert euro cylinder into lock. DO NOT tighten the screw at this stage. Push cover plate of internal &...
- Page 5 FITTING INSTRUCTIONS LIT-FI-KM078/KM130 Page 5 of 6 KM078 & KM130 LEVER DOOR HANDLE ON BACKPLATE Tighten grub screw on inner lever. Hand tighten cylinder screw. Check lever returns DO NOT to correct original position. If it overtighten. doesn’t then loosen DO NOT use a power tool.
- Page 6 FITTING INSTRUCTIONS LIT-FI-KM078/KM130 Page 6 of 6 KM078 & KM130 LEVER DOOR HANDLE ON BACKPLATE DO NOT use abrasive materials, files or other hard objects against the product surface. This product should be protected from dust and dirt during any construction work.
