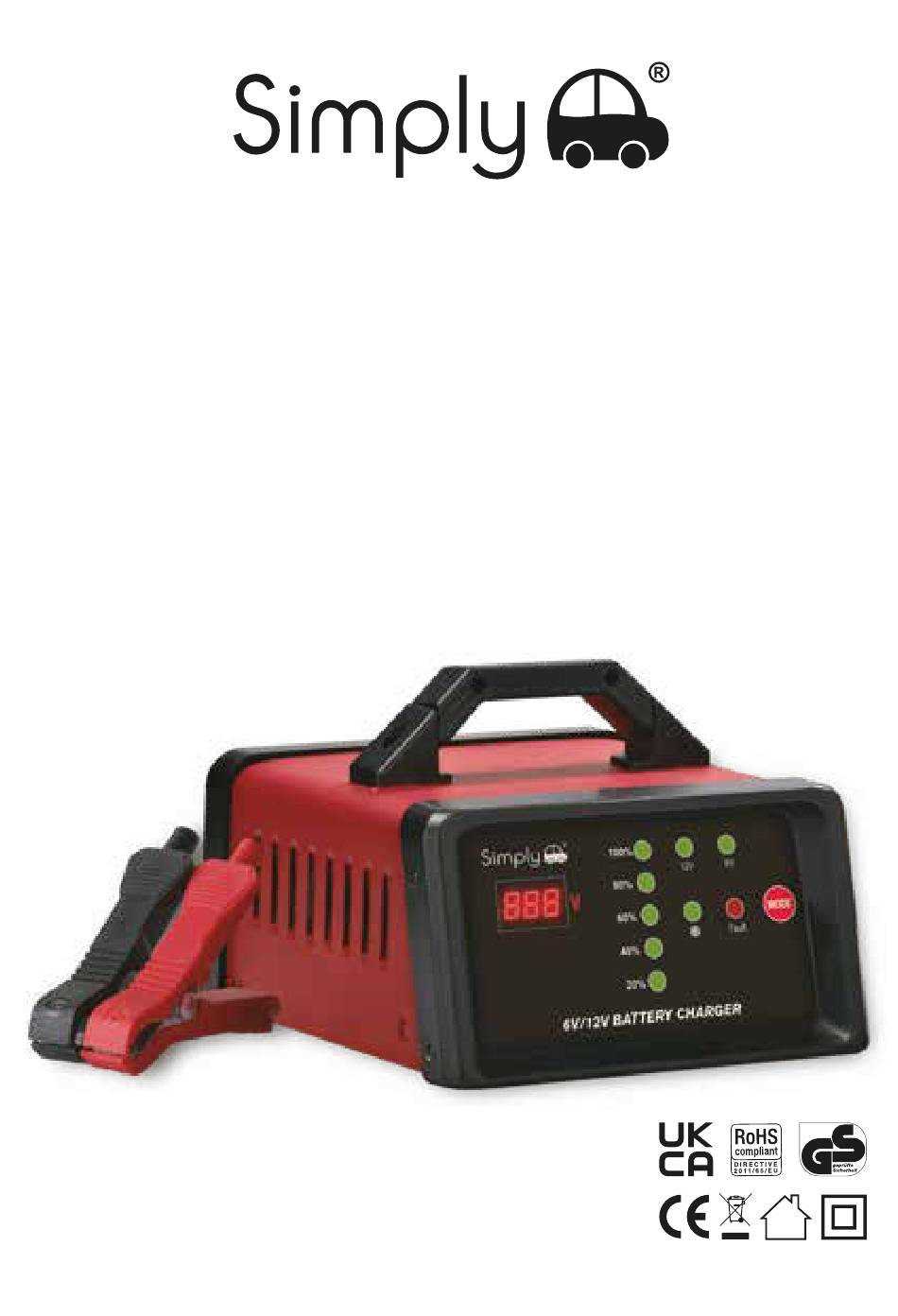

- Page 1 2A/5A 6V/12V AUTOMATIC BATTERY CHARGER INSTRUCTION MANUAL BTC-6005 Please read before use Save this manual for future reference...
-
Page 2: Safety Guidelines - Definitions
There are certain applications for which tools and equipment are designed. Simply Auto strongly recommends that this products NOT be modified and/or used for any application other than for which it was designed. Read and understand all warning and operating instructions before using any tool or equipment. - Page 3 • Do not set the charger on flammable materials, such as carpeting, upholstery, paper, cardboard, etc. • Never smoke or allow sparks or flames in the vicinity of the battery or engine. WARNING: RISK OF EXPLOSIVE GAS. • Operate the charger as far away from the battery as DC charger cables permit. •...
- Page 4 5. Study all battery manufacturer’s specific precautions, such as removing or not removing cell caps while charging, and recommended rates of charge. 6. Remove battery completely from boat/airplane or any confined area before charging. Area around battery should be well ventilated while battery is being charged. Do not operate while an enclosed area.
- Page 5 to vehicle chassis or engine block away from battery. Do not connect clip to carburetor, fuel lines, or sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block. 7. When disconnecting charger, disconnect AC cord, remove clamp from vehicle chassis, and then remove clamp from battery terminal.
- Page 6 Battery Charger and Components LED Display AC Wall Charger 6V/12V Voltage Indicator Charging Indicator Voltage Select Button Connecting Clamps Winter Fault Indicator Mode Indicator OPERATING INSTRUCTIONS IMPORTANT: ALWAYS disconnect the AC power cord from AC power outlet before connecting (or disconnecting) the charger to (or from) the battery. Connecting the Charger and Charging the Battery with Battery Clamps The charger’s output leads have color-coded battery clamps (RED-POSITIVE and BLACK-NEGATIVE).
-
Page 7: Charging Instructions
CHARGING INSTRUCTIONS 1.Connect the battery charger to the mains power(230V AC): Connecting 230V AC power supply,theLED display will show in a loop.If the output is in a short-circuit situation, the LED will indicate trouble code,please solve the problem. 2.Connecting the battery charger to your Battery Check battery type and voltage according to battery manual,and choose right voltage and current by selector.Connect the red clamp from the charger to the positive(+)battery terminal.The Black clamp from the charger to the negative(-)battery terminal.(The trouble... - Page 8 Reason Possible solutions Power On/Off Problem • Check that the charger is properly connected to a live AC Outlet. • Check that the correct battery selection setting has been selected for the battery being charged. Power Off Unit not charging, Screen indicates •...
-
Page 9: Maintenance And Care
BATTERY CONNECTION If the charger does not connected properly, charging will not start, Make sure the charger is connected to the battery and the connection points are clean and making a good connection or make sure no reverse connections at the battery. CHARGING COMPLETION Charge completion is indicated by the charging status indicator turning on ( LED indicator shows fully charged state) . -
Page 10: Specifications Parameters
• When replacing old appliances with new ones,the retailer is legally obligated to take back your old appliance for disposals at least free of charge. Part of Simply Brands simply-brands.com...
