- Page 1 U P S Uninterruptible Power System Line-Interactive Rack-Mount Network UPS 600VA/ 1000VA/ 1200VA 1500VA/ 2200VA/ 3000VA ■ ■ ■ ■ USER‘S MANUAL ■ ■ ■ ■...
-
Page 2: Table Of Contents
ABLE OF CONTENTS … … … … … … … … … … … … … … … … … … … … … … … … … … . . i N T R O D U C T I O N 1. -
Page 3: Important Safety Instructions
1. I MPORTANT SAVE THESE INSTRUCTIONS ● should be Followed during Installation and Maintenance of the UPS and Batteries. ● Intend for Installation in a Controlled Environment. ● Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions. -
Page 4: Presentation

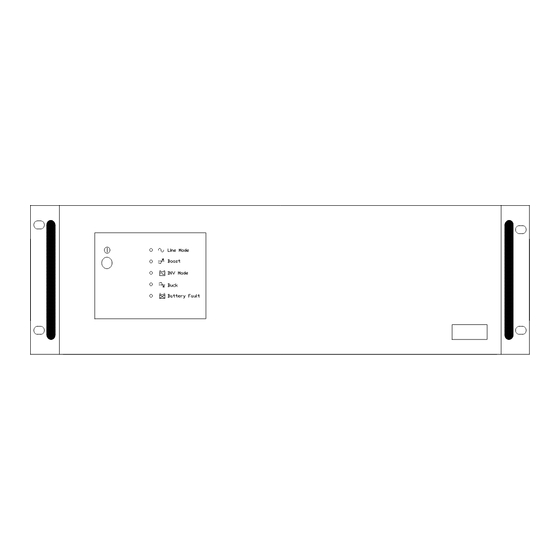

2. P RESENTATION Front Panel (600VA/ 1000VA), 1U size Front Panel (1200VA/ 1500VA), 2U size Front Panel (2200VA/ 3000VA), 3U size... - Page 5 Back Panel (600VA/ 1000VA), 1U size Back Panel (1200VA/ 1500VA), 2U SIZE (1500VA/110V NO BYPASS OUTPUT)
- Page 6 Back Panel (2200VA), 3U SIZE Back Panel (3000VA), 3U SIZE...
- Page 7 2.1 “Power On” Indicator Power On indicator illuminates when utility power’s condition is normal. 2.2 “ BACKUP ” indicator The indicator illuminates when the power is supplied from the batteries. 2.3 “Battery Fault ” Indicator This illuminates indicating weak battery. Recharge the battery for at least four hours. If after recharging this still illuminates, replace the battery by following the instructions in the manual.(You can plug out then check battery) 2.4 Power Switch...
-
Page 8: Installation
3. I NSTALLATION Inspect the UPS upon receipt. The packaging is recyclable; keep it for reuse or disposed of properly. 3.1 Recharge the battery UPS may be used by anyone immediately upon receipt. The battery is fully charged before shipped from the factory. However, user is recommended to recharge the battery at least eight hours before using UPS. - Page 9 3.12 Installation with accessories of “Rack-mount” types: Please install the rack-mount type units according to the following illustration. I n s t a l l a t i o n wi t h b o t t o m p l a t e . P a r t R MB - 0 5 1 S E T.
- Page 10 I n s t a l l a t i o n wi t h b o t t o m p l a t e . P a r t R MB - 0 8 ( 1 U ) , - 0 9 ( 2 U ) , - 1 0 ( 3 U ) , - 1 1 ( 4 U ) 2 P C S .
-
Page 11: Operation
4. O PERATION 4.1 Simple test It is recommended that the user perform a simulation test when using UPS for the first time or when adding an additional piece of equipment. Conduct a simulation-test: first, switch on UPS and wait for the power indicator to light up, then simply unplug UPS to simulate the event of utility failure. -
Page 12: Software And Computer Interface
5. S OFTWARE AND 5.1 Power Monitoring Software The UPSMON series software (or other power monitoring software) is applied standard RS-232 interface to perform monitoring functions, and then provides an orderly shutdown of a computer in the event of power failure. Moreover, UPSMON displays all the diagnostic symptoms on monitor, such as Voltage, Frequency, Battery level and so on. -
Page 13: Battery Cabinet
6. B ATTERY 6.1 Battery’s life of UPS The battery’s life of UPS is about 3-6 years under normal usage. 6.2 Battery Replacement Once the UPS’s battery is no longer useful and must be replaced. Please call the service personnel to replace it. PPENDIX A UPS has a self-protect feature that prevents the UPS from being damaged as a result of overheating. -
Page 14: Appendix B Specifications
PPENDIX B MO D E L I N P U T C a p a c i t y ( U P S o u t l e t s ) ( B y p a s s o u t l e t s ) V o l t a g e F r e q u e n c y O U TP U T... - Page 15 P H YS I C A L N e t W e i g h t K g ( l b s ) S h i p p i n g W e i g h t K g ( l b s ) D i m e n s i o n ( m m ) W * D * H A L A R M...
