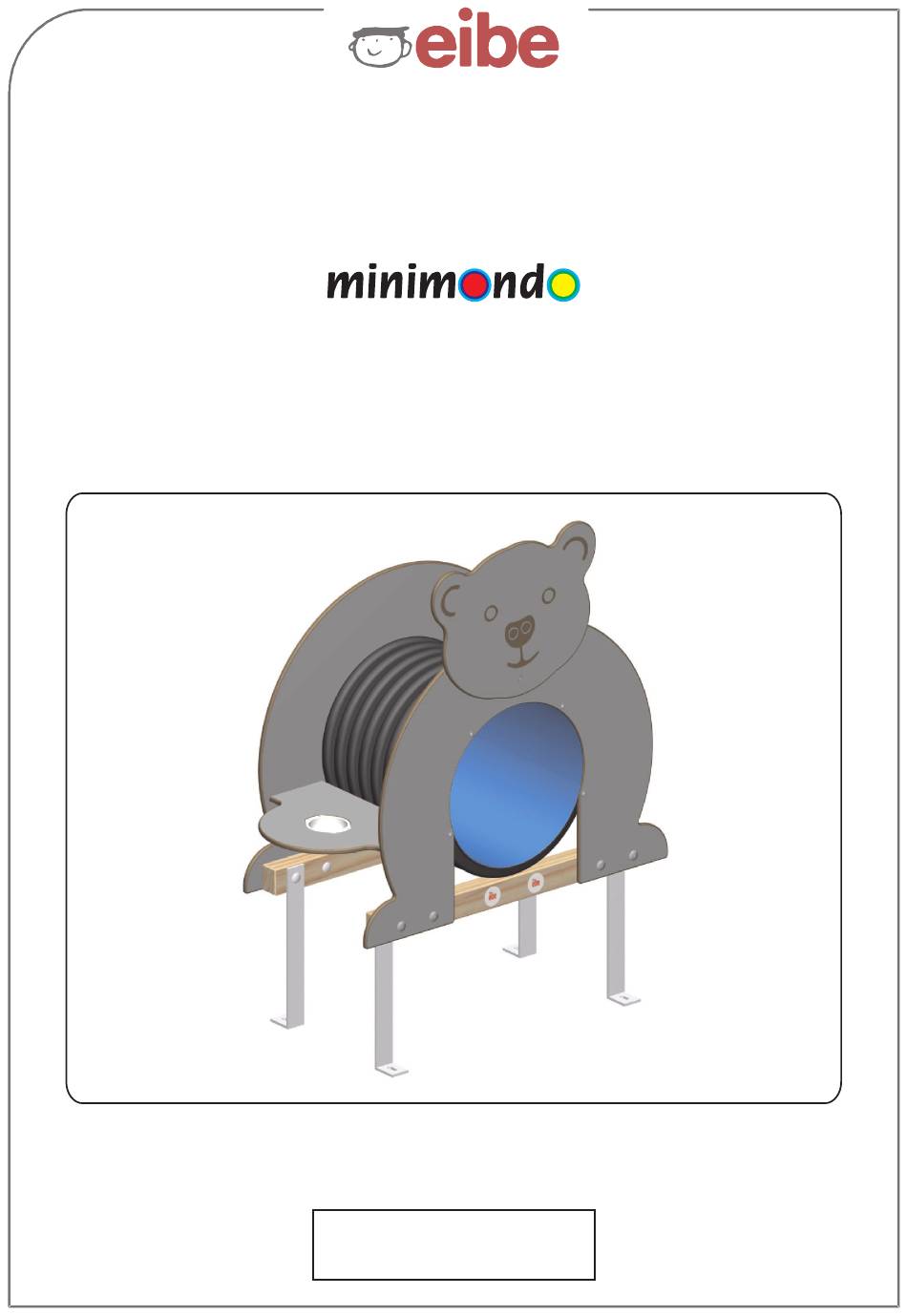

- Page 1 Article pass / Guarantee certificate Scope of delivery • Ground work • Assembly • Maintenance 5 59 818 5 Bear tunnel Attention: Guarantee Keep these documents in a safe place. Please indicate the workshop order number (RM-Nummer) in all inquiries and complaints. RM-Nummer: No: UK-1707-V-06-ra...
-
Page 2: Certificate Of Warranty
µ grants the following warranty periods: The present information reflects the status as valid at the time this document was issued. For updated information, please see our website www.eibe.de • 10 years on all pressure-impregnated timber for all cases of decay and fungo attacks •... - Page 3 If the mounting site provides conditions that every year. are out of the ordinary, e.g. peaty soil or eibe resistant playground timber (rpt) is frozen ground, such conditions absolutely treated with a protective oil based surface have to be taken into account.
- Page 4 O render daily checking necessary. In the operative inspection, eibe specifies how often • Are all metal parts well connected and not which areas must be inspected on this piece of...
- Page 5 5 59 818 5 Bei Bedarf verwenden If required use it Indien nodig Su richiesta En cas de besoins Szükség esetén Según necesidad Quando necessário 0,00 m 0,50 m 1,00 m 1,50 m 2,00 m 2,50 m 3,00 m 3,50 m 4,00 m 4,50 m 5,00 m...
- Page 6 6/15...
-
Page 7: Equipment Data
FL 1 5 59 818 5 Equipment data: Surfacing inside the impact area: sand, gravel, bark mulch, wood chips, impact-attenuating tiles, turf, top soil Filling height for bulk material such as sand, gravel, wood chips and similar: 40 cm Maximum free fall height: 0,30 m Minimum equipment space: 4,34 x 3,56 x 2,10 m... - Page 8 5 59 818 5 Foundation plan showing eibe prefabricated foundations Impact-attenuating surface according to EN 1176: for outdoor playground equipment only! FL 1 Please allow for a distance to other objects of at least 1.5 m all around the equipment (EN 1176).
- Page 9 5 59 818 5 FL 1 5 63 070 0 9/15...
- Page 10 5 59 818 5 Foundation plan showing in-situ concrete footings made from C20/25 concrete. (Leave foundations to harden for at least 14 days before mounting the equipment.) Impact-attenuating surface according to EN 1176: for outdoor playground equipment only! FL 1 Please allow for a distance to other objects of at least 1.5 m all around the equipment (EN 1176).
- Page 11 5 59 818 5 FL 1 11/15...
-
Page 12: Scope Of Delivery
5 59 818 5 Scope of delivery 1x P 59 229 9 901 Accessory bag 4x S 08 056 6 4x S 30 085 6 M12x40 - DIN603 1x W 63 0070 4x M 51 076 0 4x S 22 026 0 4x S 45 001 6 8x90 A10,5 - DIN9021... - Page 13 5 59 818 5 1x P 59 229 9 901 W 63 0070 S 300856 M12x40 - DIN601 5 63 070 0 S 08 056 6 - M12x60 M 51 076 0 S 37 004 0 M 10 - DIN 986 S 35 001 0 M 10 - DIN 934 S 45 001 0...
- Page 14 5 59 818 5 1x P 59 229 9 901 W 63 0070 S 300856 M12x40 - DIN601 S 08 056 6 - M12x60 M 51 076 0 S 22 026 0 - 8x90 S 45 001 6 A10,5 - DIN9021 Align Tighten all screw connections.
- Page 15 Proof of maintenance and repair work 5 59 818 5 Day of Person Verification Defects eliminated inspection responsible Defects (name, date, signature) 15/15...
