Summary of Contents for Aurora DTX Series

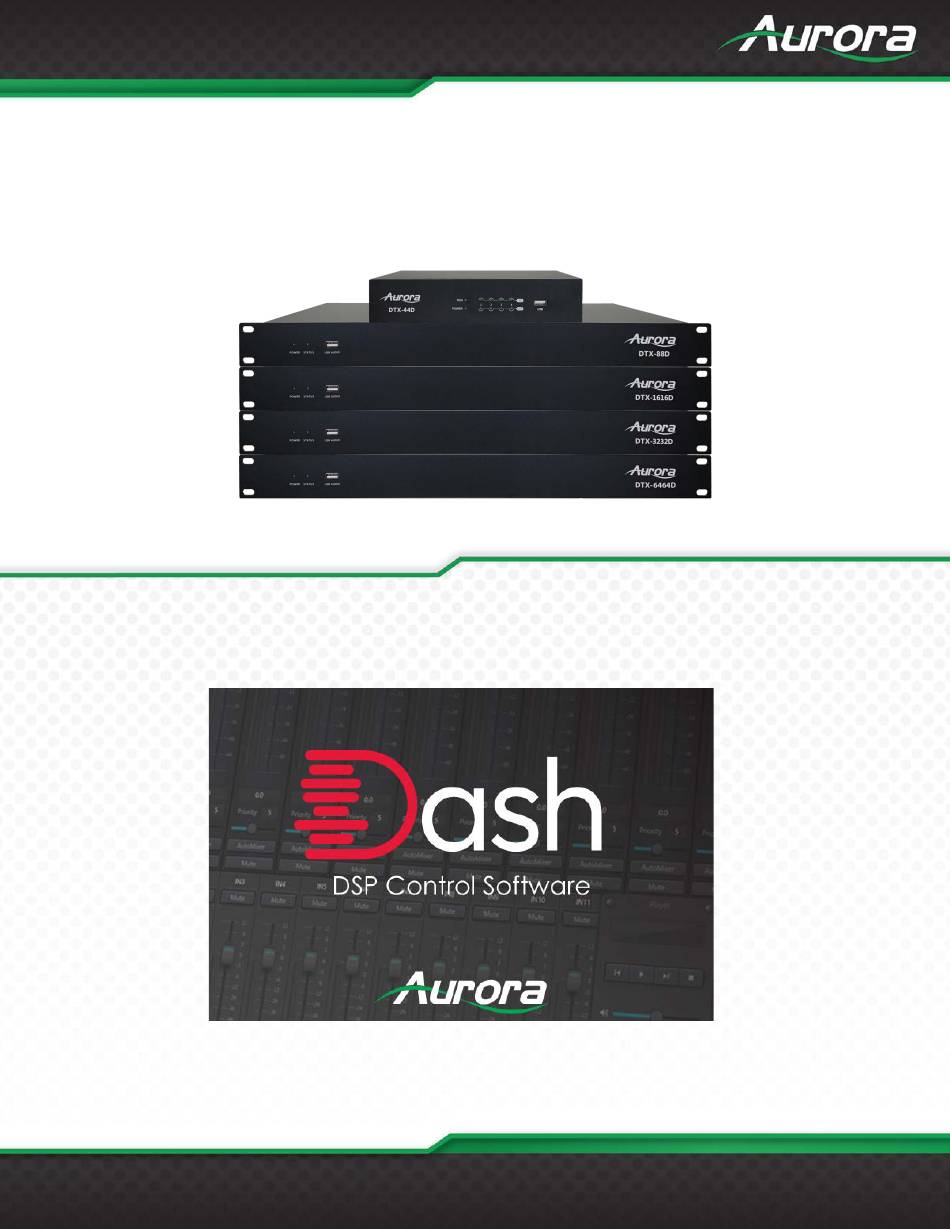

- Page 1 USERS GUIDE DTX Series DTX-44D ● DTX-88D ● DTX-1616D ● DTX-3232D ● DTX-6464D Dante Based Audio DSP with Analog I/O www.auroramm.com Manual Number: 220105 | Dash Rev: 3.04 or Higher...
- Page 2 www.auroramm.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technology Overview ................................5 Introduction to Dash ................................5 Quick Start ..................................... 5 Hardware ....................................6 Safety Instructions ................................6 Front Panel Features ................................7 Rear Panel Features ................................7 Audio Signal Flow Diagram ............................... 10 Software ....................................11 Software Installation ................................ - Page 4 Channel Pages ................................20 Setting Minimum and Maximum Gain ........................... 20 Accessing Parameters ..............................21 Module Tabs ..................................22 Inputs ..................................... 22 AutoMixer ..................................22 AEC ....................................22 ANS ....................................23 Matrix ..................................... 23 Outputs ..................................23 Meters ................................... 24 Camera ..................................
- Page 5 Camera Tracking ................................43 USB Soundcard................................45 Appendix A: Device Mirroring ............................46 Appendix B: Control Protocol ............................46 External Control................................. 46 Control Protocol................................. 46 Protocol Header ................................46 Message Type = Parameter SET (0x21) ........................47 Message Type = Parameter GET(0x22) ........................47 Message Type = Preset SET(0x13) ..........................
-
Page 6: Technology Overview
Technology Overview Introduction to Dash The Dash DSP Controller is a Windows-based, full-featured application that configures and controls the DSP hardware. Systems can be designed to perfectly match specifications and conform as requirements change or evolve. All classes of audio processing modules for signal routing and shaping are provided. Dash provides a revolutionary way of thinking about DSP software. -
Page 7: Hardware
Please review the following safety precautions. If this is the first time using this model, then read this manual before installing or using the product. If the product is not functioning properly, please contact your local dealer or Aurora for further instructions. -
Page 8: Front Panel Features
Front Panel Features USB (Audio) – USB 2.0 Type A connector. Used in conjunction with the USB Sound card feature. Requires a USB Type-A to USB Type-A cable, included in box. The USB connection can also be used as a sound card with a PC or Mac using a generic HID audio. - Page 9 Analog Inputs – Balanced or unbalanced high impedance inputs support Line or Mic level with +48VDC phantom power. Channel count varies per Model. Mating connectors provided in box. Signal Label Pin 2 Pin 3 Ring Pin 1 Sleeve *do not use (-) for unbalanced Analog Outputs –...
- Page 10 LAN Control Interface – 10/100/1000Mbps Ethernet control interface. Use this interface to connect to Dash control software or to use UDP commands from a third-party source. NOTE: This port has different MAC and IP addresses than the Dante Audio ports. AC Power Input/Switch –...
-
Page 11: Audio Signal Flow Diagram
Audio Signal Flow Diagram www.auroramm.com... -
Page 12: Software
Software Software Installation A Windows PC with a processor of 1 GHz or higher and: Windows 7 or higher version. • 1 GB free storage space. • 1024 x 768 resolution. • • 24 bit or higher color. • 2GB or higher memory. •... -
Page 13: Software Operation
USERS GUIDE Software Operation After starting the software, the main screen will look like the image below: File Menu The File menu is for opening and saving presets to the computer during offline configuration. Presets are stored on the DTX devices by default. In the case where you are configuring a system offline, that configuration can be saved to a local file on the controlling computer. -
Page 14: Settings Menus
USERS GUIDE Settings Menus Device Setting NOTE: This menu selection is only active when a DTX device is connected to Dash. This dialog window provides the basic configuration information about the connected device. Device Name: Change the name of the device by directly typing in the field. -
Page 15: Gpio Setting
USERS GUIDE UART Settings: Baud Rate, Data Bits, Stop Bit, and Parity Bit can be set for both the RS-232 and RS-485 ports of the device. OK: Setting are saved to the device and the dialog box is closed. Cancel: All changes are lost, and the dialog box is closed. GPIO Setting All DTX units above 4x4 channels include 8 GPIO interfaces. - Page 16 USERS GUIDE Routing: Creates a Trigger Type: ‘High level trigger’ will trigger the channel matrix route point when the voltage on the pin is above the threshold. ‘Low when a trigger level trigger’ will trigger the channel with the voltage on event occurs.
- Page 17 USERS GUIDE Trigger Type (outputs only): Determines which function will initiate a trigger event on the GPIO channel. Additional parameters will differ depending on the Trigger Type selected. The following tables define the additional parameters based on the value of this field. Direction = ‘Output’...
-
Page 18: Group Setting
USERS GUIDE Group Setting Both input and output channels can be grouped together for the purpose of gain setting and muting, all other parameters remain independent. Grouped channels can be identified by a colored mark on the channel fader, all channels in a particular group will share the same color. -
Page 19: User Interface
USERS GUIDE User Interface Dash software can be controlled by up to 8 PC, Android or iOS devices by creating a custom interface. This menu opens a User Interface creation application used to create these custom interfaces. Help About Displays software version information. Document Help file for Dash software. -
Page 20: Edit Module
USERS GUIDE Set IP: This allows the Device IP address to be set. The list is generated by UDP discovery, so it is possible that the IP address is not in the correct subnet for the active network. This is especially true for new DTX devices that still have the default IP address set. -
Page 21: Navigating The Home Tab
USERS GUIDE Navigating the Home Tab The Home tab is the main dashboard for the selected device. It is located below the Device tabs and is the first entry in the line of Module tabs. Click the word ‘Home’ to enter the Home tab. Channel Layout For both inputs and outputs channels are numbered first with analog followed by Dante. -
Page 22: Accessing Parameters
USERS GUIDE Accessing Parameters There are three ways to access parameters of a channel and its modules. Right Click: Right clicking over a module will bring up a dialog box for the selected module and channel while staying on the Home tab. Double Click: Double clicking on a module will bring up either the ‘Inputs’... -
Page 23: Module Tabs
USERS GUIDE Module Tabs Below the main menus and Device tabs are a series of Module tabs. The quantity of these tabs will vary depending on the capabilities of the DTX model you are using. DTX Model Available Module Tabs DTX-44D Inputs, AutoMixer, AEC, ANS, Matrix, Outputs, Meters DTX-88D, DTX-1616D, DTX-3232D... -
Page 24: Ans
USERS GUIDE The ANS tab maintains the Input and Output fader sections divided by the Sound Card as in the Home tab. Above the fader row is the ANS System Module. Matrix The Matrix tab maintains the Input and Output fader sections divided by the Sound Card as in the Home tab. -
Page 25: Meters
USERS GUIDE Meters The Meters tab maintains the Input and Output fader sections divided by the Sound Card as in the Home tab. Above the fader row is a set of input and output meters. Camera The Camera tab maintains the Input and Output fader sections divided by the Sound Card as in the Home tab. -
Page 26: Dsp Channel Modules
USERS GUIDE DSP Channel Modules The Dash DSP Control software has been designed to be incredibly flexible and includes a large variety of DSP Modules, each providing a unique function. NOTE: The DTX-44D and DTX-6464D have fixed DSP modules, they cannot be changed. Adding and Removing DSP Modules DTX-88D, DTX-1616D and DTX-3232D allow for the customization of DSP Modules on a per channel basis. -
Page 27: Input Source
USERS GUIDE Cancel: Exits ‘Edit Module’ mode and discards changes. Input Source The Input Source Module is a fixed module that exists on every input channel of every DTX device. It provides basic input parameters for the selected channel. Since this is a fixed Module, it does not consume one of the five Module Slots available on some DTX models. -
Page 28: Expander
USERS GUIDE Expander Expanders are helpful dynamic processing tools that increase the dynamic range of an audio signal. They are essentially the opposite of a compressor, which decreases the dynamic range of an audio signal. The most fundamental difference between and expander and a compressor is that while a compressor engages when a signal is above a defined threshold, an expander engages when a signal drops below a... -
Page 29: Automatic Gain Control (Agc)
USERS GUIDE Ratio: Refers to the compression ratio. The ratio determines how much attenuation to apply to a signal that has overshot the threshold level. A lower threshold will reduce a greater portion of the signal, while a higher threshold will reduce only the loudest peaks and leave the rest untouched. -
Page 30: Parametric Eq
USERS GUIDE typically be set just above the noise floor. This assures that the noise floor itself will not trigger the AGC, but any signal above that will. Ratio: Sets the desired ratio between input signal and output signal. Target Threshold: Sets the desired output signal level. If the signal is higher than the threshold, the controller will compress the signal in proportion. -
Page 31: Graphic Eq
USERS GUIDE Frequency (Hz): Sets the center frequency of the filter. Gain (dB): It refers to the amount of gain or attenuation applied at the center frequency. Q : Q Represents ‘Quotient of Change’ or the bandwidth. This sets how wide a swath of frequencies are affected surrounding the center frequency. -
Page 32: Adaptive Feedback Control (Afc)
USERS GUIDE Frequency Bands: Gain control for the specified frequency. Value ranges are from +12 dB to -24 dB (attenuation). Narrow/Normal/Wide: Selects from one of three preset Q-values. This setting applies to all frequency bands. Reset: Resets gain values for every frequency band to 0 dB and turns OFF the Graphic EQ module. ON/OFF: The Graphic EQ has a master on/off switch which is used to enable or disable the module. - Page 33 USERS GUIDE When the signal returns to below the threshold, all settings are returned to their pre-feedback event state. Feedback Threshold: Positively defines what is NOT a feedback event. Any signal that is below this threshold is not considered feedback. Setting this threshold too high can diminish the effectiveness of the AFC. Filter Depth: Sets the maximum attenuation of a single filter.
-
Page 34: Gate
USERS GUIDE If a speaker is included among the devices used, it is recommended to use a compressor/limiter module on those outputs for additional protection. You should set an appropriate limiter to make sure that the speaker will not get damaged even if all notching filters slots are used or the feedback inhibitor cannot effectively control the feedback, such as in the case of excessive system gain. -
Page 35: Ducker
USERS GUIDE Ducker A Ducker is a device used for lowering the level of one audio source based on the presence of another audio source. Duckers are often used in paging systems to lower the level of background music during a page. -
Page 36: High And Low Pass Filter
USERS GUIDE microphone. For example, consider music and announcements in a bar or restaurant setting. When the bar is empty, the ambient sound is low and thus, the program (music/announcements) do not to be too loud. As the bar fills, the ambient noise gets louder, and the program will get drowned out in the noise floor of the room. -
Page 37: Delay
USERS GUIDE The Butterworth filter is a type of signal processing filter designed to have as flat frequency response as possible (no ripples) in the passband and zero roll off response in the stopband. However, one main disadvantage of the Butterworth filter is that it achieves this pass band flatness at the expense of a wide transition band as the filter changes from the pass band to the stop band. -
Page 38: Output Setting
USERS GUIDE Output Setting The Output Setting Module is a fixed module that exists on every output channel of every DTX device. It provides basic output parameters for the selected channel. Since this is a fixed Module, it does not consume one of the four output Module Slots available on some DTX models. -
Page 39: Dsp System Modules
USERS GUIDE DSP System Modules Gain Sharing Auto Mixer The Dash Gain Sharing AutoMixer is a multichannel mixer that automatically lowers the level of non-active audio sources such as microphones while simultaneously riding the level of active sources to maintain the desired target gain. This eliminates the need for tedious and often impractical live mixing of audio sources. -
Page 40: Gating Automixer
USERS GUIDE Mute: Mutes the output of the AutoMixer. ON/OFF: The Auto Mixer has a master on/off switch which is used to enable or disable the module. The ‘Gain Sharing AutoMix’ indicator will be green when the module is ON. Channel Control Parameters Fader/Gain: Sets the channel gain. - Page 41 USERS GUIDE In addition to a Gain Sharing AutoMixer, Dash provides the option of a more traditional Gating AutoMixer (Relative Threshold). When in Edit Module mode, right clicking on the AutoMixer slot in the top center of the Home Tab, provides the option of using either a Gain Sharing AutoMixer or a Gating AutoMixer.
-
Page 42: Acoustic Echo Cancellation (Aec)
USERS GUIDE AutoMixer: Enables AutoMix participation of the selected channel. Mute: Mutes the channel. NOTE: Mute is after the input to the AutoMix engine. A muted channel may still influence the gain adjustment of other channels in the AutoMix. Default: Sets the default channel. When all other channels are gated, the single default channel will be opened. Acoustic Echo Cancellation (AEC) Acoustic Echo Cancellation (AEC) is important for audio teleconferencing when simultaneous... -
Page 43: Automatic Noise Suppression (Ans)
USERS GUIDE ON/OFF: The AEC has a master on/off switch which is used to enable or disable the module. The ‘AEC’ indicator will be green when the module is ON. Note: Use the output of the AEC to route the resulting audio in the Matrix. Do not add the both the AEC and the local source into the Matrix together or the desired effect will be lost. -
Page 44: Camera Tracking
Tracking threshold a camera preset can be changed and/or a custom serial command can be sent. For example, a preset can be sent to change the preset of a camera and simultaneously send a command to an Aurora VTX decoder or a video switcher to change which camera is being displayed. - Page 45 USERS GUIDE Channels This section is used in conjunction with the Voice Tracking settings. Each input channel in the DSP can be selected and optionally enabled to participate in the Automatic Voice Tracking Camera Control. Channel No: Selects the current input channel. Priority: Sets the priority for the selected input channel.
-
Page 46: Usb Soundcard
USERS GUIDE Live Controls This section of controls is separate from the Automatic Voice Tracking Camera Control functionality. These parameters allow direct live control of the camera. This can be useful in creating camera presets to be used in Automatic Voice Tracking Camera Control without having to use a third- party application. -
Page 47: Appendix A: Device Mirroring
USERS GUIDE USB, audio files stored on the computer can be added to the playlist and played on the connected computer. Similarly, the module can be used to record audio to a storage location on the PC. ① Song playing information, double click to enter playlist ②... -
Page 48: Message Type = Parameter Set (0X21)
USERS GUIDE Length (b[2]): Defines the length of the Data portion of the message. Version: Provided for legacy purposes. This value should always be 0x01. Data: The format of the Data bytes will be determined by the Message Type value. These formats are defined below. Message Type = Parameter SET (0x21) For Parameter Set operations the Data bytes will be in the following format: b[4]... -
Page 49: Serial Port To Udp Conversion
USERS GUIDE Value Function 0x00 Input 0x01 Output Start GPIO (b[9]): Zero based start channel number for desired range of channels. For example, channel 1 = 0x00, channel 2 = 0x01, etc. End GPIO (b[10]): Zero based end channel for desired range of channels. If setting a single channel this value will be the same as Start GPIO. - Page 50 USERS GUIDE Port (b[8]-b[9]): UDP port on destination device. Data Length (b[10]): Length of the Data portion of the message, not including prefix, address and port. Data: Message payload. Maximum 128 bytes. For example, when sending a “HELLO DSP” message to a device at 192.168.1.22 port 50000, the protocol would look as follows: b[0]-b[3] (prefix) b[4]-b[7]...
-
Page 51: Appendix C: Module Parameter Types
USERS GUIDE Appendix C: Module Parameter Types Module Name Parameter Type Description Input Source 0x01 Gain 0x02 Mute 0x03 Sensitivity 0x04 Phantom Power Switch 0x05 Signal Generator Type 0x06 Signal Generator Frequency 0x07 Sine Wave Gain Size 0x08 Channel Name 0x09 Invert 0x10... - Page 52 USERS GUIDE Module Name Parameter Type Description 0x12 Low Pass Type 0x13 Low Pass Slope 0x14 Low Pass Frequency 0x15 Low Pass Gain Auto Mix 0x01 Total Mute 0x02 Total Gain 0x03 Slope 0x04 Response Time 0x05 Channel Auto Switch 0x06 Channel Mute 0x07...
- Page 53 USERS GUIDE Aurora Multimedia Corporation 205 Commercial Court | Morganville, NJ 07751 Phone: 732-591-5800 | Fax: 732-591-6801 www.auroramm.com...
