WT sensor PCT710 Quick Start Manual

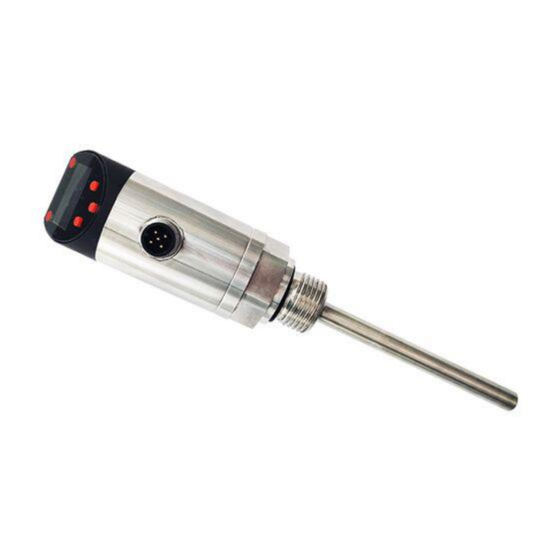

PCT710 Intelligent Temperature Switch
Features
High precision
■
Adjustable response time
■
NPN, PNP compatible, free
■
switching
Button operation, shortcut
■
button for one-click zero
calibration, fast unit switching
OLED shows the current
■
temperature
LED for node action, easy to
■
observe
Applications and industries
Hydropower
■
Chemical industry
■
City water supply
■
Scientific research
■
Accurate measurement and
■
control of temperature
Notes:
1 Do not touch the diaphragm with
hard objects, which
damage to the diaphragm.
2 Please read the Instruction Manual
of the product carefully
installation and check the relevant
information of the product.
3 Strictly follow the wiring method for
wiring, otherwise it may cause product
damage or other potential faults.
4 Misuse of the product may cause
danger or personal injury.
Product overview
The electronic digital display temperature switch is an
intelligent digital display temperature measurement & control
product which integrates temperature measurement, display,
output and control. This product is in full-electronic structure. The
PT100 high precision temperature sensor is adopted in the front
end. The output signal is processed by the pre-amplification
electric circuit, and then sent into high precision A/D converter.
Through arithmetic processing by means of the advanced
industrial grade microprocessor, the output signal is displayed on
site with 2-way switch quantity, accomplishing the measurement
and control for the control system temperature.
This intelligent digital temperature switch has advantages of
flexible use, simple operation, easy commissioning and high
safety and reliability. It is widely used in hydropower, tap water,
may cause
petroleum, chemical, mechanical, hydraulic and other industries
for the measurement, display and control of the medium
temperature.
before
Notes:
1 Do not misuse documentation.
2 The information presented in this product sheet is for reference only.
Do not use this document as a product installation guide.
3 Complete installation, operation, and maintenance information is
provided in the instructions of the product.
4 Misuse of the product may cause danger or personal injury.
