USER MANUAL
A16 Battery Cabinet
Cabinet dimension of A16: 780mm×470mm×1230mm (D×W×H), including connecting wires,
air switch and wire holder. The cabinet can be mounted up to 16 pieces 65AH/12V
battery or 100AH/12V battery, each layer has 4 batteries and four layers in total. The
external appearance is shown as Figure 1.

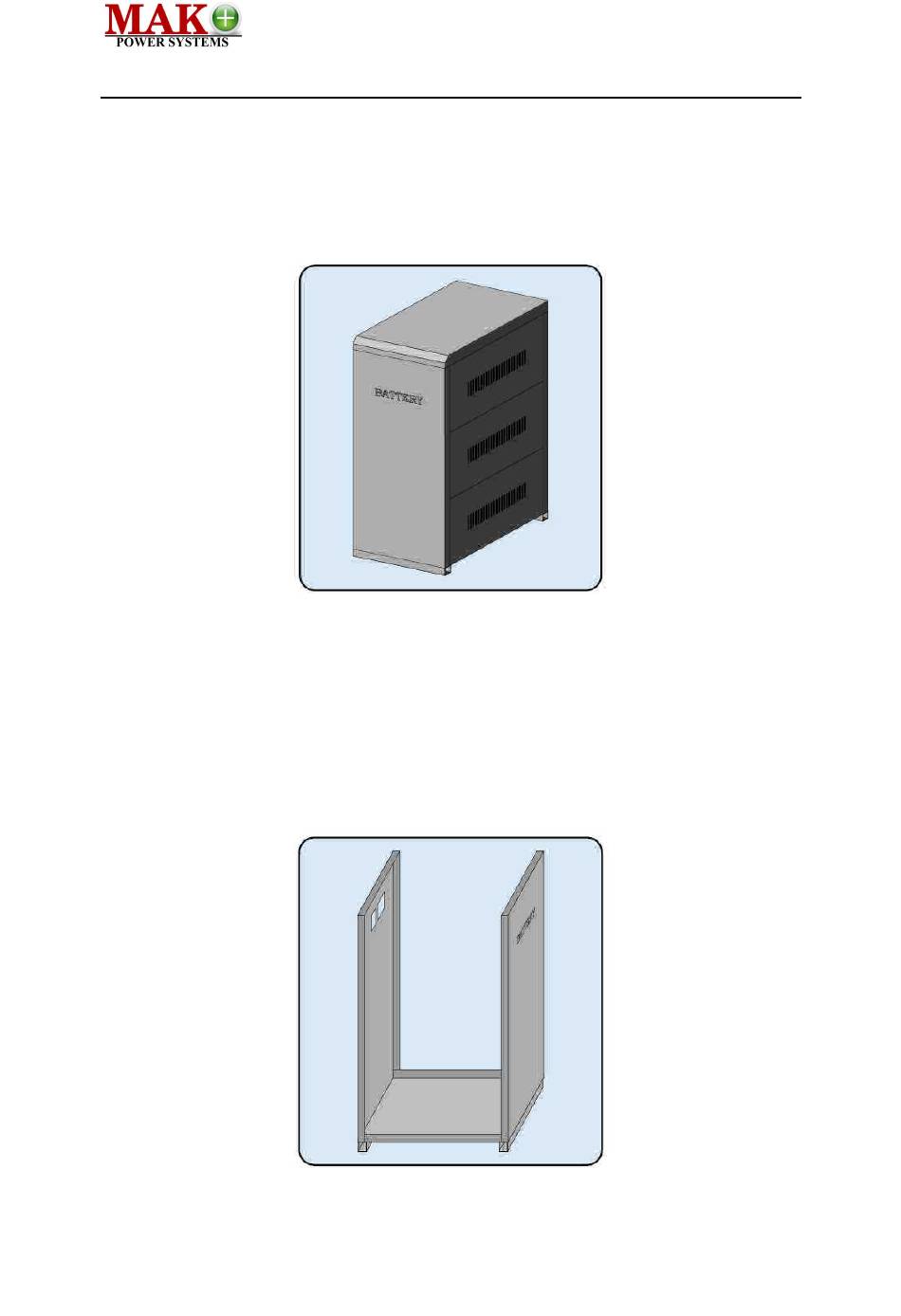

Figure 1
Installation Steps:
1. Place the cabinet base, then plug the V-slot of the front and rear panel into the
flume of the base's two sides correspondingly. Shown as Figure 2.
Figure 2
www.mak-powersis.de
Advertisement
Table of Contents
Summary of Contents for Mako A16
- Page 1 USER MANUAL A16 Battery Cabinet Cabinet dimension of A16: 780mm×470mm×1230mm (D×W×H), including connecting wires, air switch and wire holder. The cabinet can be mounted up to 16 pieces 65AH/12V battery or 100AH/12V battery, each layer has 4 batteries and four layers in total. The external appearance is shown as Figure 1.
- Page 2 USER MANUAL A16 Battery Cabinet 2. According to the accompanying wiring diagram and list, laying the batteries on the base of the battery cabinet, connecting the wires, locking the wires on battery poles. Shown as Figure3. Figure 3 3. Cover the 1,2 and 3 racks. According to the accompanying wring diagram and list to install the other batteries and wires.
- Page 3 USER MANUAL A16 Battery Cabinet Figure 4 4. After installation is completed, checking all connections and voltage of battery are accurate. Then install right and left side panels. Shown as Figure 5. Figure 5 5. Cover the cabinet’s cover. The installation of battery cabinet is completed. Shown...
- Page 4 Figure 6. Figure 6 Wiring Method: A16 battery cabinet is placed Four groups battery. First connect the each battery group(4PCS batteries each group)in series, then connect that four battery groups in series. Connect the positive and negative of battery groups to the air switch on the rear panel, then lead out two wires from it to connect to wire holder.
- Page 5 USER MANUAL A16 Battery Cabinet Figure 7 Notes: Don’t anti-connecting the cathode and anode of the battery, or else that will do damage to the battery or cause other accidents. A16 battery cabinet’s fittings. Shown as the following: www.mak-powersis.de...
- Page 6 USER MANUAL A16 Battery Cabinet Case parts Quantity Wire(6mm Quantit Remarks Base Black 450mm Double-ended OL15.5-8 terminal Front panel Black 1500mm Double-ended OL15.5-8 terminal Rear panel Red 200mm Single-ended OL15.5-8 terminal Rack Red 300mm Single-ended OL15.5-8 terminal Side panel Cover...
