DOLBY DIGITAL/DTS AV RECEIVER
PT-690A
R
MASTER VOLUME

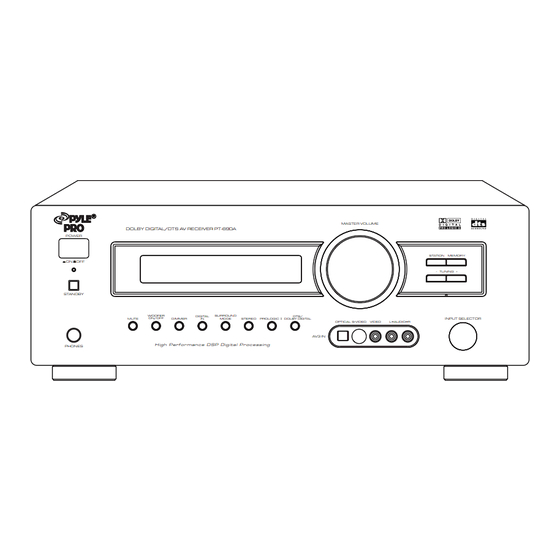

DOLBY DIGITAL/DTS AV RECEIVER PT-690A
POWER
STATION
MEMORY
ON
OFF
- TUNING +
STANDBY
WOOFER
DIGITAL
SURROUND
DTS/
ON/OFF
IN
MODE
INPUT SELECTOR
MUTE
DIMMER
STEREO
PROLOGIC
DOLBY DIGITAL
OPTICAL S-VIDEO
VIDEO
L
AUDIO
R
AV3 IN
High Per f ormance DSP Digit al Pr ocessing
PHONES
Advertisement
Table of Contents
Related Manuals for Pyle Pro PT-690A
Summary of Contents for Pyle Pro PT-690A
- Page 1 DOLBY DIGITAL/DTS AV RECEIVER PT-690A MASTER VOLUME DOLBY DIGITAL/DTS AV RECEIVER PT-690A POWER STATION MEMORY - TUNING + STANDBY WOOFER DIGITAL SURROUND DTS/ ON/OFF MODE INPUT SELECTOR MUTE DIMMER STEREO PROLOGIC DOLBY DIGITAL OPTICAL S-VIDEO VIDEO AUDIO AV3 IN High Per f ormance DSP Digit al Pr ocessing...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instruction…………………………………………………………………………………………2-3 Before Use………………………………………………………………………………………………………………..4 Connection……………………………………………………………………………………………………………..5-9 Antenna Connection…………………………………………………………………………………………………..5 Standard speaker setup for surround sound………………………………………………………………………...6 Speaker connection……………………………………………………………………………………………………7 DVD player, Television (Monitor), etc. connection………………………………………………………………..8-9 Remote control unit……………………………………………………………………………………….……………10 Front panel information………………………………………………………………………………………………..11 Remote control information………………………………………………………………………………………..12-13 Rear panel information………………………………………………………………………………………………...14 Basic operation………………………………………………………………………………………………………….15 Radio tuning…………………………………………………………………………………………………………….16 Radio data system (optional)…………………………………………………………………………………………..17 Video operation………………………………………………………………………………………………………...18 Delay time &... -
Page 3: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION CAUTION: READ THIS BEFORE OPERATING YOUR UNIT. 1. READ AND FOLLOW INSTRUCTIONS---All the safety and operation instructions should be read before the product is operated. Follow all operation instructions. 2. RETAIN INSTRUCTIONS---The safety and operation instructions should be retained for future reference. 3. - Page 4 15. HEAT DISPERSION---Leave at least 10 cm of space between the top, back and sides of the unit and the wall or other components for proper ventilation. 10cm or more DOLBY DIG ITAL/DTS AV REC EIVER PT-690A POWE R ON OF F...
-
Page 5: Before Use
BEFORE USE READ THIS BEFORE OPERATION 1. Choose the installation location of your unit carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibration and excessive dust, cold or moisture. 2. -
Page 6: Connection
CONNECTION FM INDOOR ANTENNA If you live reasonably close to a transmitter and want to use the provided lead-type FM antenna, you will have to connect it direct to the “FM 75Ω” socket. Fit the metal sleeve of the lead-type antenna over the core (center) pin of the (FM 75Ω) socket, extend the lead and attach it to a window frame or wall with thumbtacks, or move around the room, where reception is best. -
Page 7: Standard Speaker Setup For Surround Sound
CONNECTION Standard speaker setup for surround sound 1. TV or Screen 4. Center Speaker 7. Surround Right Speaker Standard speaker setup for surround sound ● Front right and left speakers ● Center speaker Produces a rich sound image by serving as a sound source for the front right and left speakers and enhancing the sonic movement. -
Page 8: Speaker Connection
CONNECTION SPEAKER CONNECTION SUB LINE OUT FRONT Power cord (AC) Be sure to connect the power cord to an AC outlet, which supplies the correct voltage. Hold the power plug when plugging or unplugging the power cord. SUBWOOFER LINE OUT Use this jack to connect an active subwoofer. -
Page 9: Dvd Player, Television (Monitor), Etc. Connection
CONNECTION DVD PLAYER, TELEVISION (MONITOR), ETC. DVD,VCD VIDEO AUDIO VIDEO MONITOR(TV) When connecting video components such as DVD players, cable boxes, satellite receivers and television, you can use different types of cables depending on how the video component is equipped. Video connections: If the video component is equipped with S-VIDEO jacks, it is recommended to connect to your Receiver or directly... - Page 10 CONNECTION Audio connections: Some video components are equipped with special digital audio outputs (i.e. DVD players). If your video component is equipped with a digital audio output, it is recommended that you connect to the your Receiver using a digital cable. Digital audio cables are required to use the DTS and Dolby Digital surround sound modes.
-
Page 11: Remote Control Unit
REMOTE CONTROL UNIT By using the provided remote control unit, the receiver can be controlled from your listening position. To use the remote control unit, point it at the REMOTE SENSOR window of the receiver. Notes: Even if the remote control unit is operated within the effective range, remote control operation may not work if there are any obstacles between the unit and the remote control. -
Page 12: Front Panel Information
FRONT PANEL INFORMATION DOLBY DIGITAL/DTS AV RECEIVER PT-690A POWER ON OFF STANDBY WOOFER ON/ OFF M UT E PHONES NO. & NAME DESCRIPTION 1. POWER Push this button to turn the unit into standby mode, push it again to turn off the unit. -
Page 13: Remote Control Information
REMOTE CONTROL INFORMATION DELAY POWER MUTE TIME SETUP SURROUND MODE BASS MEMORY DOLBY PL II TREBLE INPUT SUBWOOFER ON/OFF SELECT DOLBY DIGITAL DIMMER SELECT INPUT TEST STATION DYNAMIC MODE TONE BAND LFE TRIM AUTO/ TUNING MANUAL TUNING VOLUME ST/MONO P T-6 9 0 A... -
Page 14: Remote Control Function
REMOTE CONTROL FUNCTION NO. & NAME DESCRIPTION 1. POWER Push this button to turn the unit into standby mode, push it again to turn off the unit. 2. MUTE Press this button to mute the sound, push again to cancel the mute function. Press this button to choose one of the 3. -
Page 15: Rear Panel Information
REAR PANEL INFORMATION DVD-S IN VIDEO 1-S IN VIDEO-S OUT VI DEO 1 VI DEO 2 VI DEO TAPE TAPE VI DEO 1 VI DEO 2 PHONO LOOP SPEAKERS 8 SUB LINE OUT VIDEO IN DVD IN ---- connect to the line output terminals of a DVD player. VIDEO 1 / VIDEO 2 IN ---- connect to the output terminals of a VCR to the VIDEO 1 and VIDEO 2 IN. -
Page 16: Basic Operation
BASIC OPERATION BASIC OPERATION 1 P OWER DOLBY DIGITAL/DTS AV RECEIVER PT-690A PO WER OF F STANDBY W OOFER DIGITAL SUR ROUND DTS/ MUTE ON/ OFF DIMM ER MODE STEREO PR OLOGIC DOLBY DIGITAL AV3 IN PHONES STAND BY 1. Press the POWER button to ON. -
Page 17: Radio Tuning
BASIC OPERATION THE RADIO OPERATIONS MASTER V OLU ME DOLBY DIG ITAL/DTS AV REC EIVE R PT-690A POW ER ON OF F STAN DBY W O O FE R D IG IT A L S U R RO U N D... -
Page 18: Radio Data System (Optional)
RADIO DATA SYSTEM (OPTIONAL) RADIO DATA SYSTEM (RDS) RDS is a method for the transmission of additional information from local Radio Stations. It can only operated in FM mode. For example, name of the station broadcasting, name of the program or the type of program will be shown on the multi-function display. -
Page 19: Video Operation
VIDEO OPERATIONS Playing Video sources DOLBY DIGITAL/DTS AV RECEIVER PT-690A PO WER OF F STANDBY W OOFER DIGITAL SUR ROUND DTS/ MUTE ON/ OFF DIMM ER MODE STEREO PR OLOGIC DOLBY DIGITAL AV3 IN PHONES 1. Select the DVD, VIDEO 1, VIDEO 2 or VIDEO 3 modes by rotating the INPUT SELECTOR or pressing the INPUT SELECT on remote control. -
Page 20: Delay Time & Dynamic Range Control
DELAY TIME & DYNAMIC RANGE CONTROL DELAY TIME The delay time can be individually set for the Dolby Digital/Dolby Pro Logic II modes using the DELAY (CENTER/REAR) buttons. When you adjust the delay time in the Dolby Digital mode, an additional 15 ms is automatically added to the surround channels in the Dolby Pro Logic mode. -
Page 21: Test Tone, Lfe Trimmer & Channel Select
TEST TONE, LFE TRIMMER AND CHANNEL SELECT. TEST TONE Speaker Level balance Adjustment The test tone function is useful to adjust the relative volume between speakers in DOLBY DIGITAL or DOLBY PRO LOGIC II mode. Once the balance is set, you don’t have to change the balance as long as the speakers aren’t moved. -
Page 22: Troubleshooting
TROUBLESHOOTING To determine any problem with your receiver, always check the most obvious possible causes first. If any problem still remains after your having checked the items below, consult your nearest dealer. Problem Amplifier When listening to the music in stereo. Left/right speakers reversed. -
Page 23: Specifications
SPECIFICATIONS AUDIO SECTION Audio Power Output Output Impedance Total Harmonic Distortion LINE INPUT Input Sensitivity/Impedance Frequency Response Tone Control Range Signal-Noise Ratio WOOFER OUTPUT Rated Output/Impedance Frequency Response FM TUNER SECTION Frequency Range Sensitivity Antenna Terminal TUNER SECTION Frequency Range Sensitivity Signal-to-Noise Range Antenna...
