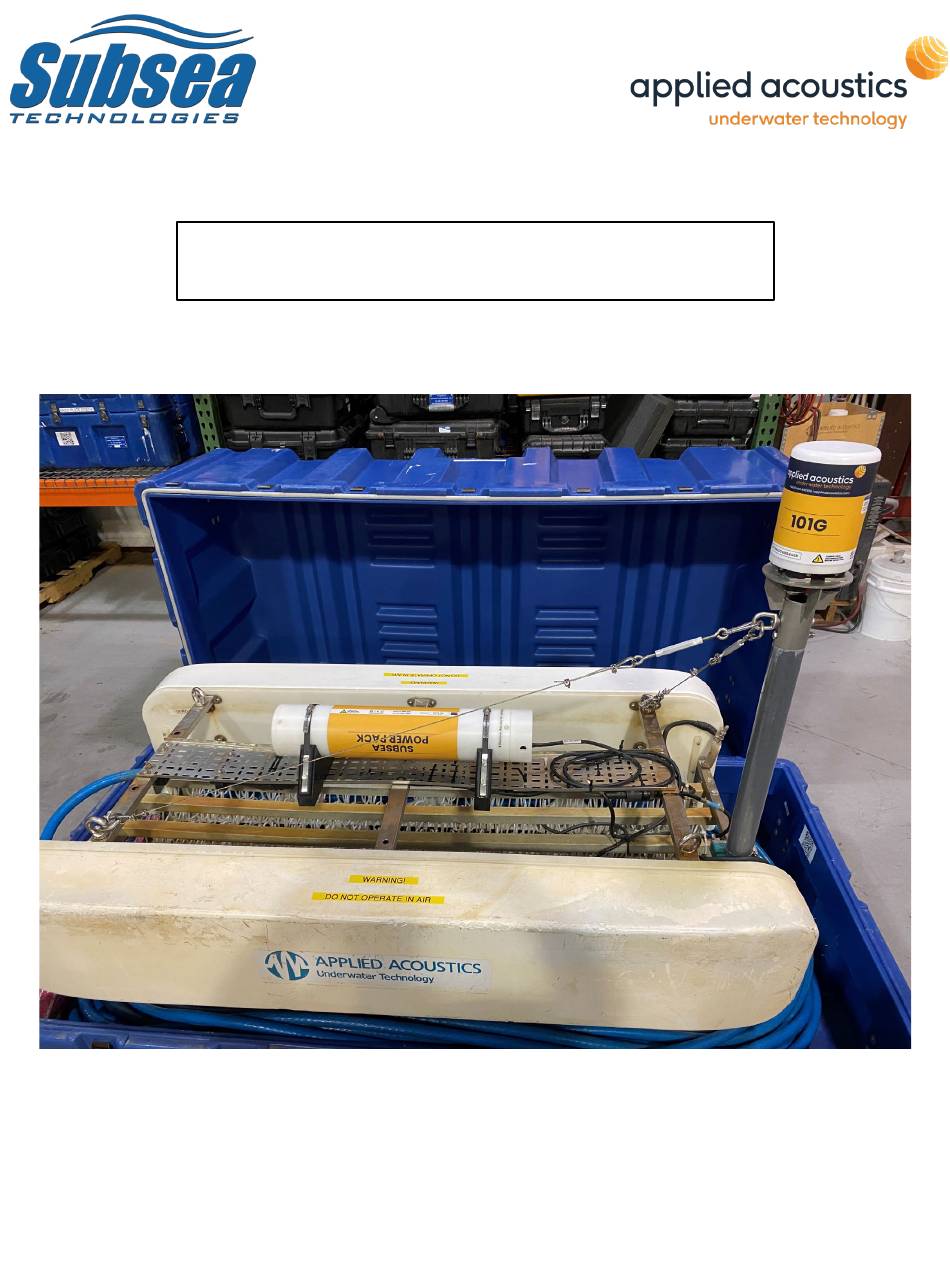

- Page 1 MiniPod Installation Guide Subsea Technologies, Inc. - August 2021...
- Page 2 Shipping Contents Subsea Technologies, Inc. - August 2021...
- Page 3 1. – Securing the pole: Remove pole from its shipping position. Insert bottom of mounting pole into the green bracket clamps. Pole should only go as far as black stopper allows. Pole secured for shipping Bottom of the pole indicated with markings Green bracket clamps Black “stopper”...
- Page 4 Once the pole is inserted, ensure that “FORWARD” label is facing the front of the catamaran. Secure all 4 nuts with a 9/16” wrench. “Forward” indicated with label Tighten all 4 nuts 2. – Mounting the GPS Antenna: Locate and remove the GPS antenna from its transit case.
- Page 5 Remove and retain the fasteners from the top of the mounting pole. Feed the antenna cable through the pole. Do this until all cabling is through and secure the bracket on top of pole. Feed the cable trough opening Fit together bracket and pole Reinsert fasteners gently through bracket, making sure to keep the cable out of the way.
- Page 6 3. – Connect antenna to battery pack: Loop cable around the bracket clamps, and feed along the support crossbar. Secure with zipties as you go. Connect antenna cable to Subsea Power Pack. Coil remaining cable and ziptie to support structure. Loop cable around brackets Connect to Subsea Power Pack Coil and ziptie remaining cable...
- Page 7 4. – Secure support cables: Remove carabiner clips from their shipping location (attached to Subsea Power Pack). Clip both carabiners to “eye nut” on antenna mount. Tighten turnbuckles until completely tight. Clip #1 Clip #2 Secure both clips to “eye Locate and tighten both nut”...
- Page 8 4. – Review final assembly: All fasteners should be reviewed for tightness, and support cables should be fastened and tight. Reverse instructions for disassembly and return shipping Subsea Technologies, Inc. - August 2021...
