Summary of Contents for Helium Digital PLAYMAKER LCD PM-300 Hockey Edition

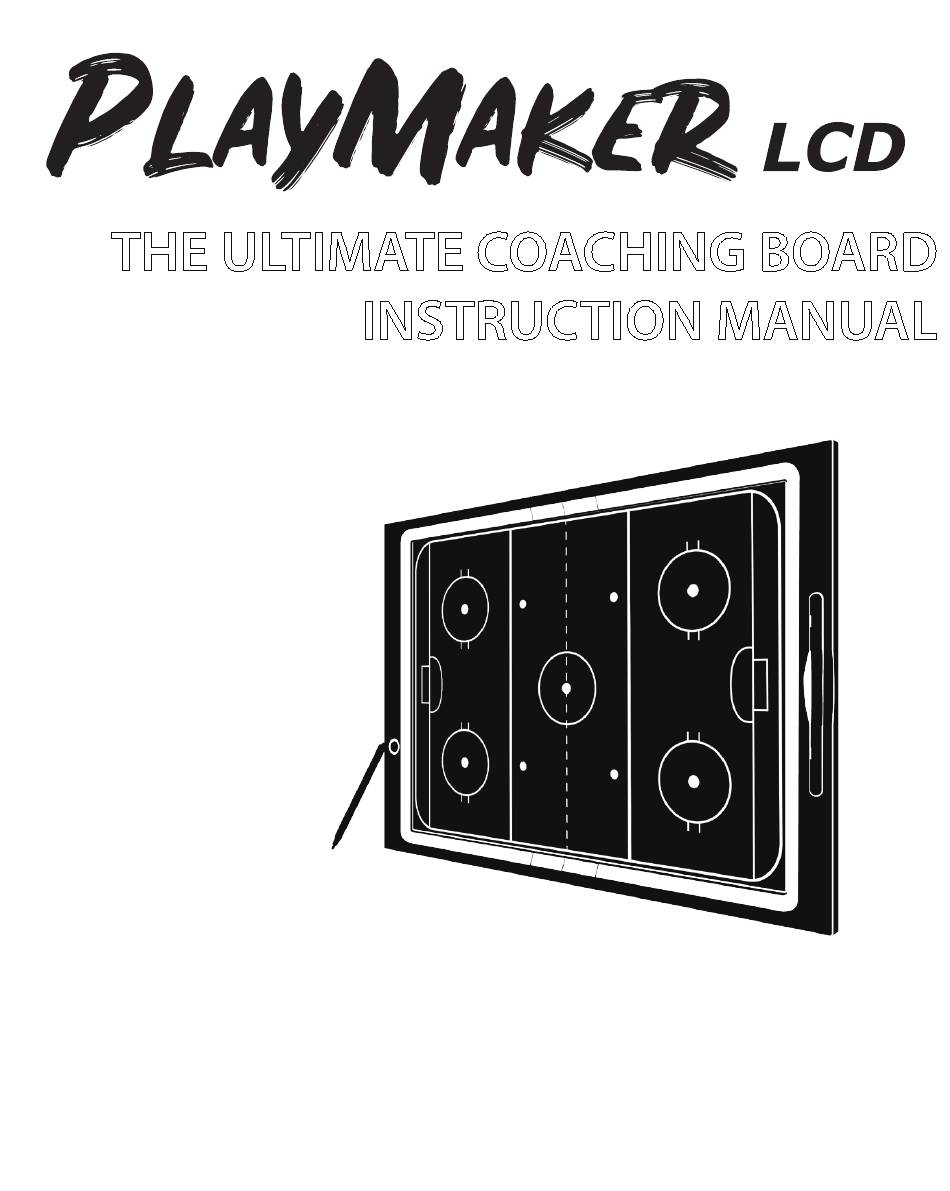

- Page 1 THE ULTIMATE COACHING BOARD INSTRUCTION MANUAL PM-300 Hockey Edition PM-310 Soccer Edition PM-320 Basketball Edition...
- Page 2 Thank you for your purchase of Playmaker LCD, the ultimate coaching board. Please read this instruction manual carefully, as it contains important information regarding the use and care of your Playmaker LCD. Package Contents • 21” Playmaker LCD • Stylus • Instruction Manual • Suction Cups (Hockey Edition only) Available Accessories (sold seperately) • 21” Playmaker LCD Protective Carrying Case • Replacement Stylus Product Design...
- Page 3 Instructions for Use The Playmaker LCD ships with a battery isolation slip that helps to prevent the batteries from being depleted during transit. Please remove this slip by pulling straight back on the white tab that indicates to “remove before use”. This tab is located in the battery compartment (see product design diagram). To begin using the board remove the stylus from the holder. Use the stylus to begin drawing on the screen. For best results avoid pressing your hand against the screen while drawing. You should only use the included stylus or similar object when drawing on the board. Please avoid using any sharp objects as they may do permanent damage the to the LCD screen. To erase all information press the “delete” key. You will see a momentary flash, this is normal operation. After pressing the “delete” key, the board will process an erase operation that will last approximately 2 seconds. If you write on the...
- Page 4 Battery Orientation Diagram The positive side of the battery should make contact with the positive marking side on the battery compartment. The negative side of the battery should make contact with the negative marking side on the battery compartment. Suction Cups (Hockey Edition Only) The included suction cups may be used to mount Playmaker LCD on the glass in a hockey arena for easy viewing. To use the suction cups pull out the retractable clips (see product design diagram). Insert the suction cup into the large opening of the retractable clip, and then slide it upwards until it fits snugly in the small opening. Be sure to support the clip with your hand while appplying pressure to avoid damaging the clips.
- Page 5 Use and Care Playmaker LCD uses a Liquid Crystal Display, so please handle with care. It is likely to survive most minor drops and falls, but better to not test that out just in case. Please also ensure it is not placed in an area where pucks or balls are likely to come into direct contact with the display, as this may do permanent damage. DO NOT store Playmaker LCD in an area where it will be exposed to extreme temperatures for a long period of time. (i.e- overnight in a car during a very cold night, or in the afternoon in the hot summer sun). When using in a hockey arena, do not lay the board flat on the ice or store the board in a refridgerated area.
