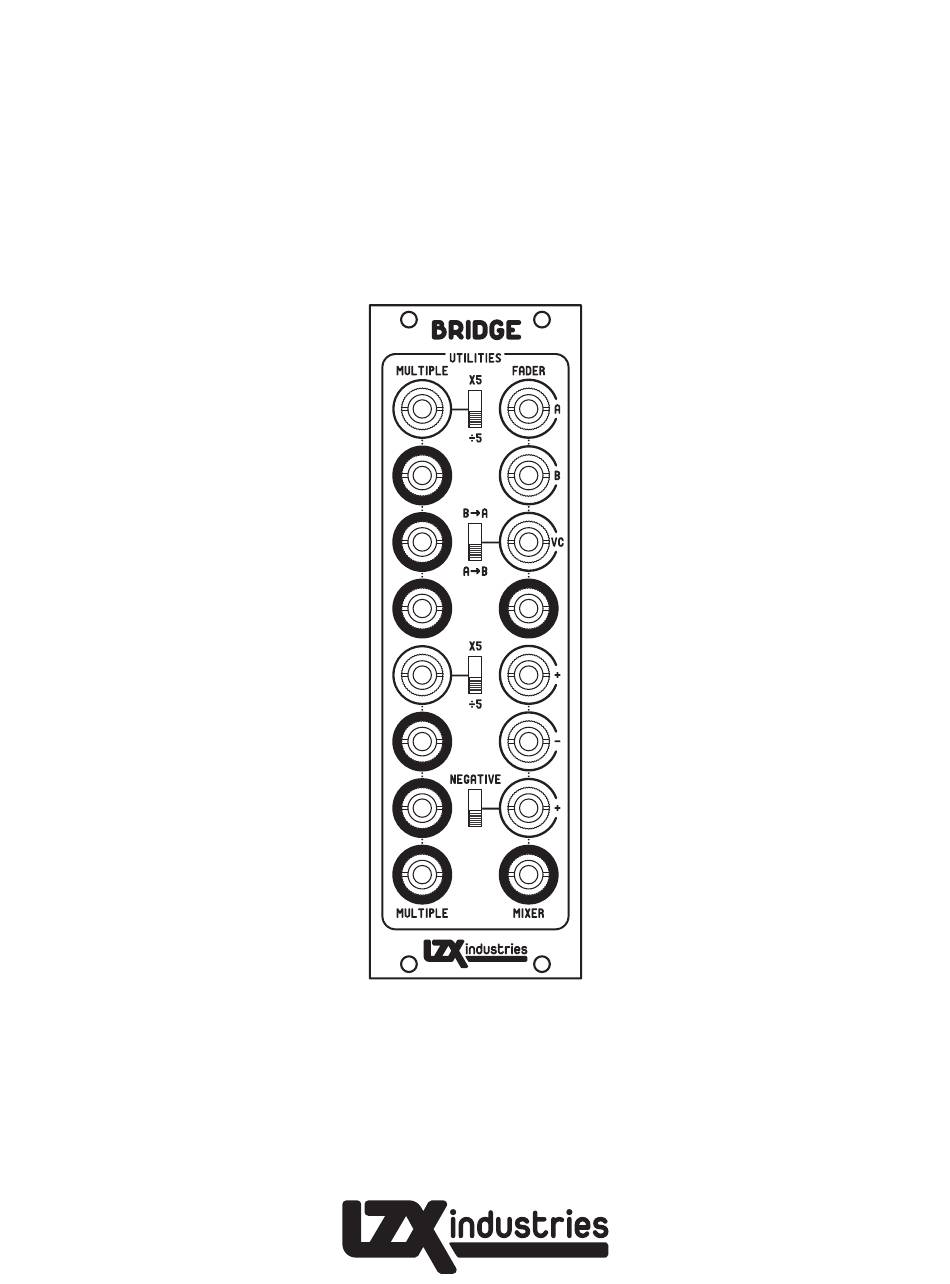

  • Page 1 BRIDGE OWNER’S MANUAL...
  • Page 2 BRIDGES BETWEEN WORLDS Bridge at first glance is a modest selection of utility functions, but like the mundane contents of an adventurer’s backpack, the journey can’t progress as far without it. Our goal with this module was to provide a module that was small, low cost, and provided the kind of functions that one can never have too many of.
  • Page 3 LZX INDUSTRIES BRIDGE BRIDGE OWNER’S MANUAL Written by Lars Larsen Published December, 2016. LZX-BR-OM-V1.0 LZX Industries www.lzxindustries.net 814 SE 14th Ave. lzx@lzxindustries.net Portland, OR 97214 Creative tools for video synthesis and analog image processing.

  • Page 4: Table Of Contents

    LZX INDUSTRIES BRIDGE TABLE OF CONTENTS FEATURES SPECIFICATIONS USER CONTROLS & CONNECTIONS BLOCK DIAGRAM INSTALLATION EXAMPLE PATCHES MANUFACTURER WARRANTY...

  • Page 5: Specifications

    BRIDGE FEATURES Bridge is a multi-function utility module for video synthesizers. It is designed with the simple goal of packing a variety of always useful utility functions into a compact, low cost package. Dual buffered multiples with three outputs and voltage scaling. In amplify setting, input signals are amplified by a factor of five. In attenuate setting, input signals are attenuated by a factor of five.

  • Page 6: User Controls & Connections

    LZX INDUSTRIES BRIDGE USER CONTROLS & CONNECTIONS Buffered Multiple/Scaler #1 input. 0-1V DC expected in buffered multiple or X5 (LZX to Euro) gain mode. 0-5V DC or +/-5V DC expected in /5 (Euro to LZX) attenuation mode. Buffered Multiple/Scaler #1 gain selection switch. In the upper position, the input voltage is amplified X5 to perform LZX (0-1V DC) to EuroRack Audio (0-5V DC) level translation.

  • Page 7: Block Diagram

    LZX INDUSTRIES BRIDGE BLOCK DIAGRAM Channel A + In Cross Fader Channel B - In 3 Input Mixer +|1- In Voltage Control Scaler Input Scaler Input & Buffers & Buffers...

  • Page 8: Installation

    LZX INDUSTRIES BRIDGE INSTALLATION Power down your EuroRack case and disconnect it from AC power outlet while installing new modules. Remove the module from its packaging and connect the 16-pin power cable to the keyed power entry header on the rear of the module as shown.

  • Page 9: Example Patches

    Use the multiples in unity gain mode to send a single output to multiple destinations at the same time. Parallel processing is incredibly powerful in a video system. After setting up a patch you like between other modules, use Bridge’s utility functions to insert more modulation into signals in the patch to add further nuance and visual complexity.

  • Page 10: Manufacturer Warranty

    LZX INDUSTRIES BRIDGE MANUFACTURER’s WARRANTY Fully assembled versions of this product are covered by our manufacturer warranty for one year following the date of manufacture. This warranty covers any defect in the manufacturing of this product., such as assembly errors or faulty components. This warranty does not cover any damage or malfunction caused by incorrect use –...
