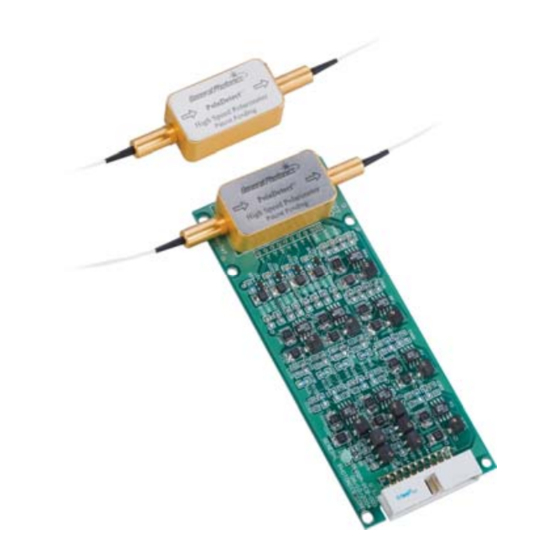

Summary of Contents for General Photonics PolaDetect POD-001
- Page 1 POD-001 ™ PolaDetect In-line high speed polarimeter Operation Manual August 31, 2005 General Photonics Corp. Ph: (909) 590-5473 5228 Edison Ave. Fax: (909) 902-5536 Chino, CA 91710 USA www.generalphotonics.com Document #: GP-UM-POD-001-13 Page 1 of 8...
- Page 2 Table of Contents: Section 1 Specifications Section 2 Overview Section 3 Device description Optical Interface Electrical Interface Section 4 Operation Instructions Getting started Comparing the results with a polarization measurement instrument Document #: GP-UM-POD-001-13 Page 2 of 8...
- Page 3 20-pin with preamplifier Note: 1. Calibration matrices are provided for C-band operation around 1550 nm. Contact General Photonics if the intended operation wavelength is outside C-band. 2. Measurement is against Agilent 8509C polarization analyzer. Document #: GP-UM-POD-001-13 Page 3 of 8...
- Page 4 Section 2. Overview: General Photonics’ in-line polarimeter (PolaDetect) is specially designed for high-speed, low cost polarization monitoring without interrupting data traffic. It outputs four voltage signals for calculating both the degree of polarization (DOP) and the state of polarization (SOP) of the light passing through the device. The measurement applies to the state of the light at the input end of the polarimeter.
- Page 5 02 does. POD-xx-xx-01 is for OEM customers who have mastered the art of polarization analysis and will perform their own calibrations for their power detection circuits. General Photonics will only provide the calibration for the POD-xx-xx-02 with an integrated preamplification circuit designed and fabricated by General Photonics.
- Page 6 General Photonics PolaDetect High speed polarimeter Patent pending 19 17 15 13 11 9 7 5 3 1 O O O O O O O O O O O O O O O O O O O O 20 18 16 14 12 10 8 6 4 2 Fig.
- Page 7 Computer Fig. 3. An example setup for using the PolaDetect polarimeter. Fig. 3 illustrates an example setup using General Photonics’ PolaDetect. In the setup, an optional reference polarization analysis instrument can be used to verify the accuracy of the PolaDetect. An analog-to-digital converter card (A/D card) is used to convert the...
- Page 8 In general, the calibration matrix is wavelength dependent. Each matrix is sufficiently accurate for wavelengths within +/- 5 nm of the specified wavelength. General Photonics provides 5 matrices, at 1520 nm, 1530 nm, 1540 nm, 1550 nm, and 1560 nm,...
