Summary of Contents for BRC BRC802

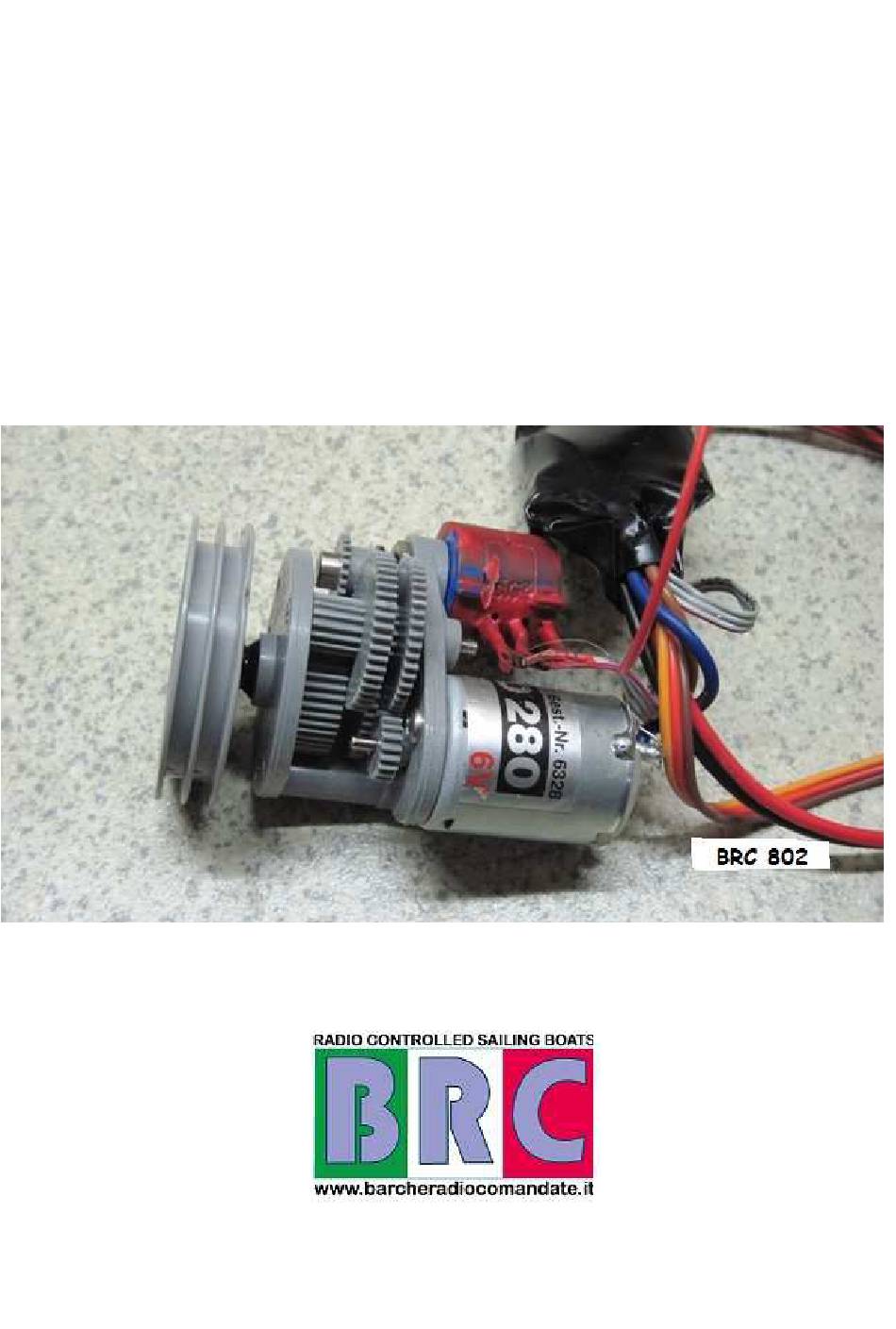

- Page 1 WINCH ASSEMBLY BRC802...
- Page 2 KIT INCLUDES:...
- Page 3 LEGEND: (1): n. 1 gear (2): n. 1 gear (3): n. 1 gear (4): n. 1 gear (5): n. 2 self-tapping screws 2,9x6,5 for motor (6): n. 3 M3 self-locking nuts to the lower support (7): n. 1 seeger ring (8): n.
- Page 4 PREPARATION: 1. With one of the screws (5) threaded holes on the motor to assist in assembly later 2. Insert the three self-locking nuts (6) at the bottom of the lower support (9) 3. Install the bearing (12) in the central part of the superior support (17) 4.
- Page 5 6. On the mast (14) to mount the gear (1) 7. On the superior part of the winch (17) insert a screw 3x30 (13) in hole A 8. On the other side mount the distance tube (11) 9. On the distance tube (11) to mount the gear (2) On the mast (14) to mount the gear (4)
- Page 6 11. On the distance tube (11) assemble the gear (3) 12. On the lower support of the winch (9) mount the motor (20) with the two self- tapping screws (5) and the drive pinion (15) 13. Assemble the superior support of the winch (17) (full gear) on the lower support (9) locking it with the remaining two screws 3x30 (13)
- Page 7 17. Ensure that locking potentiometer NOT interfere with the gear teeth 18. Install the seeger ring (7) at the base of the mast 19. Secure the two screws 3x8 (8) to the superior support (17) 20. Mount the drum (18) on the mast (14) locking it with the washer (10) and the screw 3x8 (8) Motor electric connection...
- Page 8 Winch BRC802 CAUTION: Before you put the drum on the winch, to provide an initial setting, to recognize the point "zero" of the radio to the winch. N.B.:The factory setting expected to, during “full out”, the pulley rotates "Clockwise" and during “full in”...
