DSO 15001K User Manual

Shell
DSO DIY Kit
User Manual
Applicable models: 15001K, 15002K
Applicable firmware version: 113-15001-061 or later

Before you start

1

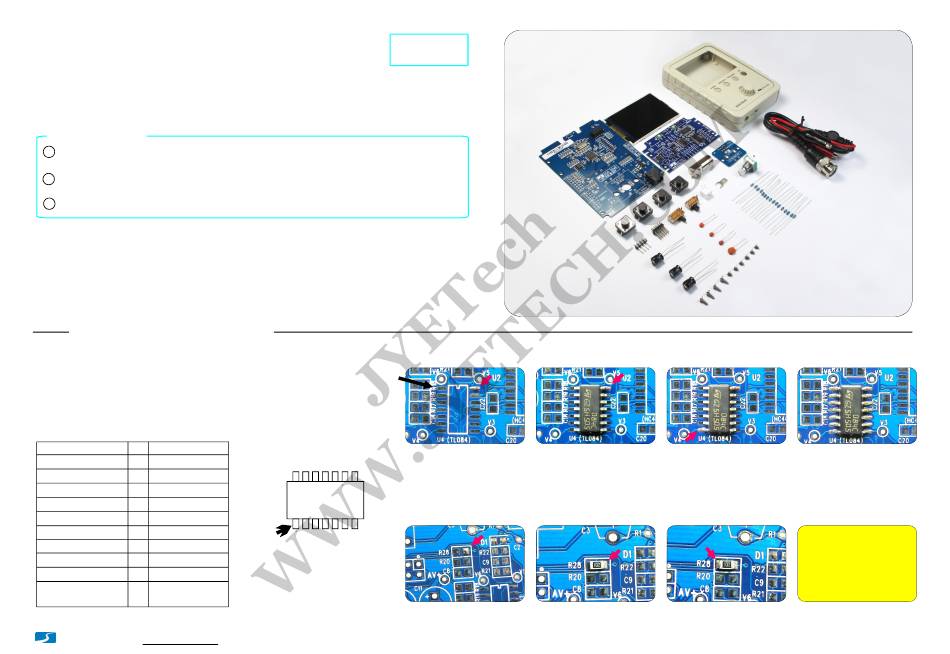

Check kit contents and part quantities/values by the photo at right and part list in page2
and page 3. Report missing or wrong parts to your vendor.
2 Resistor values are easy to mis-read. It is strongly suggested to check their values
by ohm-meter before soldering them to board.
3 Make sure you understand the polarities and orientations of all parts.
Important !!!
If your have purchased 15002K kit (SMD not pre-soldered) you must install all
SMD parts before mounting the through-hole parts. Please refer to the instructions
below for SMD part installation. Otherwise, proceed to page2 to start through-hole
part assembly.
SMD parts are only installed to the analog board (PCB PN# 109-15001-xxx).

How to Solder SMD Parts

1. Before soldering check components against the
part list to make sure you have correct parts.
2. Identify IC orientation and diode polarity (see photos).
3. Do not put iron on one pad for too long time. Otherwise,
traces may peel off and get damaged.
SMD Part Lis
(For PCB 109-15001-00F)
Qty Descriptions
Loc/Ref
1
TL084, SO14
U1
74HC4053, SO16
U2 1
74HC4051, SO16
1
U3
U4 1 78L05, SOT89
1
U5 ICL7660, SO8
U6 1 79L05, SOT89
R19, R20 2 1K,1%, 0805
R17, R18 2 10K,1%, 0805
2
C3, C5 Cap trimmer, 30pF
8
0.1uF, 50V, 0805
C9, C12, C13, C14,
C15, C16, C17, C18
JYE Tech Ltd.
- www.jyetech.com -
See page 2 for
tools needed
Rev. 07
Solder ICs
Pin1
Apply solder to a corner
Identify IC orientation
pad
TL 084 C
Solder two-terminal parts
PIN 1
Place IC in front of
you so that its marking
read from left to right.
The first pin at lower-
left corner is pin 1.
Apply solder to one pad
Solder IC to the pad. Make Solder the pin at the opposite
sure pins are aligned to pads corner so as chip is fixed
Solder the other pad
Solder part to the pad
Solder all the rest pins one
by one
Note:
Photos here are for
illustration only.
They may not match
the real board.
Page 1
