Summary of Contents for atecpool SIROCCO AIHP115

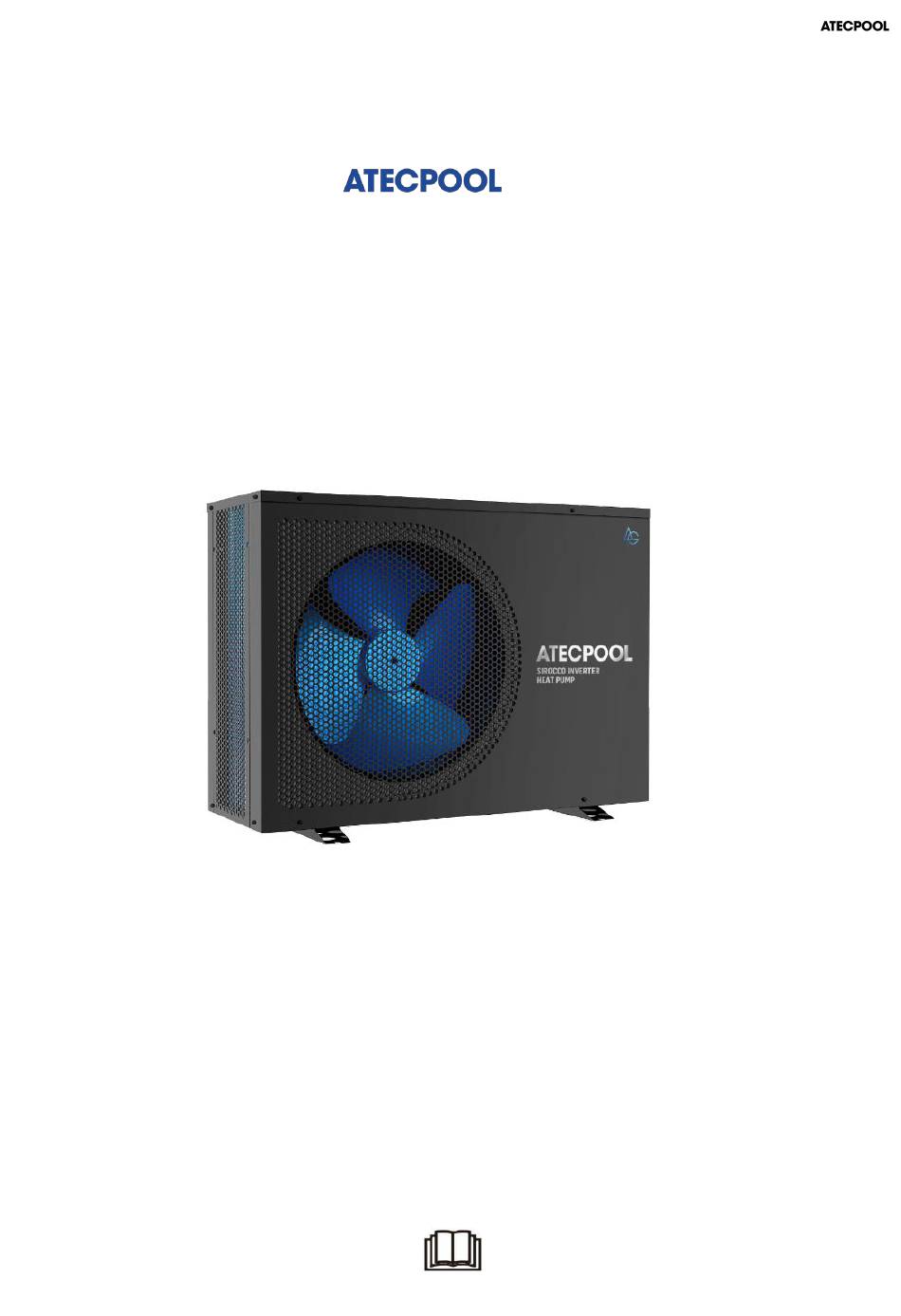

- Page 1 ATECPOOL SIROCCO HEAT PUMP > User Manual SIROCCO INVERTER HEAT PUMP Models: AIHP115 & AIHP180 & AIHP212& AIHP253 FULL DC INVERTER SWIMMING POOL HEAT PUMP USER MANUAL Please read this manual carefully before using and keep it in a safe place.
- Page 2 ATECPOOL SIROCCO HEAT PUMP > User Manual...
-
Page 3: Table Of Contents
ATECPOOL SIROCCO HEAT PUMP > User Manual Contents I. Unit Parameters System Specification 1. Specification 2. Unit Dimensions 3. Exploded View III. Installation Instructions IV. Running Test 1. Inspection Before Running Test 2. Control Function Description 3. Fault Code and Solution... -
Page 4: Unit Parameters
ATECPOOL SIROCCO HEAT PUMP > User Manual Unit Parameters Appearance Please read the below instructions. ● Please install the unit in compliance with local laws, regulations and standards; ● Confirm power voltage and frequency; ● The unit should be installed by a professional installer ⚠... -
Page 5: System Specification
ATECPOOL SIROCCO HEAT PUMP > User Manual System Specification 1. Specification Model AIHP115 AIHP180 AIHP212 AIHP253 Ambient Temperature: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temperature: 26°C/28°C. Heating capacity (kW) 2.8~11.5 4.35~18.0 4.72~21.2 4.78~25.3 Power input (kW) 0.193~1.73 0.306~2.78 0.33~3.59 0.33~4.36 14.5~6.65 14.2~6.47 14.3~5.91... -
Page 6: Unit Dimensions
ATECPOOL SIROCCO HEAT PUMP > User Manual 2. Unit Dimensions Model AIHP115 AIHP180 AIHP212 1125 AIHP253... -
Page 7: Exploded View
ATECPOOL SIROCCO HEAT PUMP > User Manual 3. Exploded View Front plate Right plate Top cover Handle Electrical box cover Motor controller / display Electrical box Motor support EEV component Left plate Right plate Middle plate Compressor Evaporator Four way valve... -
Page 8: Installation Instructions
ATECPOOL SIROCCO HEAT PUMP > User Manual III. Installation Instructions WARNING: Only a professional is allowed to install the heat pump. Unqualified users cannot install by themselves, otherwise the heat pump might be damaged and the user's safety will be risked.This section is provided for information purposes only and must be checked and adapted if necessary, according to actual installation conditions. - Page 9 ATECPOOL SIROCCO HEAT PUMP > User Manual The inlet and outlet water unions can’t stand the weight of soft pipes. The heat pump must be connected with hard pipes! 3. Installation Layout The heat pump is connected to a filtration circuit with a by-pass valve. The by-pass valve should be half-opened (throttled), while all the other valves should be completely opened.
- Page 10 ATECPOOL SIROCCO HEAT PUMP > User Manual 4. Electrical Connection Power Supply Wires Size Power Supply Wires Model Electricity Supply Cable Diameter Specification 3×2.5mm² AIHP115 220-240V/50Hz AWG 14 AIHP180 3×2.5mm² AWG 14 220-240V/50Hz AIHP212 5×4.0mm² AWG 12 380-415V/3N~/50Hz AIHP253 5×4.0mm²...
-
Page 11: Running Test
ATECPOOL SIROCCO HEAT PUMP > User Manual Running Test 1. Inspection Before Running Test a. Please run an inspection test after completing installation; b. Before running test, confirm below items and write √ in the block; ● Unit installed correctly □... -
Page 12: Control Function Description
ATECPOOL SIROCCO HEAT PUMP > User Manual e. Items need to be checked during running test: ● During the first running, check if unit current is normal or not; ● Check if each function button on control panel are functioning correctly or not;... - Page 13 ATECPOOL SIROCCO HEAT PUMP > User Manual ② Panel Symbol Description Symbol Name Symbol Name Symbol Name Heating Mode On-off Silent Mode Defrosting Cooling Mode Smart Mode Powerful Key lock Mode Down Fault Timer Mode Wi-Fi Wi-Fi ③ Operation Guideline List...
- Page 14 ATECPOOL SIROCCO HEAT PUMP > User Manual Long press " " and " " for 3 seconds to enter the clock setting state. First, the hour unit flashes, indicating that the hour value of the current time can be adjusted through "...
- Page 15 ATECPOOL SIROCCO HEAT PUMP > User Manual When off, press " "and" " for 3 seconds in main Celsius/Fahrenheit interface to switch switch Celsius /Fahrenheit. Turn on Electric Long press " " for 3 seconds in main interface to turn Heater Manually on/off the electric heater function.
-
Page 16: Fault Code And Solution
ATECPOOL SIROCCO HEAT PUMP > User Manual 3. Fault Code and Solution 3.1. Fault Code Description During the running process, the unit may run into error and a relevant fault code will be displayed. Please turn off the unit and turn it on unit again after 30 seconds. After the code is no longer displayed, the unit will work normally. - Page 17 ATECPOOL SIROCCO HEAT PUMP > Common Failure Solution Replace the compressor exhaust temperature sensor. Er. 12 High exhaust temp protection Reconnect or clean compressor exhaust temperature sensor and wrap it with insulation tape. Replace the controller or PC Board. Check the connection, change the sensor if Er.
- Page 18 ATECPOOL SIROCCO HEAT PUMP > Common Failure Solution Code Parameters Fault Description Fault Solution IPM over current IPM module issues Replace the inverter module Abnormal press Compressor failure Replace the compressor synchronization Reservation Compressor output phase loss Compressor connection broken, bad contact...
- Page 19 ATECPOOL SIROCCO HEAT PUMP > User Manual 3.2. Troubleshooting Phenomenon Cause Solution Please wait for power supply Power outage. recovery. Power switch is not connected. Connect the power switch. Power switch fuse is burned-out. Replace the fuse. Unit is not running Timing is not up.
-
Page 20: Wifi Settings
ATECPOOL SIROCCO HEAT PUMP > User Manual WIFI Settings Press and hold the "-" and " " keys at the same time for 3 seconds to enter the WI-FI " icon will flash fast for 3 seconds and then network. When entering, the "... - Page 21 ATECPOOL SIROCCO HEAT PUMP > User Manual When an user enters the registration page, please follow the steps to register your user User Login: Once the registration is successful, the software will jump to the login screen. Enter the correct "user name" and "password" to log in.
- Page 22 ATECPOOL SIROCCO HEAT PUMP > User Manual Mobile phone needs to be connected to the network via WIFI This WIFI is not the WIFI inside the module, it is a WIFI network that you can connect to the unit . After the user logs in to the APP, device connection is needed.
- Page 23 ATECPOOL SIROCCO HEAT PUMP > User Manual When device type selected,go to add "device interface".
- Page 24 ATECPOOL SIROCCO HEAT PUMP > User Manual...
- Page 25 ATECPOOL SIROCCO HEAT PUMP > User Manual Wait for the pairing process to end and then enter the distribution network process.
- Page 26 ATECPOOL SIROCCO HEAT PUMP > User Manual Unit successfully added,showing device connected. Click to enter control.
- Page 27 ATECPOOL SIROCCO HEAT PUMP > User Manual 106-10020-017...
