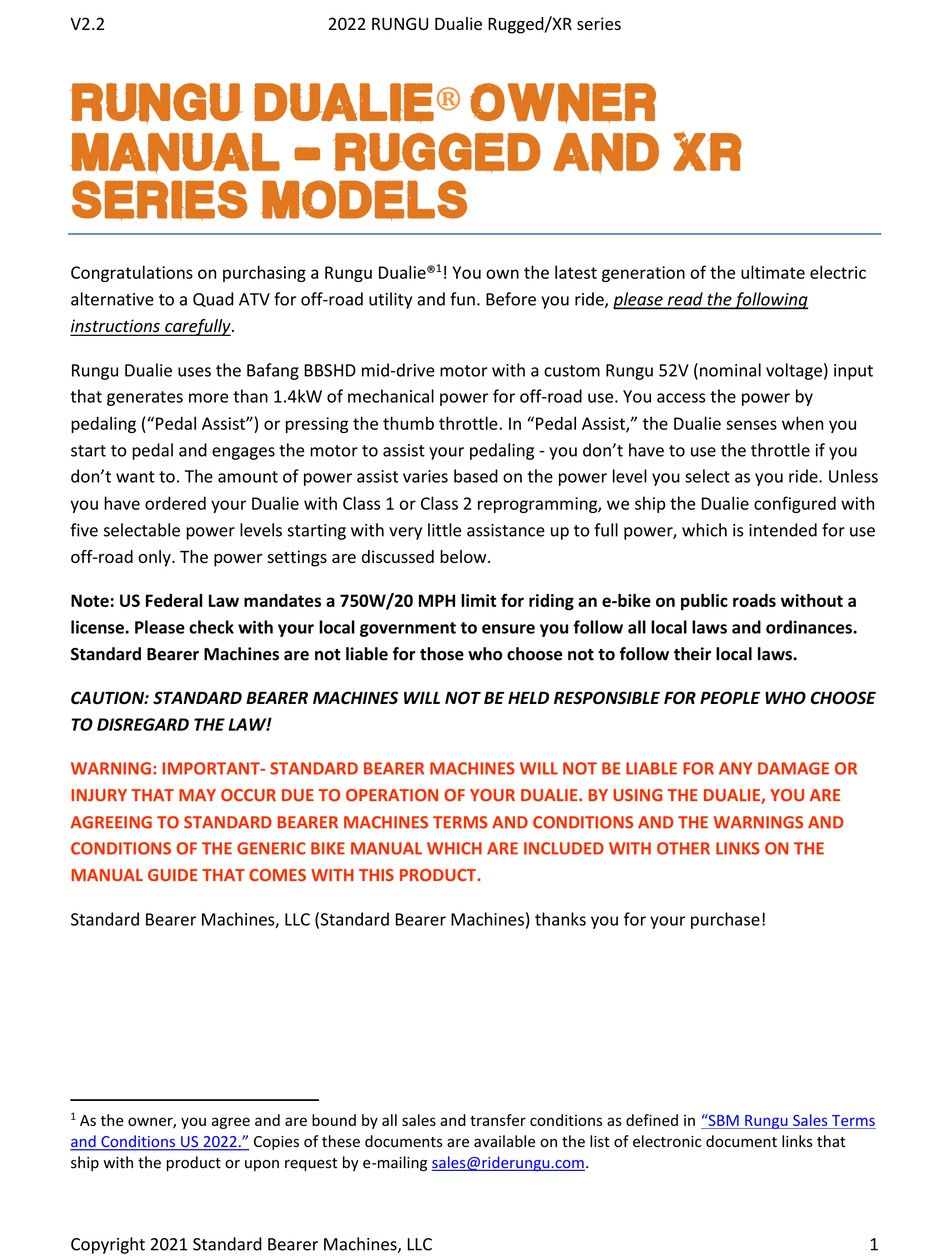

V2.2
2022 RUNGU Dualie Rugged/XR series
®
rungu dualie
owner
manual - rugged and xr
series models
1
Congratulations on purchasing a Rungu Dualie®
! You own the latest generation of the ultimate electric
alternative to a Quad ATV for off-road utility and fun. Before you ride, please read the following
instructions carefully.
Rungu Dualie uses the Bafang BBSHD mid-drive motor with a custom Rungu 52V (nominal voltage) input
that generates more than 1.4kW of mechanical power for off-road use. You access the power by
pedaling ("Pedal Assist") or pressing the thumb throttle. In "Pedal Assist," the Dualie senses when you
start to pedal and engages the motor to assist your pedaling - you don't have to use the throttle if you
don't want to. The amount of power assist varies based on the power level you select as you ride. Unless
you have ordered your Dualie with Class 1 or Class 2 reprogramming, we ship the Dualie configured with
five selectable power levels starting with very little assistance up to full power, which is intended for use
off-road only. The power settings are discussed below.
Note: US Federal Law mandates a 750W/20 MPH limit for riding an e-bike on public roads without a
license. Please check with your local government to ensure you follow all local laws and ordinances.
Standard Bearer Machines are not liable for those who choose not to follow their local laws.
CAUTION: STANDARD BEARER MACHINES WILL NOT BE HELD RESPONSIBLE FOR PEOPLE WHO CHOOSE
TO DISREGARD THE LAW!
WARNING: IMPORTANT- STANDARD BEARER MACHINES WILL NOT BE LIABLE FOR ANY DAMAGE OR
INJURY THAT MAY OCCUR DUE TO OPERATION OF YOUR DUALIE. BY USING THE DUALIE, YOU ARE
AGREEING TO STANDARD BEARER MACHINES TERMS AND CONDITIONS AND THE WARNINGS AND
CONDITIONS OF THE GENERIC BIKE MANUAL WHICH ARE INCLUDED WITH OTHER LINKS ON THE
MANUAL GUIDE THAT COMES WITH THIS PRODUCT.
Standard Bearer Machines, LLC (Standard Bearer Machines) thanks you for your purchase!
1
As the owner, you agree and are bound by all sales and transfer conditions as defined in
"SBM Rungu Sales Terms
and Conditions US 2022."
Copies of these documents are available on the list of electronic document links that
ship with the product or upon request by e-mailing sales@riderungu.com.
Copyright 2021 Standard Bearer Machines, LLC
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rungu Dualie Rugged Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Standard Bearer Machines Rungu Dualie Rugged Series

  • Page 1 Please check with your local government to ensure you follow all local laws and ordinances. Standard Bearer Machines are not liable for those who choose not to follow their local laws. CAUTION: STANDARD BEARER MACHINES WILL NOT BE HELD RESPONSIBLE FOR PEOPLE WHO CHOOSE...

  • Page 2: Table Of Contents

    Reading the dashboard ........................69 Accessing the display settings ......................70 Toggling the Rungu E-Light on and off ....................71 Turning off Dualie ..........................71 Built-in USB charging port ........................71 PIN Code .............................. 71 Copyright 2021 Standard Bearer Machines, LLC...
  • Page 3 How to replace the rear wheel ......................92 30. Fixing a broken chain ........................95 31. Wheel magnet alignment – “Error 21” ..................98 32. Transporting Rungu Dualie ......................100 Technical Information ..........................100 33. Default Display Settings ....................... 100 Copyright 2021 Standard Bearer Machines, LLC...
  • Page 4 34. Dimensions........................... 101 35. Performance ..........................102 36. Electrical ............................102 Troubleshooting ............................103 37. Electrical ............................103 38. Motor and System Performance ....................104 39. Mechanical ........................... 105 Getting more information ......................... 106 Copyright 2021 Standard Bearer Machines, LLC...

  • Page 5: Rungu Dualie Parts Identification

    V2.2 2022 RUNGU Dualie Rugged/XR series Rungu Dualie parts identification The following images show the names of various components on a Rungu Dualie Figure 1 Right Side View Figure 2 Steering assembly Copyright 2021 Standard Bearer Machines, LLC...
  • Page 6 V2.2 2022 RUNGU Dualie Rugged/XR series Figure 3 Parking Brake View Copyright 2021 Standard Bearer Machines, LLC...

  • Page 7: Unpacking And Assembly Instructions

    Unpacking and Assembly Instructions Before you ride and make new tracks, please follow the assembly instructions carefully. The team at Standard Bearer Machines recommends that you have the assembly performed by a qualified bike mechanic. WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY LEAD TO INCOMPLETE OR FAULTY ASSEMBLY THAT CAN RESULT IN ACCIDENTAL RIDER INJURY OR DEATH.

  • Page 8: Instructions

    CAUTION: DUALIE FRAME AND REAR WHEEL WEIGH MORE THAN 60 LBS (27 KG). USE TWO (2) PEOPLE TO REMOVE THE DUALIE FROM THE CARTON TO AVOID INJURY. 44. Remove the packaging from the front forks steering assembly and handlebars. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 9 46. Open the right-side handlebar clamp to allow placement of the right-side handlebar. 47. Place the right-side handlebar in the clamp such that there’s a 1/8” gap between the handlebar end stop and the side of the stem as seen from the front of the handlebar. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 10 Middle hashmark Upper inside edge CAUTION: FAILURE TO EXTEND THE HANDLEBAR AS SHOWN MAY RESULT IN WHEELS MAKING CONTACT WITH FORKS, WHICH CAN LEAD TO FORK OR TIRE DAMAGE. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 11 RESULT IN ACCIDENTAL RIDER INJURY OR DEATH. 51. Repeat steps 6 through 11 for the left-side handlebar. 52. Install the keypad control by using a 2.5 mm hex wrench to remove the retention screw from the back of the keypad. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 12 V2.2 2022 RUNGU Dualie Rugged/XR series 53. Mount the keypad onto the left handlebar and slide the keypad near the throttle. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 13 “Right”. This means that the brakes have been adjusted differently for each wheel – use the labels to guide which wheel mounts on which side. Note: The left side is considered the side with the brake rotors. The right side has the chain and gearing. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 14 57. Remove the two quick release skewers from the accessories box. Unscrew the end cap nut from the quick-release skewers and remove one of the two conical springs for each skewer. 58. Insert the skewer into the LEFT wheel from the side of the brake disc as shown below. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 15 59. Replace the conical spring (small end first) on the other side of the wheel. Screw the end cap on a few turns to ready the wheel for installation. 60. Prep the RIGHT wheel. Insert the other skewer into the RIGHT wheel from the side OPPOSITE to the brake disc as shown below. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 16 Using the parking brake ” on page 83 more information. 63. Lift the front of the bike and mount the RIGHT wheel to the RIGHT fork making sure that the rotor fits between the brake caliper pads. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 17 65. Tilt the bike and mount the LEFT wheel to the LEFT fork making sure that the rotor fits between the brake caliper pads. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 18 WARNING: MAKE SURE TO TIGHTEN THE QUICK-RELEASE IN THE FORK SO THAT THE WHEEL CANNOT FALL OUT OF THE FORK; FAILURE TO ADEQUATELY TIGHTEN THE QUICK-RELEASE CAN RESULT IN ACCIDENTAL RIDER INJURY OR DEATH. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 19 WARNING: MAKE SURE TO TIGHTEN THE QUICK-RELEASE IN THE FORK SO THAT THE WHEEL CANNOT FALL OUT OF THE FORK; FAILURE TO ADEQUATELY TIGHTEN THE QUICK-RELEASE CAN RESULT IN ACCIDENTAL RIDER INJURY OR DEATH. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 20 Then hold the threaded section of the pedal in the crank arm mounting hole and spin the entire crank arm in a counterclockwise motion as depicted below. CAUTION: DO NOT FORCE THE THREADING OF THE PEDAL ONTO THE CRANKSET. WARRANTY DOES NOT COVER REPLACEMENT CRANKS FOR STRIPPED THREADS. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 21 2022 RUNGU Dualie Rugged/XR series 71. Use a 6mm Hex wrench to tighten the pedal once the pedal is fully inserted. 72. Install the LEFT Pedal next – LEFT pedal is marked with an “L” as shown below. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 22 CAUTION: DO NOT FORCE THE THREADING OF THE PEDAL ONTO THE CRANKSET. WARRANTY DOES NOT COVER REPLACEMENT CRANKS FOR STRIPPED THREADS. 74. Use a 6mm Hex wrench to tighten the pedal once the pedal is fully inserted. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 23 Instructions for installation. If you have purchased (or you also have) the Rungu Cargo Rack, please refer to the Rungu Cargo Rack installation instructions for assembly. 78. Before riding, refer to the section Operating the Dualie. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 24: Additional Installation Instructions - Mud Guards

    1. Remove the mud flaps from packaging along with their screws and retention nuts. Remove the retention nut from each screw. You’ll need a crescent wrench (or 10 mm socket wrench) and a 5mm hex wrench to install the fenders Copyright 2021 Standard Bearer Machines, LLC...
  • Page 25 2. Slide the mud guard from front of fork backwards until mounting tab aligns with mounting hole on fork bridge. 3. Align the mounting slot with the mounting hole on the fork bridge. Install the screw from the front of the fork through the mounting slot as shown below. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 26 V2.2 2022 RUNGU Dualie Rugged/XR series 4. Thread the nut onto the back of the screw behind fork bridge. 5. Use an adjustable wrench or 10 mm socket wrench to secure the nut. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 27 2022 RUNGU Dualie Rugged/XR series Use a 5mm hex wrench to continue threading the nut onto the screw 7. Before fully tightening the nut, slide the mud guard up vertically to maximize wheel clearance. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 28 8. Adjust the mud flap to align it with the tire and fully tighten the nut. 9. Bend the mud guard forward to allow even clearance between the mudguard and the tire. 10. Repeat these steps for the second mud flap. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 29: Additional Installation Instructions - Rungu Cargo Rack With Or Without Range-Extending Battery

    2. Place the rack over the rear tire making sure that the tabs at the bottom of the rack are on the outside of the metal rack supports. Metal rack support (left) Metal rack support (right) Copyright 2021 Standard Bearer Machines, LLC...
  • Page 30 4. Align the front rack tab with the mounting bracket and place an M8 screw and washer through the mounting bracket hole. Thread the screw into the threaded hole on the front of the rack. Finger tighten. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 31 6. Align the holes in the tab at the bottom right side of the rack with the fastening location on the right-side metal rack support. Thread an M8 screw and washer through the tab and into the rack support. Finger tighten the screw. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 32 8. Use the keys provided to open the access door to the rear battery and insert the end of the cable harness into the rear battery compartment through the hole provided in the left side of the Cargo Rack. 9. Push all three connectors into the battery compartment. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 33 10. Working from the inside and the outside of the rack squeeze the grommet on the harness into place so that it covers the entire hole in the battery case and secures the cable harness. 11. Push at least one inch of the cable wrapped harness into the battery compartment. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 34 Tuck the wiring between the front of the battery and the front of the box to keep them out of the way of the locking lid. Make sure the cabling doesn’t interfere with the latch mechanism and close and lock the lid. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 35 THE REAR WHEEL AND THE OPERATION OF THE REAR BRAKE. CAUTION: AVOID THREADING THE CABLE HARNESS THROUGH THE HOLES IN THE RACK. DOING SO MAY CAUSE WEAR ON CABLE HOUSING RESULTING IN A SHORT CIRCUIT, SHOCK OR FIRE. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 36: Additional Installation Instructions - Pannier Bags

    1. Adjust the bottom clip using the adjustment knob on the bag so that the clip faces down. Align the bag with the bottom mount so that the clip mount channel fits between the two pannier bag mount blocks. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 37 2. Adjust the upper quick-release catches using the adjustment knobs so that the catches fit between the two upper mounting blocks. 3. Push down on the pannier while pulling up on the quick release strap. This opens the two catches so that they engage the upper mounting tube. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 38 V2.2 2022 RUNGU Dualie Rugged/XR series 4. Lower the pannier onto the upper mounting tube and let go of the quick release strap. This locks the pannier in place. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 39: Cautions And Safety

    DON’T RUB AGAINST THE FRONT WHEELS. GRASPING THE TIE ROD WHEN LIFTING WILL RESULT IN A PINCH TO THE HAND AND FINGERS THAT MAY LEAD TO HAND OR FINGER INJURY. ONLY GRASP PARTS OF THE FRAME OR SADDLE TO LIFT DUALIE. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 40: Battery Safety

    As much as Standard Bearer Machines and its battery manufacturers invest to minimize the risk of these state-of-the-art batteries, there are always safety concerns with Lithium-Ion Batteries. All new portable electronics, including cell phones and laptops, contain lithium batteries.

  • Page 41: Battery Safety Precautions

    CAUTION: CHARGING ON A CONCRETE FLOOR, SUCH AS IN A GARAGE, AWAY FROM DEBRIS AND MATERIAL IS ALWAYS RECOMMENDED AS A SAFETY PRECAUTION. Battery Safety Precautions Standard Bearer Machines recommends keeping the following immediately accessible where you recharge your Rungu •...

  • Page 42: Battery Safety (In Depth)

    • Crush, puncture, or disassembly Standard Bearer Machines uses batteries that meet Air Cargo standards (UN38.3 certified), so they are tolerant of adverse conditions, but these highly active chemical systems have limitations. Certain hazards are associated with exposure to heat and its subsequent effects on sealed cells. These hazards include the potential for cell venting, explosion, and/or fires.

  • Page 43: Battery Failure Response Procedure

    Remove the battery from the area once it is cool. • Dispose of the cell in accordance with waste or recycling protocols. • For more information on Lithium batteries, please visit Battery University as a source of knowledge. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 44: Operating Rungu Dualie

    North America. 220V refers to 220-240VAC 50Hz common to Europe and Asia. If the voltage input switch is set incorrectly for your voltage standard, use the blade of a small screwdriver to push the switch to the correct setting. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 45 2022 RUNGU Dualie Rugged/XR series 2. Unscrew the battery charging port access cover on the right side of the battery case 3. Remove the cover and place it in a location where it won’t get lost Copyright 2021 Standard Bearer Machines, LLC...
  • Page 46 THE CHARGER AS SOON AS POSSIBLE OR WITHIN A FEW HOURS OF COMPLETING A FULL CHARGE. FAILURE TO DO SO MAY CAUSE THE BATTERY TO SWELL AND FAIL. A SWOLLEN BATTERY IS NOT COVERED BY THE WARRANTY. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 47 CAUTION: DO NOT LEAVE CHARGER PLUGGED INTO WALL AFTER COMPLETING CHARGING – THIS MAY DAMAGE THE BATTERY CHARGER. UNPLUG OR OTHERWISE DISCONNECT THE CHARGER FROM AC POWER WHEN IT IS NOT IN USE. FAILURE TO DO SO WILL VOID YOUR WARRANTY. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 48: Charging Your Main Battery After Removing The Battery- Frame Battery

    CAUTION: THE BATTERY HAS PADDING INSIDE OF THE MAIN BATTERY CASE TO MINIMIZE SHOCK AND VIBRATION; TURNING THE KEY MAY REQUIRE THAT YOU OVERCOME THE PRESSURE FROM THIS PADDING. DO NOT REMOVE THE PADDING. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 49 3. Grasp the battery and pull it up and forward. CAUTION: IF YOU DECIDE TO REMOVE THE BATTERY, MAKE SURE YOU HAVE THE GRIP AND ARM STRENGTH TO REMOVE IT – THE BATTERY WEIGHS APPROXIMATELY 10 LBS. (4.5 KGS). Copyright 2021 Standard Bearer Machines, LLC...
  • Page 50 WARNING: ONLY PULL ON THE YELLOW CONNECTORS TO DISCONNECT. DO NOT USE THE WIRES TO PULL THE CONNECTORS APART. DOING SO MAY EXPOSE INTERNAL WIRING AND LEAD TO A SHORT CIRCUIT, SPARKS OR FIRE. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 51 80% capacity of the battery when riding if possible . CAUTION: REFER TO THE BATTERY CARE SECTION IN THIS DOCUMENT FOR MORE INSTRUCTIONS ON HOW TO MAXIMIZE THE LIFE OF YOUR BATTERIES. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 52 CHARGER FROM AC POWER WHEN IT IS NOT IN USE. FAILURE TO DO SO WILL VOID YOUR WARRANTY. 8. Replace the cover by fitting the two tabs into the slots at the bottom of the case Copyright 2021 Standard Bearer Machines, LLC...
  • Page 53 10. Use the same technique as in step 1 to hold the cover in place while using the key to close the latch. 11. Remove the key from the latch and put it away to avoid losing it. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 54: Charging Dual Batteries Without Removing The Batteries - Dualie Xr Models

    60Hz common to North America. 220V refers to 220-240VAC 50Hz common to Europe and Asia. If the voltage input switch is set incorrectly for your voltage standard, use the blade of a small screwdriver to push the switch to the correct setting. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 55 CAUTION: THERE IS AN ADDITIONAL PIGTAIL OUTPUT CABLE THAT MAY OR MAY NOT BE COVERED WITH TAPE. DO NOT USE THIS CONNECTOR TO CHARGE THE BATTERY. MAKE SURE TO ONLY USE THE CONNECTORS IDENTIFIED IN THE PICTURE BELOW. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 56 WARNING: TAKE CARE TO PLACE THE CHARGING CABLE AWAY FROM THE LATCH TO AVOID DAMAGING THE CABLE AND SHORTING THE BATTERY. BATTERIES FROM SHORTED CABLES AND SEVERED BATTERY CABLES ARE NOT COVERED BY YOUR RUNGU WARRANTY. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 57 GOOD - cables placed away from door and key latch BAD - cables obstruct door closure 10. Lower the door over the battery. 11. Lock the latch and remove the key from the latch and put it away to avoid losing it. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 58: Removing Dual Batteries For External Charging - Dualie Xr

    CAUTION: THE BATTERY HAS PADDING INSIDE OF THE RACK TO MINIMIZE SHOCK AND VIBRATION; TURNING THE KEY MAY REQUIRE THAT YOU OVERCOME THE PRESSURE FROM THIS PADDING. DO NOT REMOVE THE PADDING FROM THE BATTERY. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 59 The connector is keyed, so there is only one way that the plug will fit. NOTE: You may hear a “pop” sound when you plug in the charger that comes from a spark that occurs inside the connectors when the two connectors mate. This occurs if you Copyright 2021 Standard Bearer Machines, LLC...
  • Page 60 WARNING: TAKE CARE TO PLACE THE CHARGING CABLE AWAY FROM THE LATCH TO AVOID DAMAGING THE CABLE AND SHORTING THE BATTERY. BATTERIES FROM SHORTED CABLES AND SEVERED BATTERY CABLES ARE NOT COVERED BY YOUR RUNGU WARRANTY. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 61 GOOD - cables placed away from door and key latch BAD - cables obstruct door closure 15. Lower the door over the battery. 16. Lock the door and remove the key from the latch and put it away to avoid losing it. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 62: Inflating Tires - Using Presta Valve Adapters

    1. Unscrew the protective cap from the presta valve on the tire you want to inflate. 2. Unscrew the captive nut on the top of the presta valve to allow air to flow into the tire. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 63 3. Screw on the Presta valve adapter. 4. Connect the bike tire pump and inflate tire to the pressure appropriate for where you’re riding – as recommended in the before you ride section of this document. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 64 BE RE-FASTENED TO RETAIN TIRE AIR PRESSURE. 6. Tighten the captive nut on the top of the Presta valve to keep the valve from leaking air. 7. Replace the protective cap, which protects the captive nut and thread from corrosion. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 65: Before You Ride - Safety Check

    2022 RUNGU Dualie Rugged/XR series Before you ride – Safety Check Note: If you have assembled the DUALIE yourself, Standard Bearer Machines recommends you take the DUALIE to a local bike shop for final tuning and adjustment. As explained in the unpacking and assembly instruction, Standard Bearer Machines recommends the DUALIE to be assembled professionally once you receive it.
  • Page 66 WARNING: TAKE CARE TO PLACE THE CHARGING CABLE AWAY FROM THE LATCH TO AVOID DAMAGING THE CABLE AND SHORTING THE BATTERY. BATTERIES FROM SHORTED CABLES AND SEVERED BATTERY CABLES ARE NOT COVERED BY YOUR RUNGU WARRANTY. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 67 CAUTION: AVOID UNDERINFLATING AND OVER INFLATING THE TIRES. UNDER INFLATION (BELOW 5 PSI) WILL PREVENT THE TIRE FROM SEATING ON THE RIM AND PREVENT YOU FROM RIDING DUALIE. OVER INFLATION (MORE THAN 15 PSI – 103 KPA) MAY RESULT IN TIRE BLOW-OUT WHILE RIDING. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 68: Using The Control Keypad And Understanding The Dashboard

    Press and hold the on/off switch for one to two seconds. The Display will show a start-up screen and then show the dashboard. The guide and some of the images reference a “Sport” and “ECO” mode. The 52V standard only uses the Sport mode. Ignore references to ECO mode. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 69: Reading The Dashboard

    Rungu E-light toggle on the keypad again for one to two seconds. The guide and some of the images reference a “Sport” and “ECO” mode. The 52V standard only uses the Sport mode. Ignore references to ECO mode. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 70: Accessing The Display Settings

    “Rungu MDV Display User Guide” that you can find online at this link The guide and some of the images reference a “Sport” and “ECO” mode. The 52V standard only uses the Sport mode. Ignore references to ECO mode. Same Copyright 2021 Standard Bearer Machines, LLC...

  • Page 71: Toggling The Rungu E-Light On And Off

    Dualie can also help you push if you are walking alongside. Hold the “-“ key down for more than two seconds; the motor turns and will help you push Dualie at approximately 3 miles per hour – walking pace. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 72: Riding The Rungu Dualie

    If you do not use a Rungu Chainguard, but ride with long pants, use a pants cuff protector to keep your pants cuff from getting caught in the chain. Pants cuff protectors are commonly available where bikes or sold and from Amazon as shown below. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 73 WARNING: RIDING WITH LONG PANTS WITHOUT USING A PANTS CUFF PROTECTOR OR CHAINGUARD MAY CAUSE THE CHAIN AND CHAINRING TO CATCH YOUR PANTS CUFF, WHICH CAN LEAD TO LOSING CONTROL OF THE RUNGU DUALIE AND SEVERE INJURY OR DEATH. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 74: Using Derailleur (Gear) Shifters

    Changing gears with the BOX Prime 9 system If you have the derailleur pictured below, your Dualie is equipped with the BOX Prime 9 system. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 75 Trigger decreases the gear by one gear at a time starting in ninth gear. A short press of the Upper Thumb Trigger increases the gear by one gear at a time starting with first gear. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 76: How And When To Change Gears

    Avoid changing gears without pedaling or when experiencing heavy load going up hills or deep snow. Read the section below for more information. CAUTION: RUNGU WARRANTY DOES NOT COVER DAMAGED/WORN CASSETTES AND BROKEN CHAINS. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 77: Understanding And Changing Rungu Dualie Power Level

    Dualie is configured for off-road riding only unless otherwise specified by the customer and configured accordingly at the factory. Classification according to California Ebike Standards. Learn more at https://en.wikipedia.org/wiki/Electric_bicycle_laws#California Ibid. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 78: Power Level And Gear Combination Guidelines

    60% of a full rotation; not so good for maintaining higher speeds, but great for getting the most torque out of the motor for hill climbs and on soft ground (snow, sand and Copyright 2021 Standard Bearer Machines, LLC...

  • Page 79: Power Level Selection Guidelines: Problems Resulting From Not Following Gear Shifting

    FORCE AND CAN BREAK A LINK. IF YOU PLAN TO OPERATE DUALIE IN DIFFICULT OR CHALLENGING TERRAIN BE PREPARED. ALWAYS CARRY AN EXTRA CHAIN FOR REPLACEMENT. Bent 3rd gear cog resulting from gear change while hill-climbing and power level set to 5 – older Shimano cassette Copyright 2021 Standard Bearer Machines, LLC...
  • Page 80 Guide” that you can find online at this link The guide and some of the images reference a “Sport” and “ECO” mode. The 52V standard only uses the Sport mode. Ignore references to ECO mode. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 81: Rungu Dualie Operation Cautions

    8. ALWAYS follow local laws regarding your Dualie. If your Dualie is over legal speed and power limits, reduce your power level to legal limits when riding on public roads or property. 9. MINIMIZE shifting gears at power level 5 to increase chain life. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 82: Riding Safety

    The team at Rungu recommends leaving the suspension activated (not locked out) for all terrain, but you may want to try de-activating the suspension if you’re in deeper snow for better carving capability. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 83: Using The Parking Brake

    The knob holds the brake lever in place, which in turn holds the dual front rotors in place and prevents Rungu Dualie from moving when parked. The parking brake is very useful when parking on an angled surface. Engaging the parking brake disables the motor. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 84 Release the brake lever. REMEMBER to switch off the parking brake before riding. NOTE: Riding with the parking brake engaged produces significant wear on the brake pads leading to a decrease in brake pad life and stopping power. Warranty DOES NOT cover replacement brake pads. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 85: Rungu Dualie Maintenance, Care And Repair

    Storage When Not Using Dualie for Periods of Two Weeks or Longer Standard Bearer Machines selected these batteries and the electrical system to be as maintenance free as possible. In the event you plan to not use the Dualie for a period of more than three weeks, open the battery case (or cases), disconnect the battery from both connectors, and remove the battery(ies) and store it (them) with ~50% charge (around 50-52V).

  • Page 86: Prolonging The Life Of Your Battery - Best Practices

    The lower the power level, the less stress (and heat) it puts on the battery cells and battery management system. This equates to a longer cycle life and better performing battery. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 87: Chain Maintenance - Cleaning And Lubrication Every 40 Miles Of Hard Use

    Second Choice White Lighting Wet Ride Sand/soft sand/beach White Lightning Clean Ride or Boeshield T-9 Snow/Rain First choice Muc-Off E-bike Wet Weather Ceramic Lube (ebike wet chain lube) – Second Choice White Lighting Wet Ride Copyright 2021 Standard Bearer Machines, LLC...

  • Page 88: Maintenance - After Strenuous Rides, And Every 500 Miles Or Six Months

    The same is true for brake pads. Check the components tab on the Support page of the Rungu Website to find links to useful maintenance videos appropriate for the Dualie. Standard Bearer Machines periodically updates these links, if you cannot find information you need send an email to support@riderungu.com. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 89: Rear Wheel Removal Or Replacement

    2. If possible, find an object (e.g. empty bucket, cardboard box) that you can use to support the bike after the rear wheel is removed. Alternatively, hang the rear triangle from straps or ropes to support the rear triangle after the rear wheel is removed. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 90 5. The wheel will drop out and the cassette will get caught on the derailleur pulley. 6. Push back on the derailleur cage so the wheel can drop further. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 91 2022 RUNGU Dualie Rugged/XR series 7. Move the chain above the cassette so it doesn’t interfere with wheel removal. 8. Put the rear wheel aside and support the frame as noted above while you service the rear wheel. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 92: How To Replace The Rear Wheel

    2. Remove any support for the frame and lower the frame so the axle of the wheel moves up into the dropouts. Take care to slide the brake rotor between the brake caliper pads on the left side of the bike. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 93 As a guideline the end cap nut should begin to clamp onto the left drop out when the quick release lever points away from the wheel at a right angle. 4. Close the quick release lever. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 94 Rungu for more than five minutes to make sure the speedometer is working. WARNING: MAKE SURE TO TIGHTEN THE QUICK-RELEASE IN THE FRAME SO THAT THE WHEEL CANNOT FALL OUT; FAILURE TO ADEQUATELY TIGHTEN THE QUICK-RELEASE CAN RESULT IN ACCIDENTAL RIDER INJURY OR DEATH. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 95: Fixing A Broken Chain

    (smallest cog) and over the chainstay. The images below show how the chain feeds through the Advent and Box 9 Derailleurs. 3. Drape the end of the other end of the chain over the chainring so one end dangles from the chainring or pedal and other from the derailleur. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 96 4. Insert the pins of each side of the master link into the ends of the chain. 5. Pull the chain together and align the pins with the slots on the master link plates. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 97 You should feel the master links “click” into place. Rotate the chain to verify the master links are set. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 98: Wheel Magnet Alignment - "Error 21

    Dualie. If not contact Rungu or go online to obtain a replacement sensor. Sensor Magnet 2. Check that the cabling attached to the sensor is attached to the motor. Copyright 2021 Standard Bearer Machines, LLC...
  • Page 99 If you are replacing a magnet, place the magnet so that the face of the magnet faces the sensor and algins with the oblong recess on the sensor – it has the word “Bafang” embossed. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 100: Transporting Rungu Dualie

    Technical Information Default Display Settings Units: Imperial Brightness: 100% MAX PAS: 5 Auto Off: 2 minutes Power View: Power SOC View: Volts Trip Reset: No AL Sensitivity: Off Password: None Copyright 2021 Standard Bearer Machines, LLC...

  • Page 101: Dimensions

    V2.2 2022 RUNGU Dualie Rugged/XR series Dimensions Copyright 2021 Standard Bearer Machines, LLC...

  • Page 102: Performance

    V2.2 2022 RUNGU Dualie Rugged/XR series Performance Electrical Copyright 2021 Standard Bearer Machines, LLC...

  • Page 103: Troubleshooting

    AC, replace the fuse in your charger. Then try charging the battery again. If this fails to charge the battery, 2. Reset the battery (see above), and then plug it into the charger. If this fails to charge the battery, 3. Call Rungu to talk through other troubleshooting steps. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 104: Motor And System Performance

    4. Check your brakes by spinning each wheel and listening for the rotor contacting the brake pads. If there is rubbing, align the brake calipers to eliminate the rubbing. 5. Contact Rungu Support if you have other questions. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 105: Mechanical

    If you cannot realign your brake caliper to eliminate the rotor rubbing against the brake pad, 3. The rotor is warped; replace it or have it replaced. 4. Contact Rungu Support if you have other questions. Copyright 2021 Standard Bearer Machines, LLC...

  • Page 106: Getting More Information

    4. Contact Rungu Support if you have other questions. Getting more information Thank you again for purchasing a Rungu Dualie. For further questions, please consult the Support Page on the riderungu.com website or email support@riderungu.com. Copyright 2021 Standard Bearer Machines, LLC...
