Aktive Schutzbrille
ARBEITEN IN FARBE
2.5
Instruction Manual
Warning! The active safety glasses smartglass I3 LED are intended
exclusively to protect against LED light sources in the visual range
VIS.
Please read the instruction manual before first use.
This personal protective equipment (PPE) complies with EU
regulation 2016/425, with effect from April 21, 2018.
Characteristics
Full color recognition and natural view with realcolor optics
Maximum eye protection at minimum weight
Combining comfort with safety
CE certified according EN166, EN170, EN172, EN379
ANSI / ISEA certified according Z87.1
Application
The active safety glasses smartglass I3 LED were developed for
people working in the production and quality control of LED light
sources. The active safety glasses smartglass I3 LED reliably protect
against blinding while working comfortably.
The active safety glasses smartglass I3 LED are fully operational out
of the box. There is no on/off switch. The active safety glasses
smartglass I3 LED will automatically darken.
Technology
The shade level of the light state of the active safety glasses
smartglass I3 is 2.5. Depending on illuminance, it dynamically
controls shade level between 2.5 and 8. When turning away from the
light source the active safety glasses smartglass I3 LED will turn to
its light state. The electronics were designed to only start darkening
once an uncomfortable illuminance threshold is reached.
The light state of the realcolor optics is clear and color neutral. This
allows the user to accurately perceive signal colors.
8
Active Safety Glasses
Technical specifications
Frame material: Polycarbonate, skin-friendly
Functional insert material: Glass/Plastics, skin-friendly
Total weight: 42 g
Dimensions: 170 x 150 x 50 mm
Standards: CE: EN166, EN170, EN172, EN379
Standards: ANSI / ISEA: Z87.1
Warranty: 36 months
Lifetime: Min. 8 years including battery lifetime
Standards

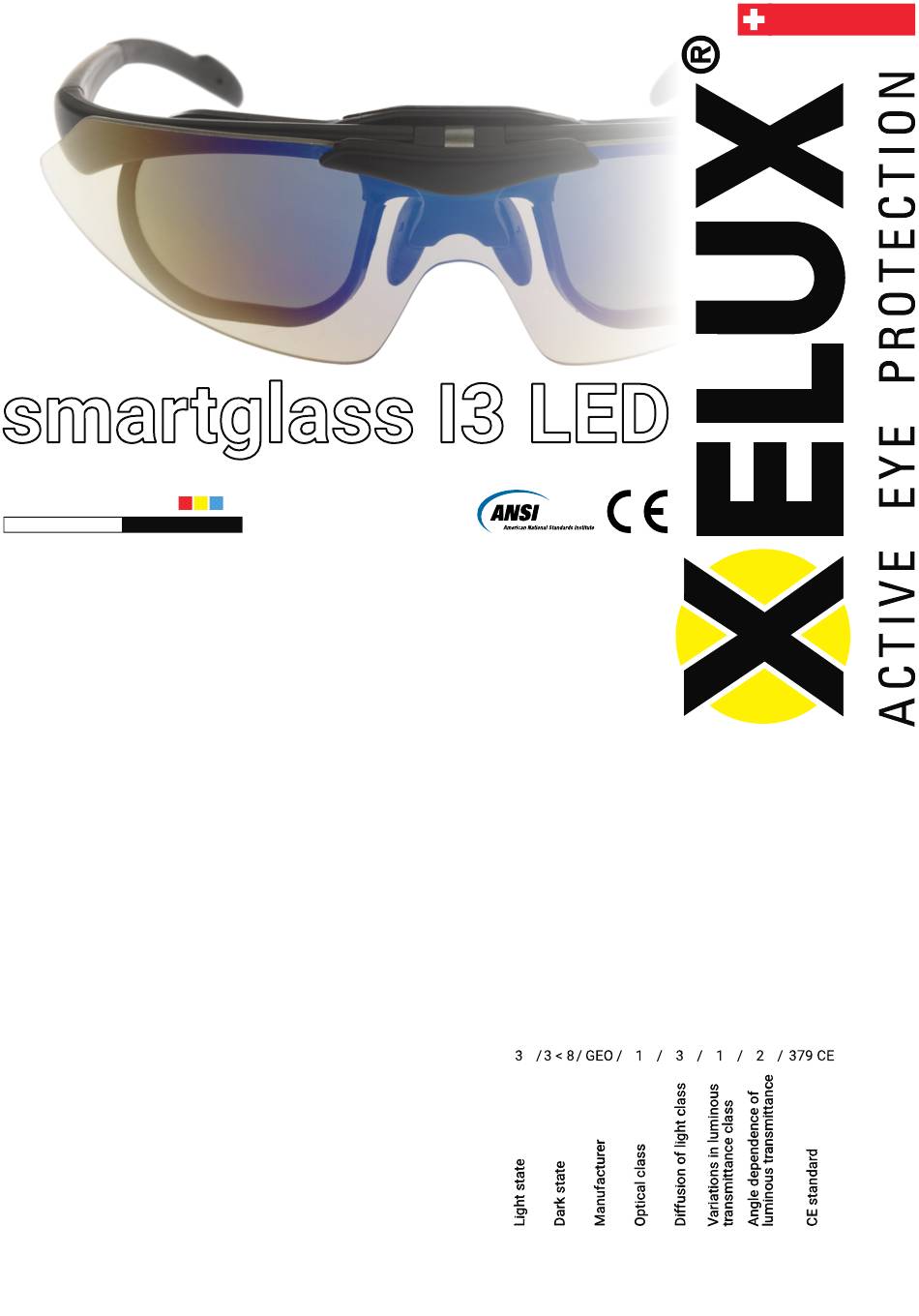

Marking CE
3 / 3 < 8 / GEO / 1 / 3 / 1 / 2 / 379 CE
Only to be used for observing LED's that emit light in the visible VIS
range exclusively.
castelberg design gmbh | Räffelstrasse 29 | 8045 Zürich | Switzerland | 2022
SWISS MADE
