USER MANUAL
ES-DMX-RGB-2811
CONTROLS COLOR OUTPUT

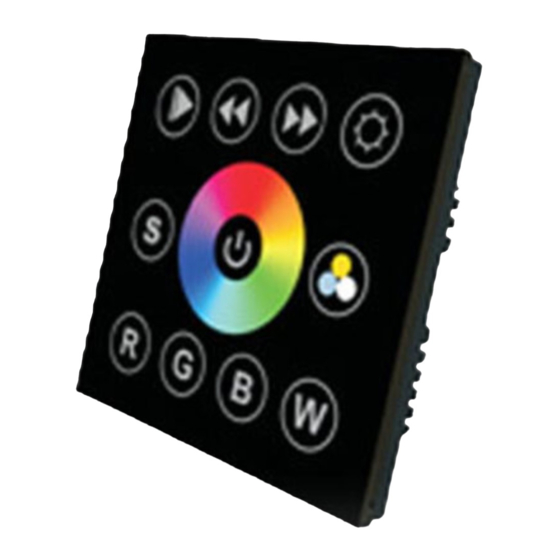

ES-DMX-RGB-2811 DMX full touch panel wall switch with DMX signal output to connect DMX decoders. Made of high
sensitive glass touch panel and comes in black or white. Suitable for any RGB or RGBW LED lighting application
projects for home, theaters, clubs, restaurants, etc.
Can be used with 12/24V LED lights such as LED strip light, LED underwater lights & LED in-ground lights via
RGB-DMX Decoder series

Operating Instructions:

PLAY & PAUSE BUTTON.
There is a built-in three color mode.
Touch this button play.
Hit this button to save the color from
current running mode or scroll to a
color on the color wheel and press S
and hold for 5 seconds to save that
color. Lights will flash when saved
There are 3 pre-saved "R/ G/ B"
colors by default. You can keep these
three and add three or overide the
presaved colors with your own
R
Short press means switch on and off for each channel.
1st Long press means brightness+,
2nd Long press means brightless --.
At the corner of the panel there is a signal light,
Blue means on, Red means off
DMX CONTROLLER
.
(sold seperately)
SAVE
succesfully.
choice.
Short Press On - Short Press Off
Long Press resets to default setting
G B W
SPEED DOWN
WARM, NATURAL, COOL
WHITE COLOR CHANGING
POWER
SPEED UP
BRIGHTNESS
ES-DMX-RGB-2811
can send data from 1 to 40.
Data 1 is R channel.
Data 2 is G channel.
Data 3 is the B channel.
Data 4 is the W channel.
All this DMX decoder needs
4 address as a group:
such as 1-4, 5-8, 9-12, 13-16, 17-20,
21-24, 25-28, 29-32, 33-36, 37-40.
