Summary of Contents for Smith & Noble TH-AFO23BL

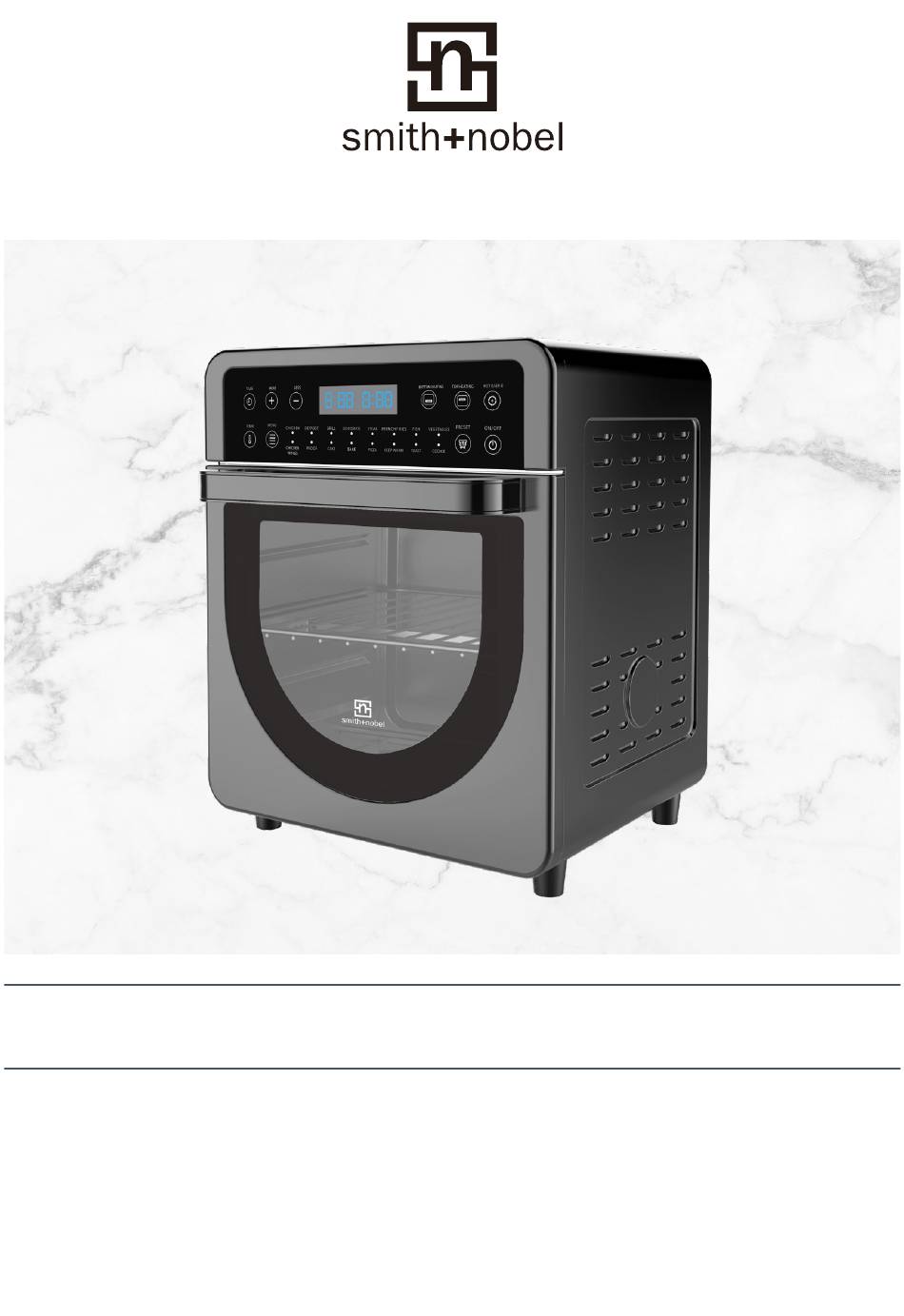

- Page 1 18 LITRE AIR FRYER OVEN Model No.: TH-AFO23BL Instruction Manual Read this instruction manual carefully before use and keep for future reference.
-
Page 4: Short Cord Instructions
SHORT CORD INSTRUCTIONS Do not use with an extension cord. A short power supply cord is provided to reduce the risks resulting from being entangled in or tripping over a long cord. OVERHEATING PROTECTION: Should the inner temperature control system fail, the overheating protection system will be activated, and the unit will not function. -
Page 5: Product Components
PRODUCT COMPONENTS: a. Door hook b. Housing c. Control panel d. Liner lamp e. Rotating grill sleeve f. Heating element g. Glass door h. Door handle i. Oven rack j. Baking tray k. Rotating rotisserie fork l. Fetch tool Place the appliance on a horizontal surface. -
Page 6: Baking Tray
BAKING TRAY: Insert the baking tray into the unit according to the diagram below DRIP TRAY: Opening the door, Put the drip tray into the unit according to the diagram below: The drip tray slides in underneath the bottom heating element. OVEN RACK: Insert the oven rack into the unit according to the diagram below:... - Page 7 ROTISSERIE STICK, FORK AND SCREWS: Use for roasts or a whole chicken. Force the shaft length ways through the meat and center. Slide the forks onto the shaft from either end into the meat. Then lock into place with the screws. You can adjust the screws closer to the middle if needed, but never outwards towards the ends.
-
Page 8: Control Panel
Switch USING THE AIR FRYER: CONTROL PANEL: COOKING USING A PRESET OPTION: MENU: Press the MENU button repeatedly to choose between 16 different cooking options already programmed into the air fryer. When your chosen cooking option is illuminated, press the ON/OFF button to begin the cooking process. - Page 9 PRESET COOKING OPTIONS: The preset cooking options are: 220°C 45 mins CHICKEN 80°C 10 mins DEFROST 230°C 30 mins GRILL 70°C 8 hours DEHYDRATE 200°C 12 mins STEAK 220°C 20 mins FRENCH FRIES 180°C 15 mins FISH 180°C 12 mins VEGETABIES 220°C 13 mins...
- Page 10 TIME: After pressing the menu button and before pressing the ON/OFF button to begin a cooking program, press the TIME button to adjust the timer. Press the + and – buttons to adjust the timer. Adjustable time The maximum adjustable time for defrost and cake is 4 hours The maximum adjustable time for Dehydrate and keep warm is 9 hours and 59 minutes The maximum adjustable time for the other menus is 2 hours Adjustable temperature...
-
Page 11: Cleaning And Maintenance
The countdown timer can be set between 1 minute and 9 hours and 59 minutes. When the countdown time you have chosen is shown on the screen, press the ON/OFF button. The air fryer will then countdown and at the end of the set timer, the air fryer will turn on and cooking will begin. - Page 12 One Year Warranty Statement DS Opco Pty Ltd Level 4, 111 Cecil Street, South Melbourne, Victoria 3205, Australia Ph: 1300 304 505 Email: customerservice@harrisscarfe.com.au...
