Summary of Contents for eSSL BG100-BDC

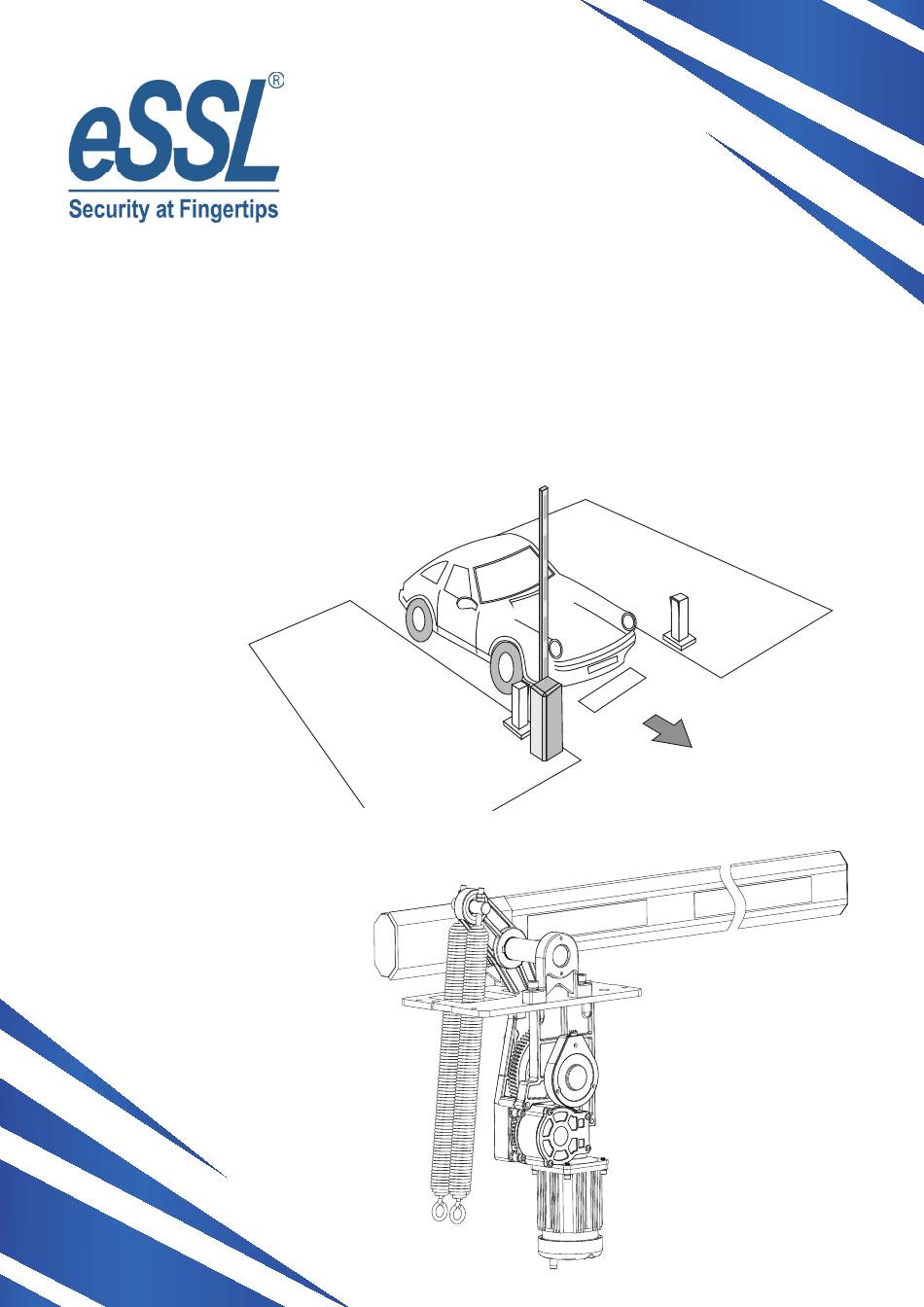

- Page 1 INSTALLATION MANUAL & USER GUIDE Please read carefully before installing and use BG100-BDC...
- Page 2 WARNING AUTOMATIC BARRIERS ARE NOT FOR PEDESTRIAN! To reduce the risk of INJURY or DEATH, read and follow all instructions. NEVER let children operate or play with barrier control. Controller MUST be installed at least 1.5m above the ground. PEDESTRIANS SHOULD NOT CROSS THE PATH OF THE MOVING BARRIER. Automatic boom barrier is designed for vehicles ONLY.
- Page 3 1. Direction Definition and Main Components of the Machine A.Close to Right B.Close to Left Fig.1 C.Main Components of the Motor Fig.2 Boom Boom Holder Bearing Holder Base Plate Balance Armr Optical Encoder Limits Spring Motor Manual Release Handle...
-
Page 4: Specification
2. Features A. Remote control is allowed. B. During power outage, product can be manual operated. C. Control board contains various ports for parking lot management system, infrared sensor, radar, etc. D. Product contains multiple limit protection functions to keep a long life time. 3. -
Page 5: Cabinet Installation
4. Installation 4.1 Cabinet Installation Open the Cabinet door and take out the attachment pack. Place the Cabinet at desired position. Place Fixed Bars on the bottom of the Cabinet inside. Mark out the boreholes for Expansion Bolts (Fig. 3: L and W) according to the Fixed Bars. Move away the cabinet. -
Page 6: Boom Installation
4.2 Boom Installation 4.2.1 Loosen the Screws and move the spring(s) away from the Spring Support. (Fig. 4) Fig.4 Loosen the screws Move the springs away from springs support 4.2.2 Using the Manual Release Handle to steer the Boom holder to horizontal position. Fig.5 Boom Holder Boom Holder... - Page 7 4.2.3 Install the boom and Outer boom holder according to Fig. 6. Fig.6 Outer boom holder 4.2.4 Fix the Boom Support on the ground. Adjust the height as the Rubber pad touches the boom when the boom is at horizontal position. (Fig.
- Page 8 5. Setting Springs’ Balance with Boom Weight Attention: The springs are set to be balanced in factory. DO NOT change the boom length or weight if it is not necessary. If the boom length or weight must be changed (e.g.: adding a Stop Sign on the boom), the balance must be adjusted by a quali ed service person.
- Page 9 5.2.2 Based on the weight added or subtracted on the boom, adjust the Spring Nut. Tighten the nut clockwise if the weight increased. Loosen the nut counter-clockwise if the weight decreased. When adjusting, all nuts should be turned at the same cycles, in order to avoid the unevenly distrib- uted loads.
- Page 10 5.2.3 Loosen the Lower Linkage nut and take o the Upper Linkage nut. Turn the Manual Release towards Open Status to pull out the Adjusting Insert. Turn the Manual Release towards Close Status, and stop when the boom is between 30° to 60°. If the boom moves towards Open Status, Spring Nut should be loosened or reduce the number of springs.
- Page 11 6. Operating Instructions A. Use remote controller to operate Automatic Boom Barrier. B. During power outage, turn the Manual Release towards Open Status to open the Automatic Boom Barrier. (Fig. 11) Fig.11 Close Open Fig.15 Close Status Open Status Linkage Nuts Adjustable Linkage Main Linkage...
-
Page 12: Control Board Diagram
7. Control Board Diagram Fig.12 Live Null Motor White Wire Motor Red Wire Motor Blue Wire Green Light Red Light External Power V- External Power V+ LED- LED+ Blue White Black Brown Optical Counter Red Wire Open Limit Yellow Wire Close Limit Green Wire Optical Counter Blue Wire... - Page 13 8. Limit Adjusting Attention: Limits are set well in factory. Any change made on boom length, weight, spring force, etc. may cause deviation on the limits. To adjust the limits, please follow steps below. 8.1 Optical Counter Disk Fig.13 Counter Picks Default Pick Position Max.
- Page 14 Fig.14 8.3 Limits resetting Before adjusting, open and close the boom once to see whether the boom is vertical and horizontal to the ground. If so, no adjustment is needed. Otherwise, follow the steps below to set the value of P1 and P2.
- Page 15 Warning! Resetting should be operated by a qualified person. Power on Default displevy Press and hold “Set” Press “Open” or “Close” to Display “P1”or“P2” switch between “P1”&“P2” Press “Set” Display corresponding value Press “Open” or “Close” to adjust value Press “Stop”...
-
Page 16: Function Parameters
9. Function Parameters 9.1 Function Definition Factory Setting (Caution!) Open Limit Micro-adjustment(for digital encoder) Close Limit Micro-adjustment(for digital encoder) Auto-Close Timer (s). Max.: 99s. Default: 00 (Means auto-close function disabled) 00: Normal Mode (Default). 01: Counting Mode. 00: Normal Mode (Default). 01: Stay OPEN. - Page 17 9.3 Parametors of Function and Time Resetting Power on Shortly press “Set” Display “77” Press “Open” or “Close” to change value Display “77” or “81” Press “Set” “79” : Function “81” : Timer Parameter Parameter Press “Open” or “Close” to change corresponding value Press “Stop”...
-
Page 18: Error Codes
10. Transmitter (Remote control) setting 10.1 Transmitter's code setting Press "LEARN butTON", the "LEARN LED" light on, then, press and hold the button which you choose on the transmitter till the "LEARN LED" ashes and goes out, now, the transmitter is coded. Other transmitters can be coded as this way. -
Page 19: Troubleshooting
12. Trouble Shooting Trouble Possible Reason Solution Check fuse inside control Fuse blowout. box and power supply. No battery or dead battery Change the batteries in in remote transmitter. controller(transmitter). Power On, operate remote controller(transmitter), but no Press “Open” or “Close” on the Frequency interference. - Page 20 #24, Shambavi Building, 23rd Main, Marenahalli, JP Nagar 2nd Phase, Bengaluru - 560078 Phone : 91-8026090500 | Email : sales@esslsecurity.com www.esslsecurity.com...
