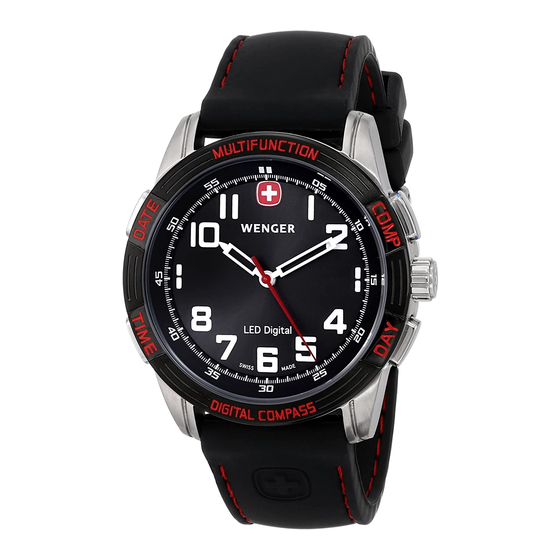

Wenger Nomad Instruction Manual

Led compass
Hide thumbs Also See for Nomad:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
Instruction Manual
Nomad LED ompass

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nomad and is the answer not in the manual?

Questions and answers

Related Manuals for Wenger Nomad

Summary of Contents for Wenger Nomad

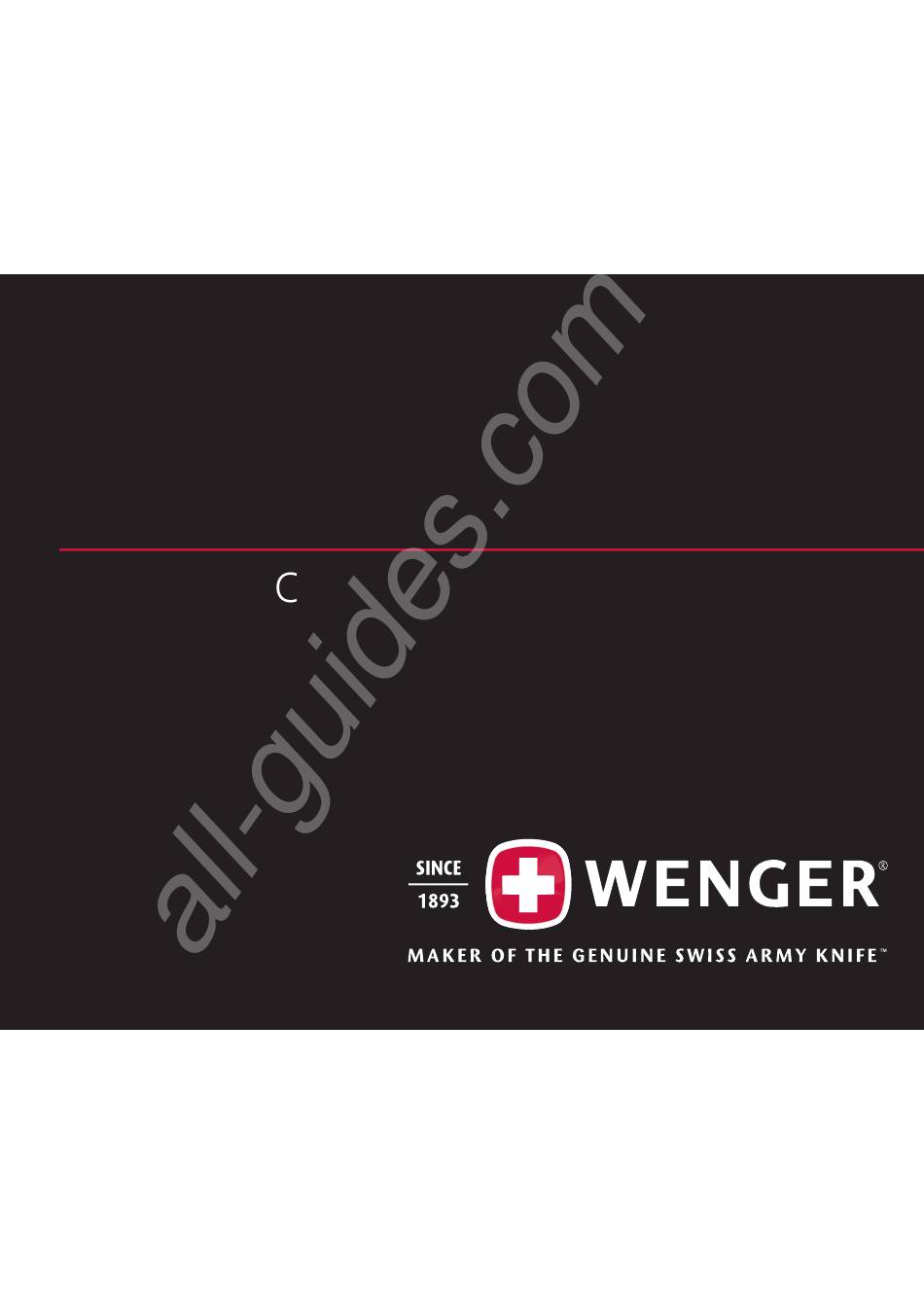

  • Page 1 All manuals and user guides at all-guides.com Instruction Manual Nomad LED ompass...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Crafted for Life..........2 Watch Components .

  • Page 3: Crafted For Life

    All manuals and user guides at all-guides.com Crafted For Life Delémont, Switzerland 1893 Over a century ago, Wenger built a factory in this tiny Swiss village and transformed it into production headquarters for the Genuine Swiss Army ™ Knife still used by the Swiss Army today. As it was 100 years ago, each tool, implement and knife manufactured by Wenger is crafted by hand in solid stainless steel and each individually inspected for quality and craftsmanship.

  • Page 4: Watch Components

    All manuals and user guides at all-guides.com Wenger Watch Components Movements – Swiss mechanism. Case Body – All stainless steel for quality and durability. Water-Resistant – To 100m (330'). Straps/Bracelets – Stainless steel bracelets featuring dive buckles and safety clasps. Straps are offered in genuine calfskin leather, specially treated rubber- ized leather, water-resistant rubber or nylon, or other high-quality materials.

  • Page 5: General Features And Components

    All manuals and user guides at all-guides.com General Features and Components Directional arrow Hour hand (when luminated) Compass Date button button Inner bezel Crown Time button Day button Second hand Minute hand Strap or bracelet...
  • Page 6 All manuals and user guides at all-guides.com Compass Button • To select Compass Mode. • To calibrate compass. Day Button • To select “Day of Week” display. Time Button • To display digital time in hour-minute or seconds. • To enter the Time Setting Mode. Date Button •...

  • Page 7: Setting The Analog Watch Instructions

    All manuals and user guides at all-guides.com Setting the Analog Watch 1. To set the analog time, gently pull out the crown to Position 2. 2. Second hand will stop and digital time will flash. 3. Rotate crown so the watch hands move clockwise to the correct time. Second Hand Alignment To synchronize the digital with analog seconds, push in the crown to return it to Position 1 at correct moment.

  • Page 8: Digital Time And Calendar Instructions

    All manuals and user guides at all-guides.com Setting the Digital Time and Calendar 1. Hold down the Time Button until the digital seconds flash. 2. Press the Compass Button to scroll through minutes, hours, year, month and date as well as date format (both month and date flashing), time format (12 hour to 24 hour) and seconds.

  • Page 9: Precautions And Tips For Using Compass

    All manuals and user guides at all-guides.com Day of the Week Display 1. Press the Day Button to switch on the Day of the Week display. 2. The display will show for 2 seconds, and will turn off automatically. Precautions and Tips for Using Compass 1.

  • Page 10: Digital Compass Instructions

    Compass Display 1. Press the Compass Button to switch on the compass display. 2. The compass bearing in degrees and an arrow indicator under the Wenger cross will display. 3. The display will show for 30 seconds, and turn off automatically.
  • Page 11 All manuals and user guides at all-guides.com Calibrating the Compass 1. See “Magnetic Declination by Major City” section to determine declination angle and refer to p.12-14. 2. Hold down the Compass Button for 3 seconds to select setting display. 3. When the “CAL” is displayed, keep the watch parallel to the horizon, and steadily rotate the watch clockwise two full rotations (the indicators will move in a clockwise direction automatically).
  • Page 12 Taking a Compass Measurement 1. The watch must be parallel with the horizon for accurate reading. 2. Point the Wenger cross toward the object or direction you intend to go and press the Compass Button. 3. The compass bearing of the target will show in degrees: 0°...
  • Page 13 All manuals and user guides at all-guides.com Compass Bearing vs. Compass Direction Compass Bearing – the horizontal direction of an object as measured by the observer in degrees. Compass Direction – the path given by a compass using the four cardinal points including North, South, East &...
  • Page 14 All manuals and user guides at all-guides.com • For serious compass users or people who intend to perform accurate navigation, the compass must be adjusted to include the magnetic declination. This watch includes a compensation setting for Magnetic Declination. See the “Calibrating the Compass” section on p.10. Magnetic Declination Information •...
  • Page 15 All manuals and user guides at all-guides.com Magnetic Declination Compensation • Compensate for an object’s bearing by subtracting westerly magnetic declination or adding easterly magnetic declination with the magnetic bearing. Example 1 - Westerly magnetic declination = 23°, Magnetic bearing = 323°. - True bearing: 323°- 23°...
  • Page 16 All manuals and user guides at all-guides.com Magnetic Declination at Major Cities United Kingdom Washington DC Declination Country City Declination Australia Canberra 12-E United Kingdom Austria Washington DC Vienna Declination Bangladesh Dhaka Belgium Brussels Brazil Brasilia 19-W Canada Ottawa 14-W Chile Santiago China...
  • Page 17 All manuals and user guides at all-guides.com Magnetic Declination at Major Cities (continued) United Kingdom Washington DC Declination Country City Declination Denmark Copenhagen United Kingdom Egypt Washington DC Cairo Declination Finland Helsinki France Paris Germany Berlin Greece Athens Hungary Budapest India New Delhi Indonesia...
  • Page 18 All manuals and user guides at all-guides.com Magnetic Declination at Major Cities (continued) United Kingdom Washington DC Declination Country City Declination Jordon Amman United Kingdom Kenya Washington DC Nairobi Declination Korea Seoul Malaysia Kuala Lumpur Mexico Mexico City Nepal Kathmandu Netherlands Amsterdam New Zealand...
  • Page 19 All manuals and user guides at all-guides.com Magnetic Declination at Major Cities (continued) United Kingdom Washington DC Declination Country City Declination Russia Moscow United Kingdom Singapore Washington DC Singapore Declination South Africa Cape Town 23-W Spain Madrid Sweden Stockholm Switzerland Bern Taiwan Tai-pei...
  • Page 20 All manuals and user guides at all-guides.com Magnetic Declination at Major Cities (continued) United Kingdom Washington DC Declination Country City Declination United States Phoenix, AZ 12-E United Kingdom United States Washington DC Little Rock, AR Declination United States Sacramento, CA 16-E United States Denver, CO...

  • Page 21: Caring For Your Watch

    Caring For Your Watch Even though your watch is water-resistant, it is not recommended that you wear it in a hot shower, sauna or hot tub. We suggest sending your Wenger watch to our Customer Service Center for battery replacement (please see procedure under “Warranty Service”).

  • Page 22: Warranty Information

    This 3-Year Limited Warranty also includes all components and craftsmanship of the Swiss movement and watch case. We will repair, or at our option, replace any defective Wenger watch with the same or comparable model. We will refund the purchase if repair or replacement is not commercially possible.

  • Page 23: Warranty Service Instructions

    In the United States, please send your watch to: WWRC, 15 Corporate Drive, Orangeburg, NY 10962. Please include a check or money order payable to Wenger NA in the amount of $10(US) to cover the cost of return shipping and handling (California residents exempt). If your warranty has been rendered void as a result of non-compliance with above warranty restrictions, we will send you an estimate before any repairs are made.

  • Page 24: Registration Form

    All manuals and user guides at all-guides.com Wenger Watch Registration For your convenience, you can register online at www.WengerNA.com/warranty or complete the form below and mail it to the address on the back. Name/Nombre: ______________________________________________________ Address/Dirección: ___________________________________________________ City/Cuidad: ________________________________________________________ State/Estado: ______________________ Zip Code/Código Postal: ____________ Email: ______________________________________________________________ Date Acquired/Fecha de Adquisición: ____________________________________...
  • Page 25 All manuals and user guides at all-guides.com Notes: __________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________...
  • Page 26 All manuals and user guides at all-guides.com Wenger N.A. 15 Corporate Drive · Orangeburg, NY · 10962 · USA Tel: 800-431-2996, 845-365-3500 Fax: 845-425-4700 (General correspondence) 845-365-3743 (Orders only) Web: www.WengerNA.com...
