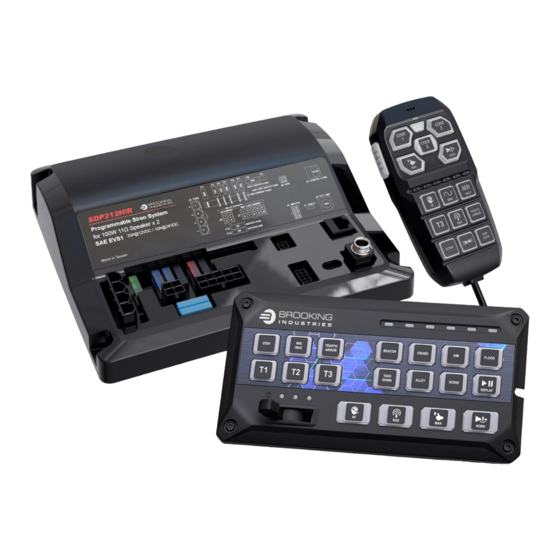

Summary of Contents for BROOKING INDUSTRIES SDP212-H/R

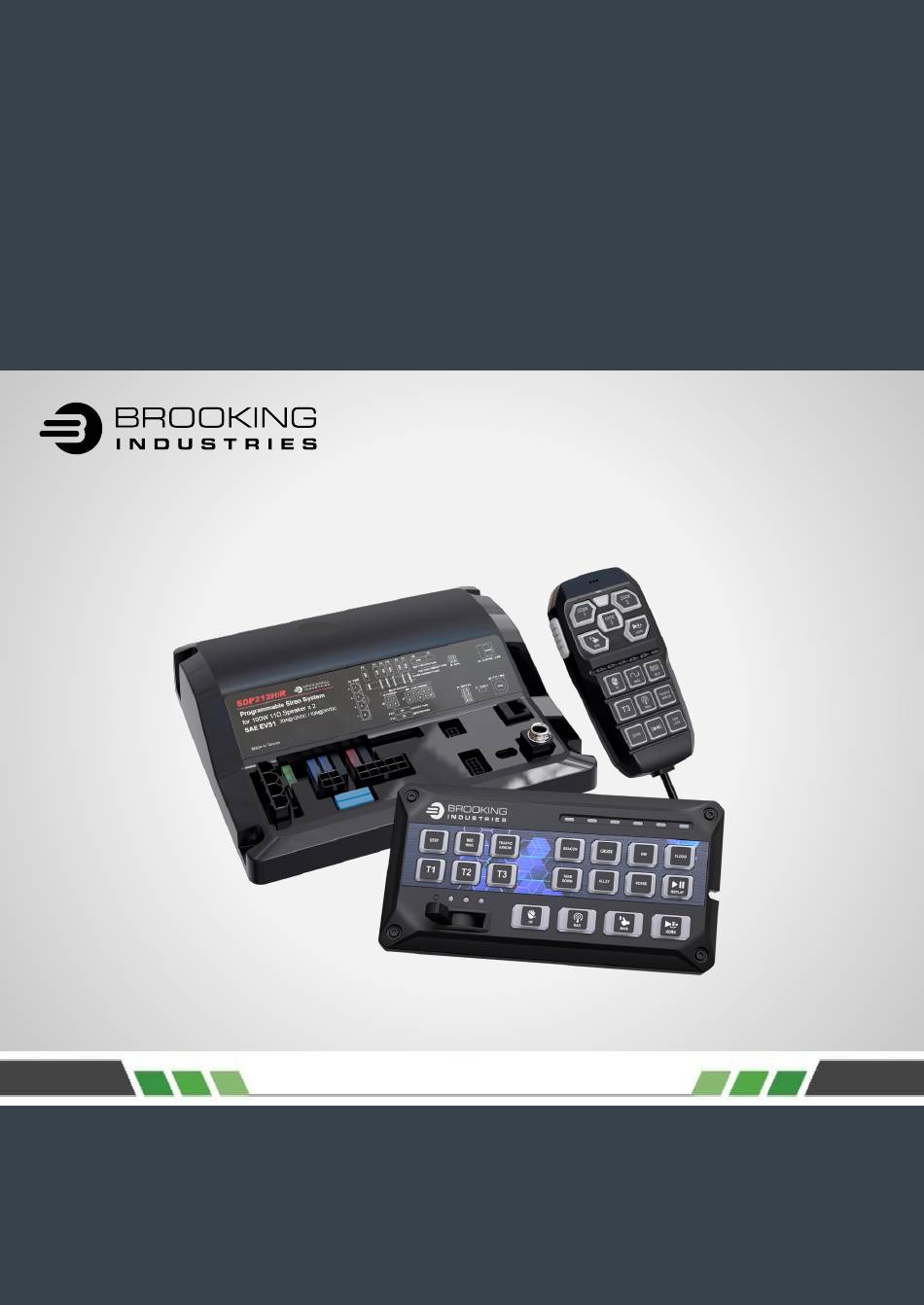

- Page 1 SDP212-H / R Full Function Light & Siren Controllers Software Programming Manual...
- Page 3 ◤ Download / Install SDP212 Series Siren User Interface for PC: Insert link to UI on Brooking's server here anti-virus Anti-virus anti-virus anti-virus task bar anti-virus...
- Page 4 ① ② ① ②...
- Page 5 ② ① ③ ② ① ③ ① ② ③ Select Your Controller Firmware Version Check the firmware sticker on the back or your controller and select the corresponding firmware version...
-
Page 6: Chapter 2: Main Interface
Chapter 2: Main Interface ◤ 2-1. Interface Overview ② ① ⑤ ③ ④ ② ① ⑤ ③ ④ ① Menu Bar ■ Contains basic file options such as create new, save, etc. (see Chapter 2-2). ② General Settings ■ Click on the Gear Icon to change the properties of the general settings (see Chapter 2-3). - Page 7 2-2. Menu Bar ① Create New Configuration ■ Click to start a new configuration / setting. (see Chapter 1-4) ② Open Existing Configuration ■ Click to select an existing configuration and setting file (.sdp2) from the host PC. ③ Import from Siren Unit ■...
-
Page 8: General Setting
2-3. General Setting (Click the icon (top right) ① Button Backlight Default ■ Drag the slider to adjust the default intensity of the button backlighting. This value will be applied only when no other backlight intensity is applied by any other button or wire input. ■... - Page 9 Chapter 3: Button/Input and Profile ◤ 3-1. Panel Button and Other Inputs ① Controller Panel ■ Push-Buttons Each button can hold an OFF profile and one to four ON profile(s). By default, all Push Buttons start-up in OFF profile upon restart. ■...
-
Page 10: Profile Setting
Detects current / main input power voltage and changes its profile based on that voltage value. This input is often used for battery low voltage protection. ■ Logic Input Each logic Input can hold an OFF profile and one to four ON profile(s). By default, all Push Buttons start-up in OFF profile upon restart. - Page 11 Chapter 4: Settings and Variables ◤ 4-1. Overview ① Properties ■ Change the settings of each button / function wire input (see Chapter 4-2). ② Inputs ■ Change the Input actions for each Profile state of each button / wire input (see Chapter 4-3).
- Page 12 ③ Trigger VOLT (available on selective inputs only) ■ [VOLT+]: Trigger this input wire via +VDC switching. ■ [VOLT-]: Trigger this input wire via –GROUND switching. ④ Button Mode Each button/input is assigned a "button mode". The button’s operation and setting variables are based on the button mode.
- Page 13 ■ [Record-n-Play]: Use for recording and playing a short message through the siren speaker(s). (up to 20 seconds) Capable of holding an OFF, and one ON profile. Can only be set to Long Record & Press Play. Only one button or one wire may be set to this Mode. Can set the number of times the message is played (looped).
- Page 14 ⑤ Profile Cycle NOTE: Only available when “Double Press Off” or “Hold Off” switch type is selected. ■ [One Way] Profile will progress in OFF > ON > ON2 > ON3 > ON4 (whenever applicable). Unless amended by other means (e.g. other button or input action), profile will not cycle back to OFF profile.
- Page 15 ⑨ Switch Type ■ Each button can be set as one of the following switch types: ■ [Disabled]: Disable this button and turn off all functions activated by this button. ■ [Press On, Release Off] ■ [Press On, Press Off] ■...
-
Page 16: Input Actions
4-3. Input Actions Each profile offers a set of actions to amend the status of other inputs upon the activation of the profile. ① [Controller Panel] and [Other Input] ■ Select to show the list of Buttons or Other Inputs. ②... -
Page 17: Output Actions
4-4. Output Actions Each profile can select a set of actions for the Wire Output and Controller LEDs throughout the duration of the activation of the profile. ② ③ ① ① Wire Output Each profile contains a set of selectable actions to turn ON or OFF for each OUTPUT throughout the duration of activation. - Page 18 ③ Backlight Each button / input, regardless of the number of profiles, can store an override Backlight brightness for the controller. The brightness will be applied throughout the duration of the activation of its ON profile. ■ Check Box: Check to allow overriding of brightness on this button / input. ■...
- Page 19 4-5. Tone Actions Based on the button mode, the available Tone Actions may vary. ① ② ④ ③ ① Siren Speaker Select the desired action for the two speaker output. ■ [None]: Does not perform any action; disregard any selected tone in Tone Setting. ■...
- Page 20 ④ Tone Setting Based on the button mode, the available Tone Actions may be different. ■ [General]: a. Primary Tone Select a Tone to be broadcasted when activated. b. Override Tone Select a Tone to be broadcasted when activated with “Tone Change” function (i.e. MAN or Horn-Ring Transfer button/input).
- Page 21 c. Siren Tone Change Select a Tone Change method for activating Override Tone. None Does not activate Override Tone Press On, Press Off Press to activate Override Tone, press again to revert back to Primary Tone. Press On, Release Off Press to activate Override Tone, release to revert back to Primary Tone.
- Page 22 ■ [Hand-Free]: a. End Method Select an action method to end Hand-Free Siren Tone. Cycle End Turns OFF when all tones have been cycled through. Double Press End Double press to OFF. b. Volume Set a broadcast volume for this button/input. c.
- Page 23 ■ [Volume Adj.]: a. Adjusting Volume Select a style when changing volume. Volume Down Decrease a volume level / stepl when pressed. Volume Up Increase a volume level / step when pressed. b. Adjusting Level / Step Select a volume level / step when pressed. ...
- Page 24 Chapter 5: Priorities ◤ 5-1. Priorities / Precedence Set the order of precedence for all the buttons and inputs. When more than one button / input are activated at the same time, all active inputs / profile actions will perform their functions (or not) based on the order of precedence. Lower precedence actions will be overridden.
-
Page 25: Appendix A. Copyright Notices
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Brooking Industries, Inc. Brooking Industries, Inc. reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements.
