Huzzard HSRF-CONN-EXT-KIT Installation Manual

Hide thumbs

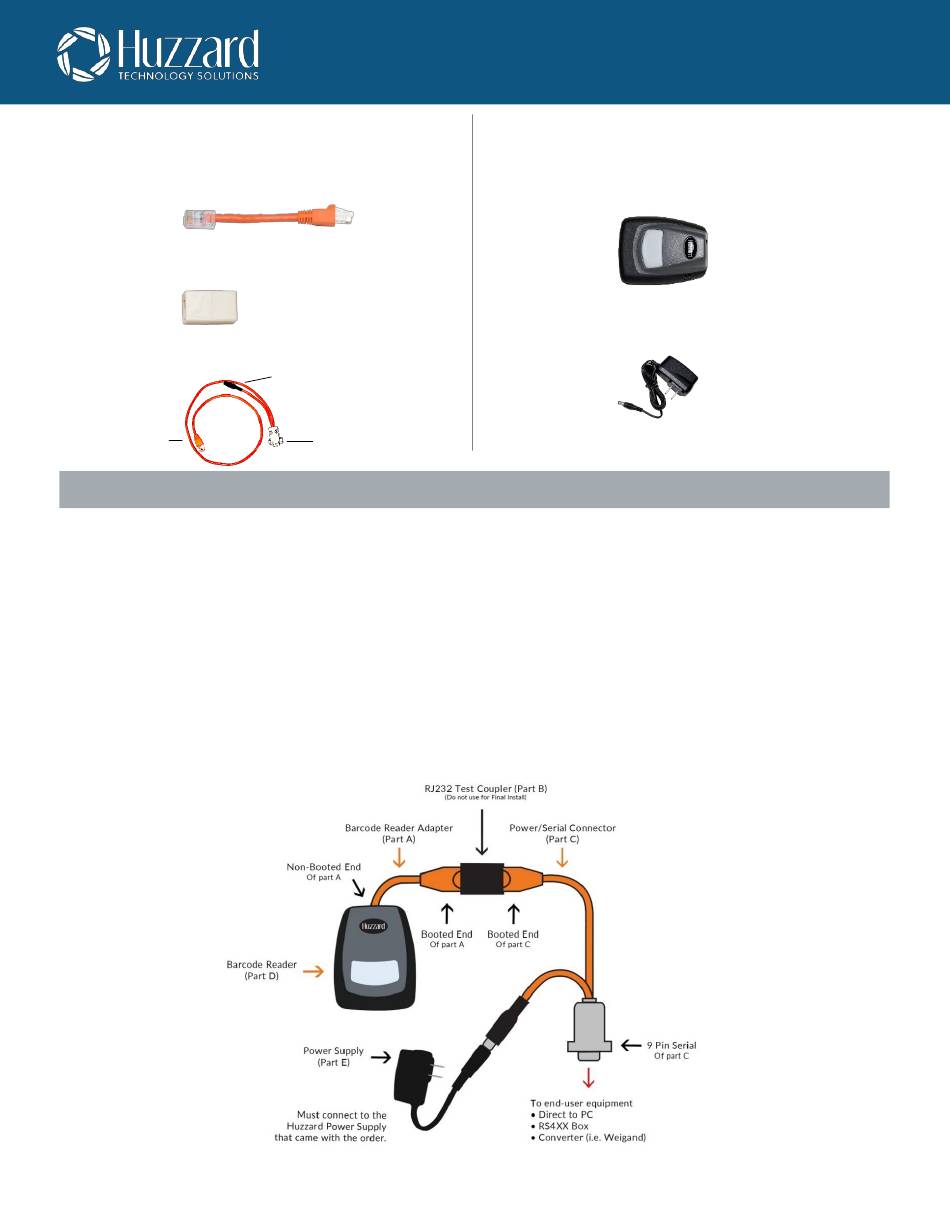

What is Included with

HSRF-CONN-EXT-KIT?

A. Barcode Reader Adapter

Non-booted

B. Coupler x2

C. Power/Serial Connection

8 pin Plug

1. Insert non-booted end of the Barcode Reader Adapter

Booted End (Part A Above) into the Barcode Reader

(part D).

2. Insert the Barcode Reader Adapter (part A) into one of the

couplers (part B).

3. Insert the Power/Serial Connector (part C) 8 pin plug into

one of the couplers for testing (part B).

4. Insert the Power/Serial Connector 9 pin Serial into your

Windows computer.

5. Plug the Power Supply (part E) into an AC socket and the

power barrel end into the Power/Serial Connector (part C).

Huzzard.com

Booted

Power Input

9 pin Serial

I. Pre-Installation Test

(920) 257-4357

HSRF-CONN-EXT-KIT

What is Needed from HSRF-ENC-KIT

D. Barcode Reader

E. Power Supply

6. On the PC, open *Realterm and preform barcode scans

by placing curser in input window and scan any barcode

to verify proper operation and connection between

Access Control Reader and Windows PC.

7. Once the Huzzard equipment is verified as functional,

install any other user supplied equipment and run scan

tests.

8. After all equipment has been verified functional, remove

the Coupler (part B).

9. Move on to Field Installation.

Support@Huzzard.com

(920)257-4357

.com

Installation Guide

*Realterm can be found at

realterm.sourceforge.io

January 6, 2021

pg. 1

Table of Contents

Need help?

Do you have a question about the HSRF-CONN-EXT-KIT and is the answer not in the manual?

Questions and answers

Summary of Contents for Huzzard HSRF-CONN-EXT-KIT

Page 1 2. Insert the Barcode Reader Adapter (part A) into one of the Access Control Reader and Windows PC. couplers (part B). 7. Once the Huzzard equipment is verified as functional, 3. Insert the Power/Serial Connector (part C) 8 pin plug into install any other user supplied equipment and run scan one of the couplers for testing (part B).
Page 2 Ethernet device. Also, the power supply that ships with the HSRF-EXT-KIT is the only power supply that is approved for use. Third party adapters or power supplies will damage the Access Control scanner. For further support, Email Support@huzzard.com, Call (920)257-4357 ext. 131, or visit our webpage https://huzzard.com/door-access-control/ Huzzard.com...
