Summary of Contents for JMV CDC160

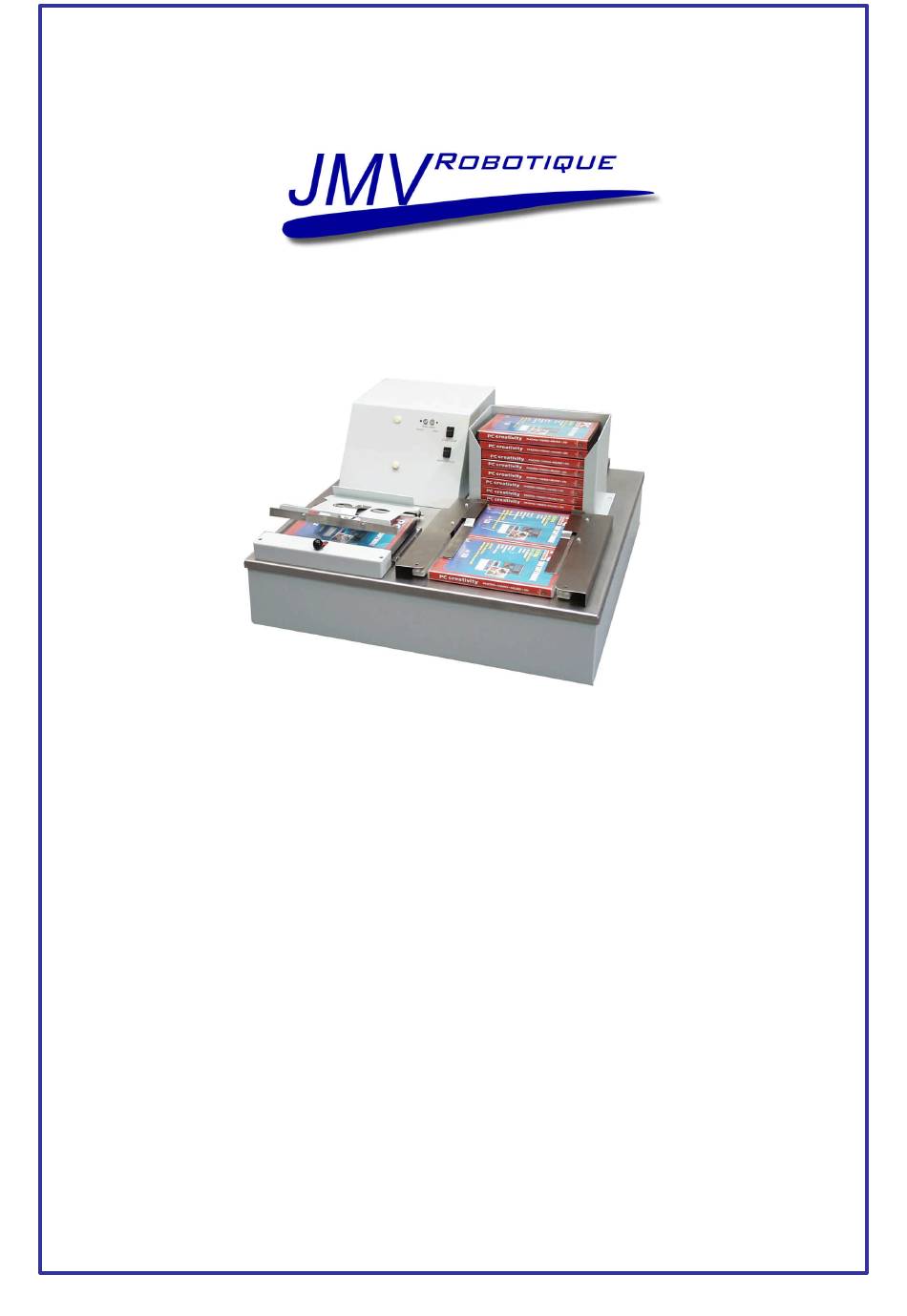

- Page 1 CDC160 DVD Case Wrapper COMPLETE SOLUTIONS FOR ON-DEMAND CD & DVD PRODUCTION CDC160 DVD Case Wrapper OPERATING & MAINTENANCE MANUAL TP 000 103 - 1 -...
- Page 2 CDC160 DVD Case Wrapper Thank you for purchasing a JMV Robotique CDC160 DVD Case Wrapper OPERATING & MAINTENANCE MANUAL Document Reference No. TP 000 103 (Rev 1.04) Production Standard T.ZZ 004 018 (220v) T.ZZ 004 019 (110v) JMV Robotique ZI du Clos Aux Pois...
- Page 3 Waste electrical products should not be thrown away with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. JMV Robotique reserves the right to amend or modify the specifications and design criteria applying to these products. TP 000 103...
- Page 4 OPTIONAL EXTENDED WARRANTY PROGRAMMES Optional extended warranty programs are available. JMV Robotique extended warranty programs can only be purchased at the same time or shortly after the product to be covered has been purchased. Contact JMV Robotique for details. TP 000 103...
-
Page 5: Table Of Contents
CDC160 DVD Case Wrapper TABLE OF CONTENTS Section 1 SPECIFICATION Section 2 INTRODUCTION & INSTALLATION Section 3 OPERATION 8-12 3.1 Powering Up 3.2Adjustments 3.2.1 Adjusting the side heater controller 3.2.2 Adjusting the front heater controller 3.2.3 Adjusting the side seal position 9-10 3.3Operating the CDC160... -
Page 6: Section 1 Specification
Carefully remove your CDC160 from its shipping carton and verify that all parts are present. If there are missing or damaged parts contact JMV Robotique or an authorized distributor immediately. - Page 7 JMV Robotique. You should save your shipping materials so that if the need arises, you can return your CDC160 for service. This packaging was designed specifically for shipping your CDC160. Other packaging may not be suitable.
-
Page 8: Section 3 Operation
CDC160 DVD Case Wrapper SECTION 3: OPERATION 3.1 Powering Up After connecting to the power supply, power up the CDC160 using the switch situated on the side of the machine. The commands on the front panel of the machine are as following: 1 - "Start/Stop"... - Page 9 CDC160 DVD Case Wrapper The VS4000 DVD over-wrapper has been set to suit the enclosed sample wrapped case. DVD cases can vary in size by 0.5mm in length which can affect the side fold and seal. If you are experiencing problems, adjustments can be made to correct this as follows: 1.
-
Page 10: Operating The Cdc160
3.3 Operating the CDC160 Wrapping the DVD Case on the CDC160 is a two-stage operation. The first stage involves sealing two ends of a pre-cut sheet of polypropylene, wrapped around the DVD case, together. The final stage folds and seals the edges of the sheet around the case automatically. - Page 11 CDC160 DVD Case Wrapper Figure 4 Fold the remaining half of the polypropylene sheet down over the case and lightly tension the sheet in the forward direction with finger pressure and hold in the sheet in position with thumb pressure then trap the sheet in position with the hinged lid of the tray (figure 5).
- Page 12 CDC160 DVD Case Wrapper Figure 7 Hinge up the tray lid and remove the sleeved DVD case (figure 8). Taking care not to allow the case to slide out of the sleeve, rotate the case 180 degrees left to right and place it in the hopper.
- Page 13 CDC160 DVD Case Wrapper Figure 10 Figure 11 NOTE: If at any time the unit fails to respond to the start/stop button the reset/default button must be pushed to reset the hopper and side heater mechanisms. TP 000 103 - 13 -...
-
Page 14: Section 4 Errors
CDC160 DVD Case Wrapper SECTION 4: ERRORS The "Reset Default" light is flashing; the "Start/Stop" push button cannot be used. Check that the pusher on the automatic side of the machine (at the back/bottom of the hopper) has jammed. If the surface in front of the pusher is clear, press the "Reset Default" push button. The light goes OFF. - Page 15 CDC160 DVD Case Wrapper SECTION 5: SPARE PARTS See corresponding diagram in Appendix A. Part No. Description Quantity DC Motor 24 RPM Bearing 604ZZ Electro Magnet 11.1 Front Heater 11.2 Right Side Heater 11.3 Left Side Heater 11.4 Front Resistor Alone L=294mm 11.5...
- Page 16 CDC160 DVD Case Wrapper APPENDIX A TP 000 103 - 16 -...
- Page 17 STANDARD TERMS AND CONDITIONS OF SALE In these conditions JMV Robotique has its registered office at ZI du Clos Aux Pois, 6/8 Rue de la Closerie, LISSES, 91048 EVRY Cedex, France. And the “Purchaser” is an individual or company with whom JMV Robotique contracts.
- Page 18 Purchaser acknowledges that he is in possession of the goods solely as bailee for JMV Robotique as shall as bailee insure and keep the same insured in the name of JMV Robotique in their full reinstatement value in some reputable insurance office and indemnify JMV Robotique for any uninsured loss thereof.
- Page 19 11. FORCE MAJEURE JMV Robotique shall not be liable for failure to perform or delay in performance of any contract or for the loss or damage to goods directly or indirectly caused by force majeure to include acts of God,...
- Page 20 JMV Robotique free access to his premises to enable JMV Robotique to do so. No waiver or delay in exercise by JMV Robotique of its right under this clause shall be deemed to imply acceptance of the default or any subsequent default. If the Purchaser shall become bankrupt, go into...
- Page 21 CDC160 DVD Case Wrapper Supplied by: JMV ROBOTIQUE ZI du Clos Aux Pois 6/8 Rue de la Closerie LISSES 91048 EVRY Cedex France Tel: 33 (0) 1 60 86 15 25 Fax: 33 (0) 1 60 86 10 74 Email: contact@jmvrobotique.com Website: www.jmvrobotique.com...
