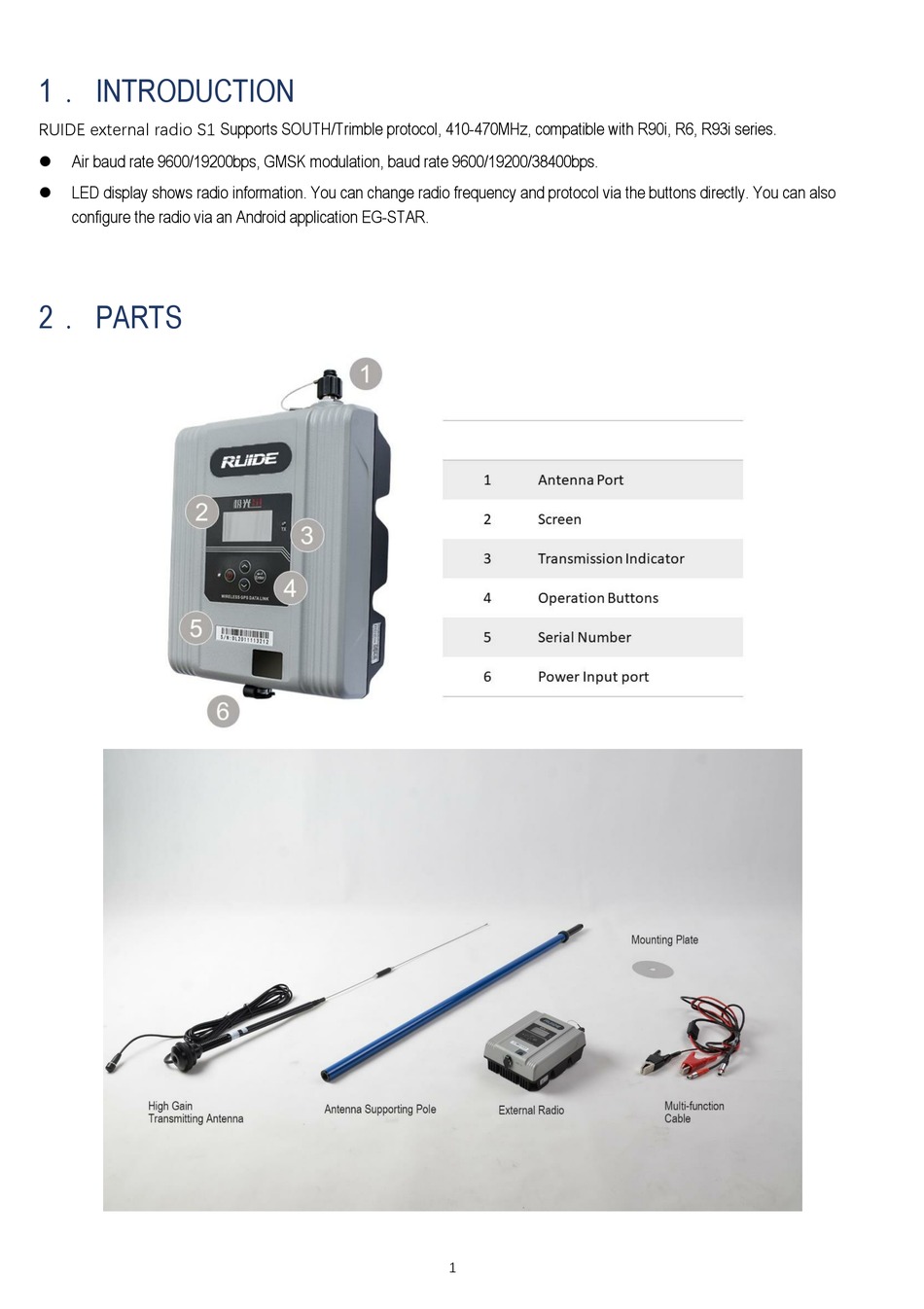

1． INTRODUCTION

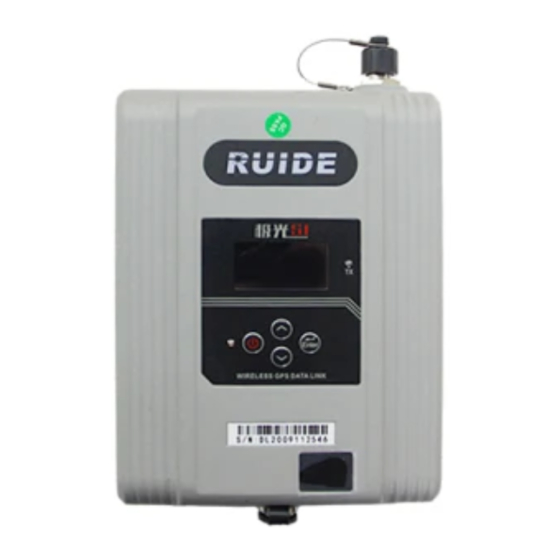

RUIDE external radio S1 Supports SOUTH/Trimble protocol, 410-470MHz, compatible with R90i, R6, R93i series.
⚫
Air baud rate 9600/19200bps, GMSK modulation, baud rate 9600/19200/38400bps.
LED display shows radio information. You can change radio frequency and protocol via the buttons directly. You can also
⚫
configure the radio via an Android application EG-STAR.
2． PARTS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ruide S1

  • Page 1 1． INTRODUCTION RUIDE external radio S1 Supports SOUTH/Trimble protocol, 410-470MHz, compatible with R90i, R6, R93i series. ⚫ Air baud rate 9600/19200bps, GMSK modulation, baud rate 9600/19200/38400bps. LED display shows radio information. You can change radio frequency and protocol via the buttons directly. You can also ⚫...

  • Page 2: Basic Operation

    3． BASIC OPERATION 3.1 Buttons : Press the Power button for 3 seconds to power on the radio. Press the power button 1 second to turn off the radio. LED: the indicator will on after turning on the radio. TX LED: the indicator will blink when the radio is transmitting. : left/up.

  • Page 3: Power Mode

    3.3.2 Frequency Press to move to Frequency Setting and press Enter. Press to move the cursor, press to modify the frequency, and press Enter to confirm and exit the setting. Frequency Range: 410MHz - 450MHz, or 450MHz- 470MHz. If the channel frequency of one receiver is between 410MHz - 450MHz, the other receiver SHOULD BE also between 410MHz- 450MHz.

  • Page 4: Serial Port Baud Rate

    3.3.5 Protocol Press to move to Protocol Setting, press Enter. Press to choose protocol either SOUTH or Trimble, press Enter to confirm and exit the setting. 3.3.6 Serial Port Baud Rate Press to move to Serial Port Baud Rate Setting, press Enter. Press to choose serial port baud rate 9.6/19.2/38.4KHz, press Enter to confirm and exit the setting.

  • Page 5: Specification

    4. Specification Protocol SOUTH/TRIMBLE Power 10W, 25W Frequency 410MHz~470MHz Interval 12.5/25KHz Rx sensitivity ≤0.25μV(12dB SINAD) Air baud rate 9600/19200/38400 Port baud rate 9600/19200/38400 Channels Interface Display 1.54” LCD Buttons 4 buttons Indicator 2 indicator Communication Bluetooth 4.0 5-pin LEMO external power port +RS232 TNC connector -40°C –...
