To Remove Existing Harness Tongues and Buckle and Attach Replacement Buckle
1
To loosen straps, lift lever
and pull harness straps.
4
Pull waist straps through
seat bottom and seat
pad as shown.
7
Slide NEW buckle
onto harness straps.
MAKE sure not to
twist straps.
11
Push bars back into
mounts using flat
head screw driver.

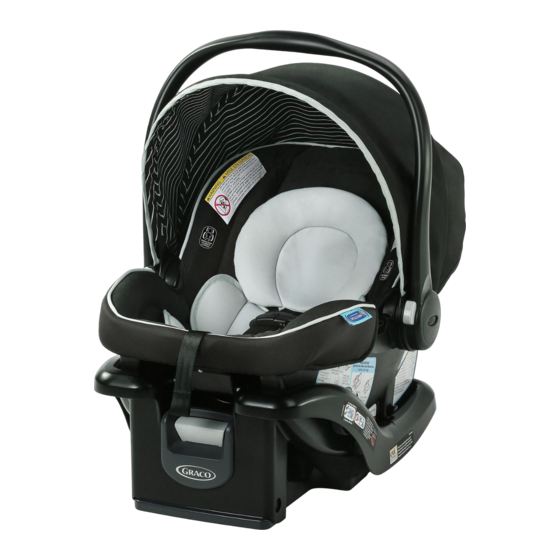

SnugRide® Click Connect™ 35LX/40
Buckle Replacement Guide
5
Slide old buckle
assembly off of
harness straps as
shown.
8
Insert waist straps
back through seat
pad and seat bottom
slots.
12
NEW buckle into
crotch slot in the
Top View
Using flat head screw
2
driver take waist strap
bars out of mounts.
6
9
Re-insert straps
through slots in seat
pad and seat back.
Insert metal
retainer from
seat pad and
seat bottom as
shown.
Bottom View
©2014 Graco PD265299C 2/14
3
Remove bars from
straps and set aside.
Bottom View
Reach under seat to the
metal retainer. Push the
retainer up through bottom
of seat and remove buckle
and discard.
10
Replace waist
strap bars.
Turn page over
to finish the rest
of the assembly
Steps 13 to 14
for the buckle
replacement.
