Hearth Technologies RC-ELEC Installation And Operating Instructions

RC-ELEC

INTRODUCTION

The RC-ELEC remote control system offers the user a re-
liable 110-120VAC powered remote control for use with
Hearth Technologies electric heater fireplace models. Re-
fer to your electric fireplace installation and operation manual
to verify if the RC-ELEC remote is approved for use with
your appliance.
WARNING
The RC-ELEC must be installed exactly as outlined
in these instructions. Read all instructions com-
pletely before attempting installation. Follow instruc-
tions carefully during installation. Any modification
of the RC-ELEC or any of its components will void
the warranty and may pose a fire hazard.
f i r e - p a r t s . c o m

OPERATION

TRANSMITTER
The transmitter operates on a 12V battery made specifi-
cally for remote controls and electronic lighters. Before us-
ing the transmitter, remove the insulation tab protecting one
end of the battery in the battery compartment.
It is recommended that
ALKALINE batteries al-
ways be used for longer
Battery Life and maximum
operational performance.
IMPORTANT: New or fully
charged batteries are es-
sential for proper opera-
tion of the transmitter.
The RC-ELEC functions
on one of 255 security
codes programmed at the
factory. The transmitter
sends either an ON or
OFF signal to the remote
receiver when either but-
ton is pressed. The sig-
nal light on the transmit-
ter illuminates to indicate
the signal is being sent to
the receiver.
Printed in U.S.A. Copyright 2001,
Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
Installation AND OPERATING INSTRUCTIONS
SIGNAL
LIGHT
ON
ON/OFF
OFF
BUTTONS
FRONT

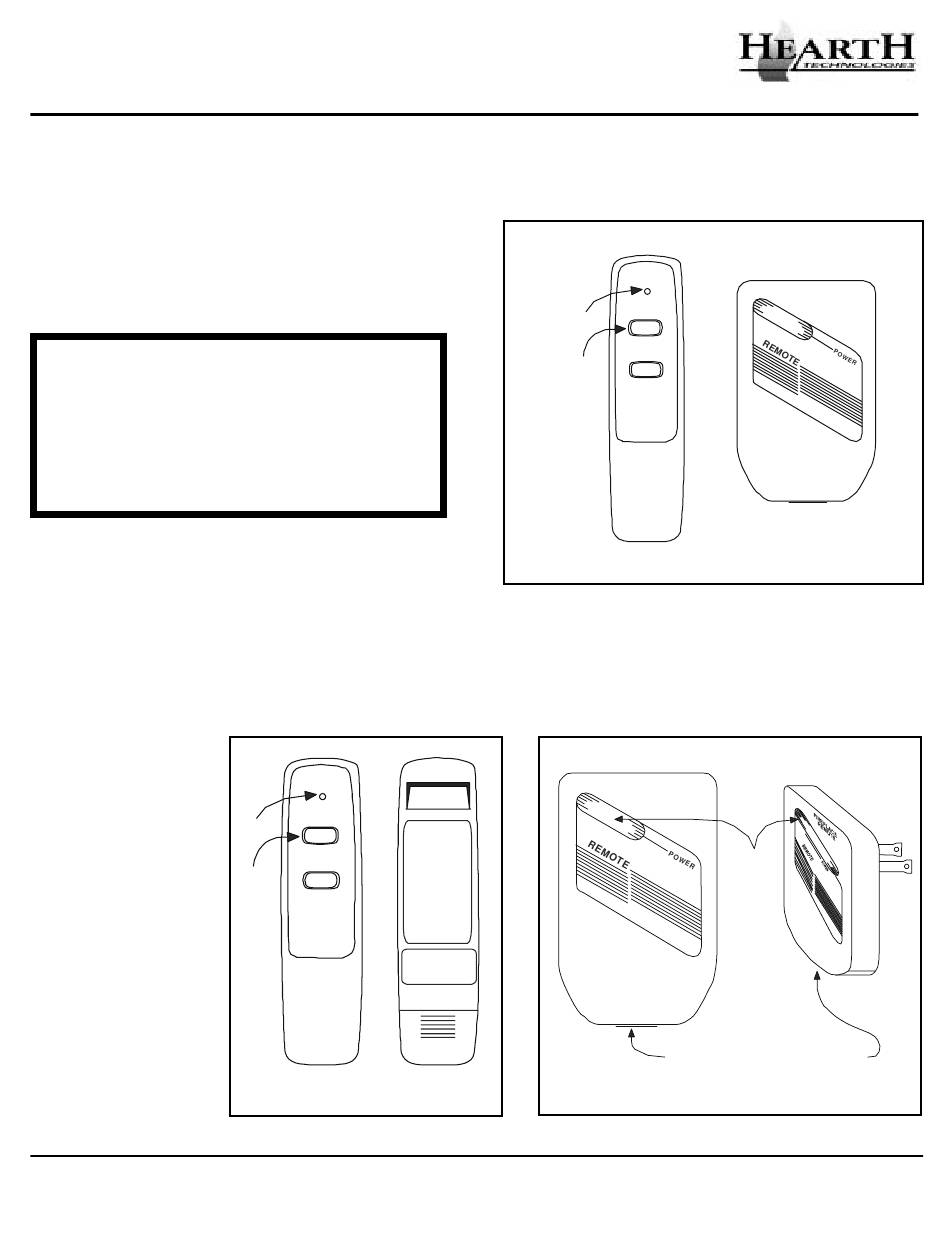

Figure 2: Transmitter

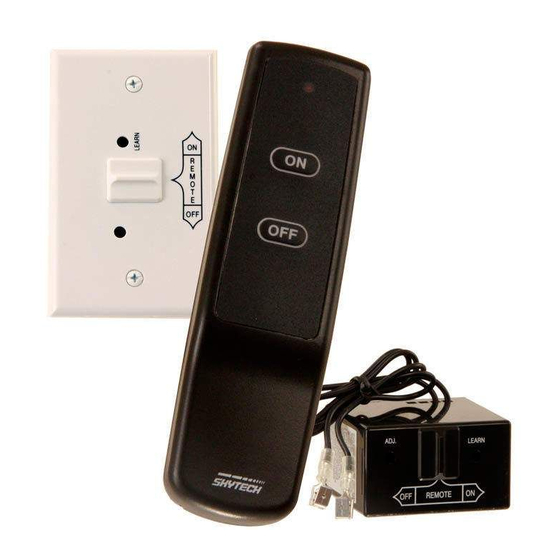

COMPONENTS

The RC-ELEC includes the following components:
SIGNAL
LIGHT
ON/OFF
BUTTONS
Figure 1: RC-ELEC Components
REMOTE RECEIVER
When plugged into a standard 110-120VAC receptacle, the
remote receiver can be used to control the 110-120 volt
components of ELECTRIC FIREPLACE models, with load
ratings up to 1800 watts.
WALL CLIP
SLOT
BACK
Figure 3: Remote Receiver
- 1 -
TRANSMITTER
REMOTE RECEIVER
ON
OFF
FIREPLACE
REMOTE
SIGNAL
LIGHT
REMOTE
RECEIVER
110-120VAC Output Receptacle
FIREPLACE
REMOTE
