Warranty We guarantee that the following products will be free from defects in material and workmanship for: ●Rechargeable Screen Handle: 1 year from the date of purchase ●Flexible insertion tube: 1 year from the date of purchase ●During the designated period, at our option, we will repair or replace any parts or the product found to be defective free of change.
Page 4

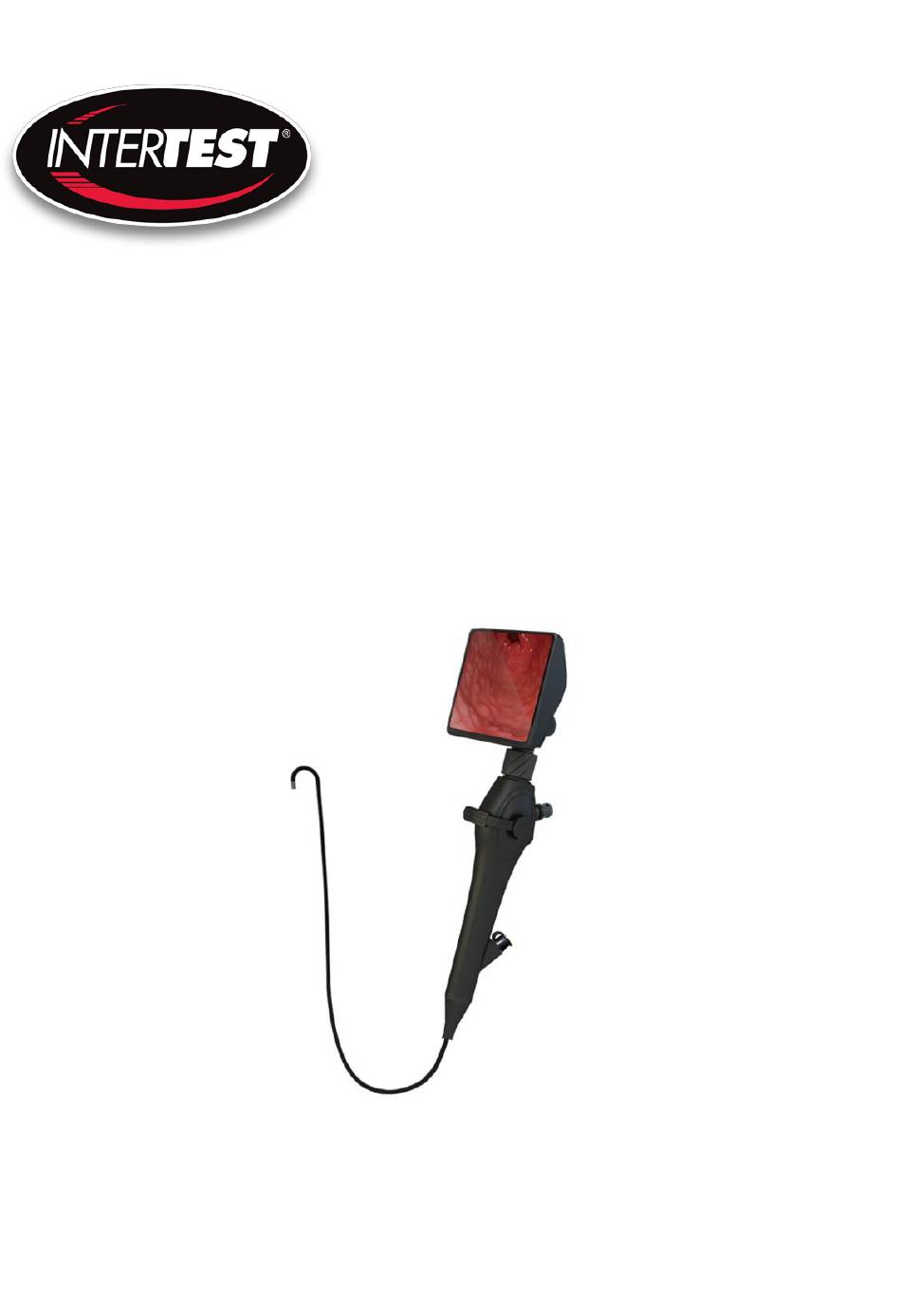

2. Description The whole set consists of the following main parts: ⚫ Outer diameter: □ 2.8 mm □ 3.8 mm / 1.2mm □ 4.8 mm / 2.2mm □ 5.2 mm / 2.4mm □ 5.8 mm / 2.6mm ⚫ Length: 60cm. ⚫...
3. Before use 3-1 Unpacking Take out all items from the case, and carry out the following: ⚫ Check if there are any parts missing. (See Table 1). ⚫ Inspect parts for damage. ⚫ Report damage or shortage to the local distributor, if any. List of Accessories Item Description...
Page 6
3-2 Charging ⚫ Plug the power cord into the USB port on the side of the screen. (Fig. 1). ⚫ Blue light indicator means charging. ⚫ The green light turns on when fully charged. Fig.1 3-3 Installation ⚫ Connect the flexible intubation with the screen, and ensure groove alignment (Fig.
Page 7
⚫ Photo/Video recording button on the handle: 1). One click to take photo 2). Press and hold to record 3). One click again to stop recording 3-5 Setting After Press Setting button, you will see the Screen on the following: ○...
Page 8
Automatic shut down when the device without operation ○ 3 File Formatting Caution: please save your file before you selected this function. ○ 4 FW updated: You can use this function when update the system 3-6 Menu and Function When the device is on ad you touch the screen, you will see the following: ①.Lightness Adjusting: Touch icon to adjust the lightness by referring the level from ②.Zoom: touch the icon and zoom by referring the level from ③.Photo Shooting...
Page 9
⑧. Lightness states ⑨. Zoom states ⑩/⑪. Date/time ⑫. SD Card ⑬. Battery ⑭. Image mirror ⑮. Image effect ⑯. RGB regulation ⑰. White balance ⑱. Image freeze ⑲. Flash lighting 4. Operating Instructions Connect the flexible video intubation and the screen, and then lubricate the stylet. (Fig.
Page 10
When the epiglottis appears on the screen, adjust the angle of the flexible stylet and then advance the stylet through the vocal cords. (Fig. 6 & 7) Fig. 6 Fig.7 Observe the condition on the screen, and insert the endotracheal tube. (Fig. 8 & 9) Fig.
5. Cleaning and Disinfection Flexible video intubation Method Wipe with a gauze pad with 75% alcohol Enzymatic Cleaning Solution Glutaraldehyde 2% solution - Cidex Ethylene Oxide Gas (E.O.) Autoclave 6. Service There is no user serviceable parts inside the qualified screen handle, which has passed performance tests and quality assurance tests and meet qualification criteria prior to shipment.
Data transfer Check whether the Loose connection failure cable’s firmly connected. Blurred image Len stains Clean the lens Important: After trying all above solutions but the problems remain, please contact the local distributor. 8. Specification Display 4 inch IPS Full view display Display resolution 480*480 Operation...
part Distal end outer diameter | Channel inner diameter 2.8mm none Optional insertion 3.8mm 1.2mm tube 4.8mm 2.2mm 5.2mm 2.4mm 5.8mm 2.6mm Insertion tube lens Two way adjustment view Foreign body 700mm/1200mm(Optional) forceps 9. General Information 9-1 Safety Standards Safety requirements Meets the requirements of GB9706.1-2007 and GB9706.19-2000 Electromagnetic compatibility (EMC) Meets the requirements of YY0505-2012 and GB9706.19-2000.
Page 14
Ambient temperature: -5ºC ~ 40ºC Relative humidity: ≤80% (no condensing) Atmospheric pressure: 700hPa ~ 1060hPa Never place it in direct sunlight or near any other source of cold or heat. Storage and transportation conditions Ambient temperature: -20 ° C ~ +55 ° C Relative humidity: ≤93% 9-3 Annex Annex: 1...
Page 15
and those directly connected to a low Harmonic Emissions voltage power supply network which GB 17625.1 supplies buildings used for domestic Voltage purposes. Fluctuations/Flicker Emissions GB 17625.2...
Annex: 2 Guidance and manufacturer’s declaration—electromagnetic immunity Video Intubation Set is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that the device is used in such an environment. Immunity IEC 60601 Test Compliance Electromagnetic...
Page 17
Annex: 3 Guidance and manufacturer’s declaration—electromagnetic immunity Video Intubation Set is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that the device is used in such an environment. Immunity IEC 60601 Test Compliance Electromagnetic...
Annex: 4 Guidance and manufacturer’s declaration—electromagnetic immunity Video Intubation Set is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that the device is used in such an environment. Immun IEC 60601 Complianc Electromagnetic...
Page 19
Annex: 4-(continue) Guidance and manufacturer’s declaration—electromagnetic immunity Immunity IEC 60601 Test Compliance Electromagnetic Test level level environment-guidance separation distance in meters (m). Field strengths from fixed RF transmitters, should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with the following symbol: NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
Annex: 5 Recommended separation distances between portable and mobile RF communications equipment and the device Video intubation set is intended for use in an environment in which radiated RF disturbances are controlled. The customer or the user of the device can be help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment(transmitters) and the device as recommended below, according to the maximum output power to the...
Page 21
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. InterTest, Inc. 303 Route 94 Columbia, New Jersey 07832 Tel: 908-496-8008 Fax: 908-496-8004 https://intertest.com...
