Summary of Contents for Andersen Electric Nordic 18000
- Page 1 NORDIC – WALL SPLIT Manual for remote control of air conditioning - Nordic 18000 AUTO COOL DRY HEAT ECO SLEEP TIMER I FEEL HEALTH DISPLAY 8 CH OPTION TURBO MODE IMPORTANT NOTE: Read this manual before first use and keep it for later.
-
Page 2: Table Of Contents
Contents Specifications ....................3 Overview of buttons ..................4 Indicators on the LCD screen ..............6 Button operation ..................7 Handling the remote control ..............13 www.andersen-electric.com... -
Page 3: Specifications
Specifications Nominal voltage 3.0V (2 × R03/LR03 dry-cell batteries) Range, signal Ambient temperature -5°C ~ 60°C www.andersen-electric.com... -

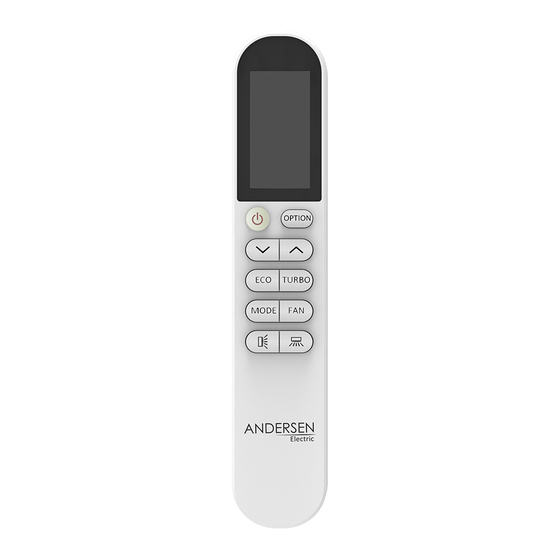

Page 4: Overview Of Buttons
Overview of buttons AUTO COOL DRY HEAT ECO SLEEP TIMER I FEEL HEALTH DISPLAY 8 CH OPTION TURBO MODE www.andersen-electric.com... - Page 5 Overview of buttons No. Button Function Press the button to turn on or off Activation of additional functions OPTION Press the button to lower the temperature / time setting Press the button to increase the temperature / time setting Press this button to activate / deactivate the ECO function, which allows the device to achieve energy savings automatically Press this button to activate / deactivate the TURBO function, which TURBO...
-
Page 6: Indicators On The Lcd Screen
Indicators on LCD screen Symbols Significance Function indicator Lock indicator Battery status AUTO AUTO mode activated COOL COOL mode activated DRY mode activated FAN mode activated HEAT HEAT mode activated ECO function activated Hours are activated TIMER Temperature indicator Fan setting: Auto, Low, Medium, High Flashes Silent mode activated Turbo mode activated... -
Page 7: Button Operation
Button operation 1 ON/OFF button The machine starts when this button is pressed and stops when the button is pressed again. AUTO COOL DRY HEAT ECO 2 OPTION Press the OPTION button to select additional functions: SLEEP, TIMER, FEEL, DISPLAY, FROST PROTEC- SLEEP TIMER I FEEL TION. - Page 8 Button operation start-up time automatically increases with intervals of 30 minutes. When the time set shows 10 h, each press will increase the time set with 60 minute AUTO COOL DRY intervals. HEAT ECO 3. Press OPTION to save the settings. 4.
- Page 9 Button operation button Press this button to increase the set indoor temperature in intervals of 1°C (up until 31°C). AUTO COOL DRY HEAT ECO button Press this button reduce the set indoor temperature in intervals of 1°C (down to 16°C). SLEEP TIMER I FEEL HEALTH...
- Page 10 Button operation 7 MODE button Press this button to change the mode of the air conditioner in the following order: AUTO COOL DRY AUTO COOL HEAT ECO HEAT (AUTO, COOL, DEHU- MIDIFY, FAN, HEAT mode) AUTO mode SLEEP TIMER I FEEL Make sure the device is connected HEALTH and the power is on.
- Page 11 Button operation COOL/HEAT/FAN mode Make sure the device is connected and the power is on. AUTO COOL DRY 1. Press the MODE button to select the HEAT ECO COOL, HEAT or FAN mode. 2. Press the buttons to set the desired temperature.
- Page 12 Button operation 8 FAN button Used to select fan speed in four steps: Auto, Low, Medium, High Flashes AUTO COOL DRY HEAT ECO button Used to stop or start the movement of the horizontal slats or to set the de- SLEEP TIMER I FEEL sired air direction (up/down).
-
Page 13: Handling The Remote Control
Handling the remote control Location of the remote control. Use the remote control within 8 metres of the appliance and point it in the direction of the receiver. Receipt is confirmed with a beep. Note: If other electrical appliances The air conditioner does not work respond to the remote control, if curtains, doors or anything else either move these appliances or... - Page 14 Handling the remote control Replacement of batteries The following may be signs of used batteries. The signal is not confirmed by a beep. Indicators on the LCD display fade. Replace old batteries with new ones. The remote control is powered by two dry-cell batteries (R03/LR03X2) at the bottom of the back side, which are protected by a cover.
- Page 15 www.andersen-electric.com...
- Page 16 Subject to printing errors. Subject to change without notice. See the latest version at www.andersen-electric.com Saltebakken 29, DK-9900 Frederikshavn. Tel. +45 7020 4043, www.andersen-electric.com...
