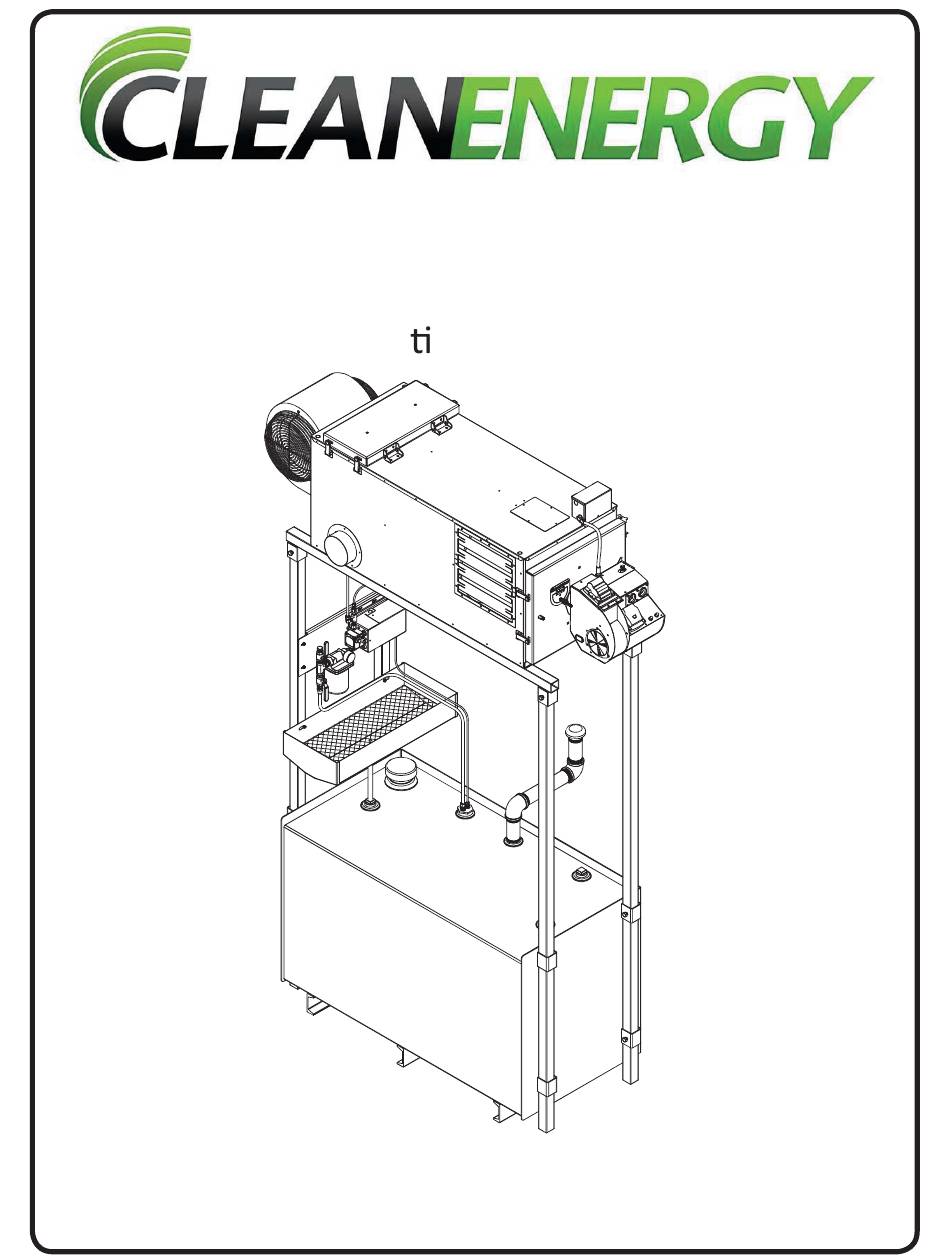

- Page 1 ® Heating Systems OWNER’S MANUAL Hea ng Center CE70069 Clean Energy Heating Systems, LLC 540 Maple Street, Honey Brook, PA 19344 www.CleanEnergyHeatingSystems.com (888) 519-2347...
- Page 2 The Clean Energy logo is a registered trademark of Clean Energy Heating Systems, LLC. COPYRIGHT Copyright © 2015 Clean Energy Heating Systems, LLC. This manual may not be reproduced or distributed without the prior written permission of: Clean Energy Heating Systems, LLC.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY CONSIDERATIONS AND GUIDELINES................ 4 HEATING CENTER ASSEMBLY ....................5 Tank and Support Legs Assembly ..................5 Mounting the Drain Pan ..................... 6 Mounting the Pump Assembly ................... 6 Installing the 4” Emergency Vent ..................7 Installing the 2” Breather Vent ................... 7 MOUNTING THE FURNACE ON THE HEATING CENTER............ -
Page 4: Safety Considerations And Guidelines
SAFETY CONSIDERATIONS AND GUIDELINES DANGER: DO NOT store or use gasoline or other flammable/explosive liquids/vapors in or around the furnace. DANGER: DO NOT operate the furnace if excess oil, oil vapors, or fumes have accumulated in or around the furnace. WARNING: DO NOT mix unapproved substances to the used oil supply, such as: •... - Page 5 HORIZONTAL SUPPORTS (X2) FASTEN FURNACE SUPPORTS TO THE HEATING CENTER (X2) SET SCREWS TIGHTENED (X12) FOUR VERTICAL 2X2 POSTS CE70072 RESTING ON THE FLOOR Figure 1: Tank and Support Legs Assembly CE-330 68" CE-250 62" CE-180 50" CE-140 45" FRONT OF BACK OF FURNACE SCREWS...
-
Page 6: Mounting The Drain Pan
HEATING CENTER ASSEMBLY Mounting the Drain Pan: (1) Refer to Figure 2 (2) Assemble the drain pan, ball valve, LARGE SELF and pipe DRILLING SCREWS (3) Install the 2” tank bushing in the open port directly below the location of the drain pan (on the left side when facing the tank) (4) Slide the pipe through the 2”... -
Page 7: Installing The 4" Emergency Vent
HEATING CENTER ASSEMBLY Installing the 4” Emergency Vent: (1) Refer to Figure 2 for the 4” Emergency Vent location (2) Install the 4” Emergency Vent in accordance with all state and local codes Installing the 2” Breather Vent: (1) Refer to Figure 4 (2) Use proper 2”... -
Page 8: Mounting The Furnace On The Heating Center
MOUNTING THE FURNACE ON THE HEATING CENTER (1) Refer to Figure 5 (2) Use the self-drilling screws provided to attach the furnace to the two Furnace Support Brackets. Review Figure 2 and keep screws out of the “no screws” area. No screws should be in this area to keep from penetrating the bottom of the heat exchanger. - Page 9 BRACE SECURED TO WALL AND SUPPORT LEGS (MIN. 2 PLACES) CE70075 Figure 6: Adding Braces From the Support Legs to the Wall...
-
Page 10: Heating Center Expanded View
HEATING CENTER EXPANDED VIEW ITEM PART # DESCRIPTION QTY. 60023 Heating Center Assembly 50181 Tank Legs and Support 50180 Tank Heating Center 50182 Drain Pan 60024 Heating Center Install Pack 20168 Pump Mounting Bracket 50179 4" Male Tank Emergency Vent 50187 Vent Weather Resistant Breather 2"...
