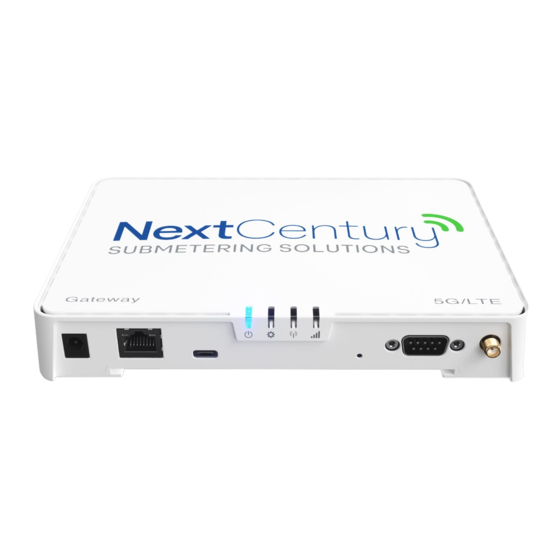

GW4 Gateway
NextCentury 5G Cellular Gateway
Operation and Installation Guide
A 15 VDC Power C USB C Port
B Ethernet Port
D LED Indicators
1| Product Overview
The NextCentury GW4 Gateway introduces the
next generation of superior wireless utility
management.
The GW4 Gateway's embedded 5G cellular modem
provides an instant data connection right of the box,
making setup fast and simple.
Simple to Connect
The GW4 Gateway is your property's Gateway to the
NextCentury
Cloud.
Utility
NextCentury meter end-point devices is kept in sync using
one of 3 available data connections:
• Ethernet (Gigabit)
• WiFi (2.4/5 GHz)
• Cellular (5G & LTE)
E 3
rd
Party Port
F Antenna Port
data
received
from
sales@nextcenturymeters.com
www.nextcenturymeters.com
2| Technical Specifications
2.1 – Certifications
FCC ID: 2AB8I-GW4
Contains FCC ID: RI7WE866C6 IC: 6131A-WE866C6
Contains FCC ID: N7NHL78
2.2 – Wireless Communication
• Two-way NextCentury RF Connect™
• 902-928 MHz Unlicensed Band
2.3 – Cellular Data Communication Option
• 5G & LTE
• Simple to manage cellular subscription
• No contracts or hidden fees
2.4 – LAN Data Communication Options
• Gigabit Ethernet
• WiFi (2.4 GHz and 5.0 GHz b/g/n/ac)
2.5 – In-Field Configuration
• Direct Connect configuration using the iOS or
Android mobile app
2.6 – Dimensions
• 5.1in x 1.2in x 7.7in (129mm x 31mm x 195mm)
2.7 – Operation Environment:
• -20°C to 60°C (-4°F to 140°F )
• Should be installed in an indoor, dry environment
3.1 – Mounting Plate Installation
Each Gateway comes with a mounting plate and can be
installed using the mounting screws and anchors to secure the
Mounting Plate to the wall.
IC: 20949-GW4
IC: 2417C-HL78
V. 041522
