Summary of Contents for CDVI ievo IFACE

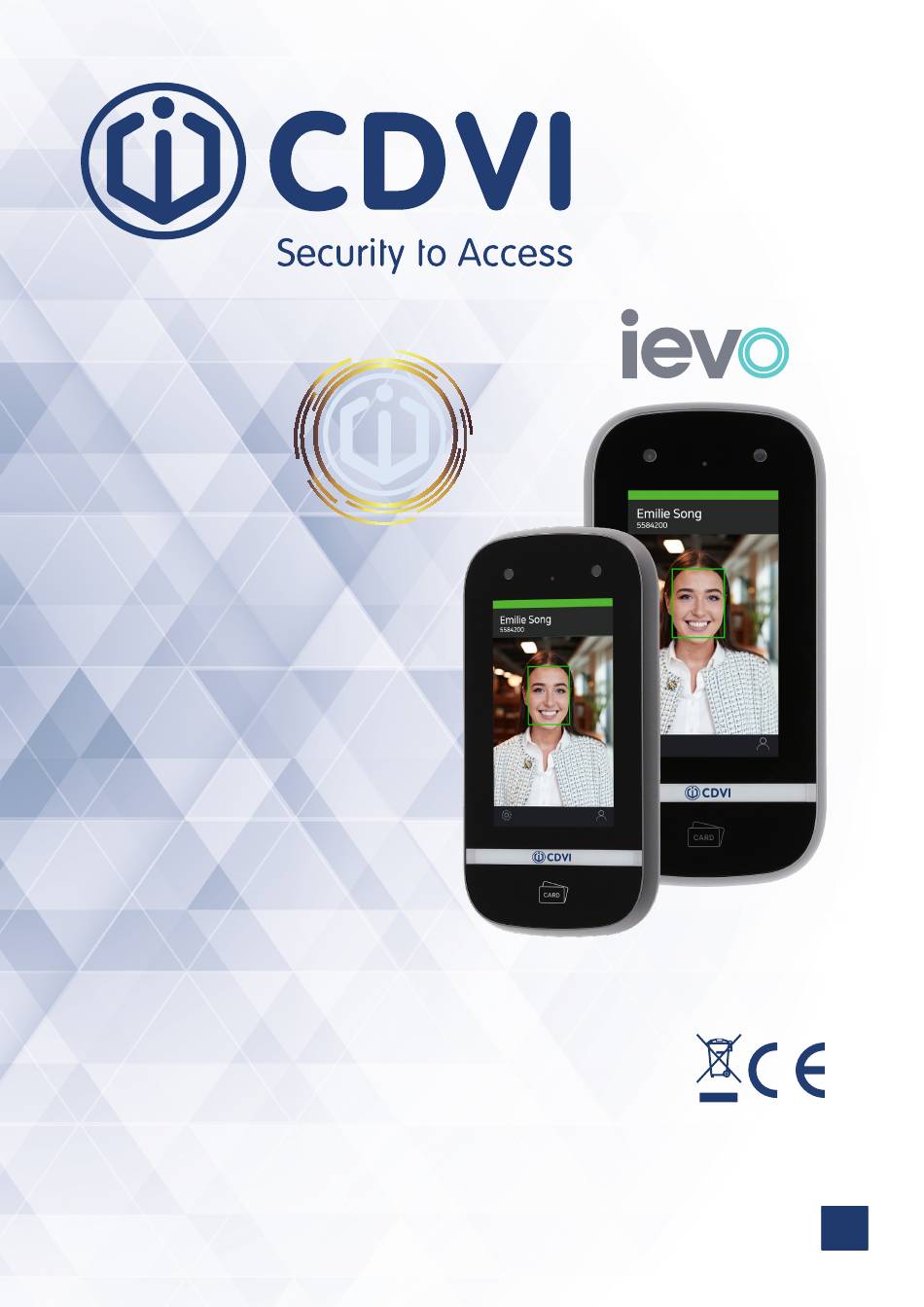

- Page 1 YEAR WARRANTY IFACE™ ievo iface Facial Recognition Terminal ™...
-
Page 2: Table Of Contents
IFACE™ ievo iface™ Facial Recognition Terminal 1] CONTENTS Title Page 2] INTRODUCTION About this Manual Conventions 3] PACKAGE CONTENTS 4] PRODUCT PRESENTATION Technical Specifications Parts and Functions Accessories Terminals Touch Screen 5] INSTALLATION Installation Requirements Installation Procedure 6] WIRING Power Connection... -
Page 3: Introduction
IFACE™ ievo iface™ Facial Recognition Terminal 2] INTRODUCTION About this Manual iface is an advanced face recognition terminal that provides highly accurate face recognition in an embedded system. This manual contains the descriptions and operational instructions for iface device. It is intended and written for system administrators who are in charge of overall operation including installation and management. -
Page 4: Product Presentation
IFACE™ ievo iface™ Facial Recognition Terminal 4] PRODUCT PRESENTATION Technical Specifications 38 mm 100 mm 36 mm 43 mm 60 mm Feature Description ARM Cortex A53 OctaCore (8 core) operating at 1.4GHz Memory 2GB RAM, 8GB Flash Number of cameras Display 5”... -
Page 5: Parts And Functions
IFACE™ ievo iface™ Facial Recognition Terminal Parts and Functions Item Description Camera Captures the face images IR LED Illuminates the face using the NIR lighting when capturing the faces Touch screen Shows preview images before capture and provides a graphical interface... -
Page 6: Terminals
IFACE™ ievo iface™ Facial Recognition Terminal Terminals Tripod socket Tamper swtich SIM card slot (optional) SIM card slot (optional) Removable tabs x3 Item Description Tripod socket (not supplied) Attaches a tripod (or equivalent mount) with a standard 1/4-20 UNC screw... -
Page 7: Touch Screen
IFACE™ ievo iface™ Facial Recognition Terminal Touch Screen A CDVI Group Brand No. Item Description Status indicator Shows the status of network connection and third party application • White: Online • Red: Offline, not usable Settings button Enters the device setup menu screen... - Page 8 IFACE™ ievo iface™ Facial Recognition Terminal • Determine the height at which you install the device; The recommended mounting height is 135 cm (53 inches) from the floor to the bottom of the device. This covers a person’s height from 140 cm (55 inches) up to 190 cm (75 inches) at a distance of 55 cm (22 inches) from the device.
- Page 9 IFACE™ ievo iface™ Facial Recognition Terminal Tool Requirements The following tools can be necessary for installation and are not supplied by default. Purpose Name Tool Note Screw driver Cross head General For measuring the installation Tape ruler height Cutting plier...
-
Page 10: Installation Procedure
IFACE™ ievo iface™ Facial Recognition Terminal Installation Procedure Wall mount You can install the device onto a wall directly by using the mounting plate. 1. Remove the screw that attaches iface 1. Put the mounting plate at the pre- the mounting plate and disassemble the determined position and attach the plate plate. -
Page 11: Wiring
IFACE™ ievo iface™ Facial Recognition Terminal Gang box mount You can also install the device on a gang box (outlet box) by using the mounting plate. 1. Remove the screw that attaches iface 1. Put the mounting plate onto the gang box... -
Page 12: Network Connection
IFACE™ ievo iface™ Facial Recognition Terminal Network Connection RJ-45 connector for 10/100/1000 Base-T Ethernet communication, minimum CAT5 cable. Relay Connection Relay Normally Open (NO) - Black Common (COM) - Red Normally Closed (NC) - Grey Wire Gauge: 24 AWG GPI 0 - Red... - Page 13 IFACE™ ievo iface™ Facial Recognition Terminal Fail Safe Configuration Fail Secure Configuration Door Lock Door Lock Relay Connection - Automatic Door Pin Output Function Normally Open (NO) RELAY Common (COM) Normally Closed (NC) GPI 0 GPI 1 GPI 2 Ground (GND)
- Page 14 IFACE™ ievo iface™ Facial Recognition Terminal Relay Connection - Alarm light Internal relay interface with nominal switching capacity of 1A, 30Vdc or 0.3A, 120Vac, resistive load. Output Function Normally Open (NO) RELAY Common (COM) Normally Closed (NC) GPI Connection Pin Output Function...
-
Page 15: Enrollment
IFACE™ ievo iface™ Facial Recognition Terminal Wiegand DATA 0 - IN - Green DATA 1 - IN - White DATA 0 - OUT - Blue DATA 1 - OUT - Grey Ground (GND) - Black Wire Gauge: 24 AWG Wiegand IN... -
Page 16: Authentication
IFACE™ ievo iface™ Facial Recognition Terminal 8] AUTHENITCATION iface detects and displays the subject’s face over 2.0 meters from the system on the high-resolution color display. The subject will naturally walk toward the face capture range (of 0.4 - 2m). Once the system recognises... -
Page 17: Advanced Settings - Osd Menu List
IFACE™ ievo iface™ Facial Recognition Terminal 9] ADVANCED SETTINGS - OSD MENU LIST To enter the advanced setting menus of the iface , press the Gear button on the main screen. The following options will be displayed: 1. User 2. Device 3. -
Page 18: Communication
IFACE™ ievo iface™ Facial Recognition Terminal Sub-menu Options Description Tamper Modes Selects a tamper protection mode: Not used, Beep mode, Secure mode Standalone mode: If you select Secure mode, all the data and settings are deleted permanently in the device when physical tampering is detected / attempted. -
Page 19: Display
IFACE™ ievo iface™ Facial Recognition Terminal 4. Display Sub-menu Description Language Selects a display language Time display Selects time notation between 12-hour and 24-hour clock format: 12 hours, 24 hours Menu timeout Select timeout for auto exit from menu display after... - Page 20 +39 (0) 321 90 573 www.cdvi.it CDVI MAROC +212 (0) 5 22 48 09 40 www.cdvi.ma CDVI SWEDEN [SWEDEN - DENMARK - NORWAY - FINLAND] +46 (0) 31 760 19 30 www.cdvi.se CDVI UK [UNITED KINGDOM - IRELAND] +44 (0) 1628 531300 www.cdvi.co.uk...
