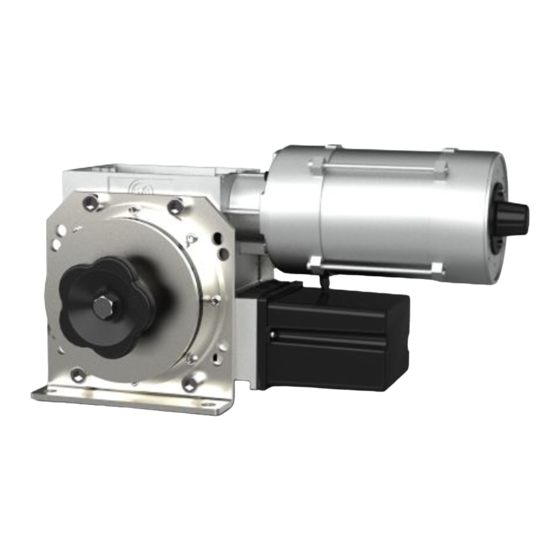

- Page 1 Installation Instructions ELEKTROMAT ST 30.15-40,00 Model: 10003373 00006 -en- Status: 14.02.2022...
- Page 2 GfA ELEKTROMATEN GmbH & Co. KG Wiesenstraße 81 D-40549 Düsseldorf www.gfa-elektromaten.de info@gfa-elektromaten.de...
-
Page 3: Table Of Contents
Table of contents General safety information ....................4 Technical data ........................ 6 Mechanical installation ....................7 Electrical installation ..................... 11 Motor connection ......................12 Limit switch connection ....................12 ... -
Page 4: General Safety Information
1 General safety information Specified normal use The drive unit is intended for horizontally operating sliding doors. The drive unit must be protected against moisture and aggressive environmental conditions (such as corrosive substances). The drive units are only suitable for indoor use. Appropriate protective measures must be taken for outdoor installation. - Page 5 Warning - Failure to follow these installation instructions may result in severe injury or death. Please read these instructions before using the product. Keep these instructions handy. Include these instructions when passing on the product to third parties. Warning - Danger from improper use of the product! ...
-
Page 6: Technical Data
2 Technical data Designation Unit Output speed Output torque 300 (300) Output / hollow shaft 40,00 Series SG 85R Limit switch range (maximum revolutions of the output / hollow shaft) Supply voltage 3N~ 400 Operating current 2,95 Operating frequency Power factor cos φ 0,58 Safety circuit Degree of protection... -
Page 7: Mechanical Installation
3 Mechanical installation Prerequisites The permissible loads on walls, fastenings, mountings and transmission elements must not be exceeded, even for maximum holding torques or locking torques (▶ refer to technical data). Connection elements ▶ Self-locking connection ▶ Utilize the hole diameter ▶... - Page 8 Mounting Four holes are provided for mounting. BAGAD0 3 3 0 1 _Z0 0 2...
- Page 9 Installation The descriptions below apply to general door specifications. The specifications of the door manufacturer must also be observed during installation. Warning - Potential injury or danger to life! During installation, be sure to use a lifting device that has a sufficient load- carrying capacity.
- Page 10 ▶ Tighten all connection elements (M12) to BAGAE0 0 3 3 0 2 _Z0 0 2 75 Nm. Install all other connection elements according to the specifications of 75 Nm the door manufacturer. Warning - Potential injury or danger to life! ...
-
Page 11: Electrical Installation
4 Electrical installation Warning - Danger to life from electric current! Switch the mains OFF and check that the cables are de-energised Observe the applicable regulations and standards Make the electrical connection according to standard Use suitable tools Performing electrical installation Remove the cover. -
Page 12: Motor Connection
5 Motor connection Half-wave rectifier Motor Magnetic brake 6 Limit switch connection Thermal contact... -
Page 13: Completing Commissioning / Inspection
7 Completing commissioning / inspection Check the following components and then install all covers. Gearbox Check the drive unit for loss of oil (a few drops can be neglected). Protect the output-shaft permanently against corrosion. Mounting Check that all connection elements (consoles, torque mounts, screws, locking rings, etc.) are secure and in proper condition. - Page 14 Brake Warning - Potential injury or danger to life! Carry out a brake test. Overrun depends on the door and its equipment. The specifications of the door manufacturer must be observed. In an environment that can affect the coefficient of friction of the brake pad (atmosphere with oil, solvents, detergents, etc.), class of protection IP65i must be adopted.
-
Page 15: Disposal
8 Disposal Dispose of packaging Dispose of the packaging material properly according to the local legal regulations or recycle Dispose of old devices Dispose of old devices properly according to local legal regulations. Return old devices to the return and collection systems available. You can also return GfA products free of charge. Please apply enough postage to the package and mark it as "old devices". -
Page 16: Declaration Of Incorporation / Declaration Of Conformity
EMC Directive 2014/30/EU within the meaning of RoHS Directive 2011/65/EU The following requirements from Appendix I of GfA ELEKTROMATEN GmbH & Co. KG the Machinery Directive 2006/42/EC are met: declare under our sole responsibility that the 1.1.2, 1.1.3, 1.1.5, 1.2.2, 1.2.3, 1.2.6, 1.3.2,...
