Summary of Contents for Olis VDM-200

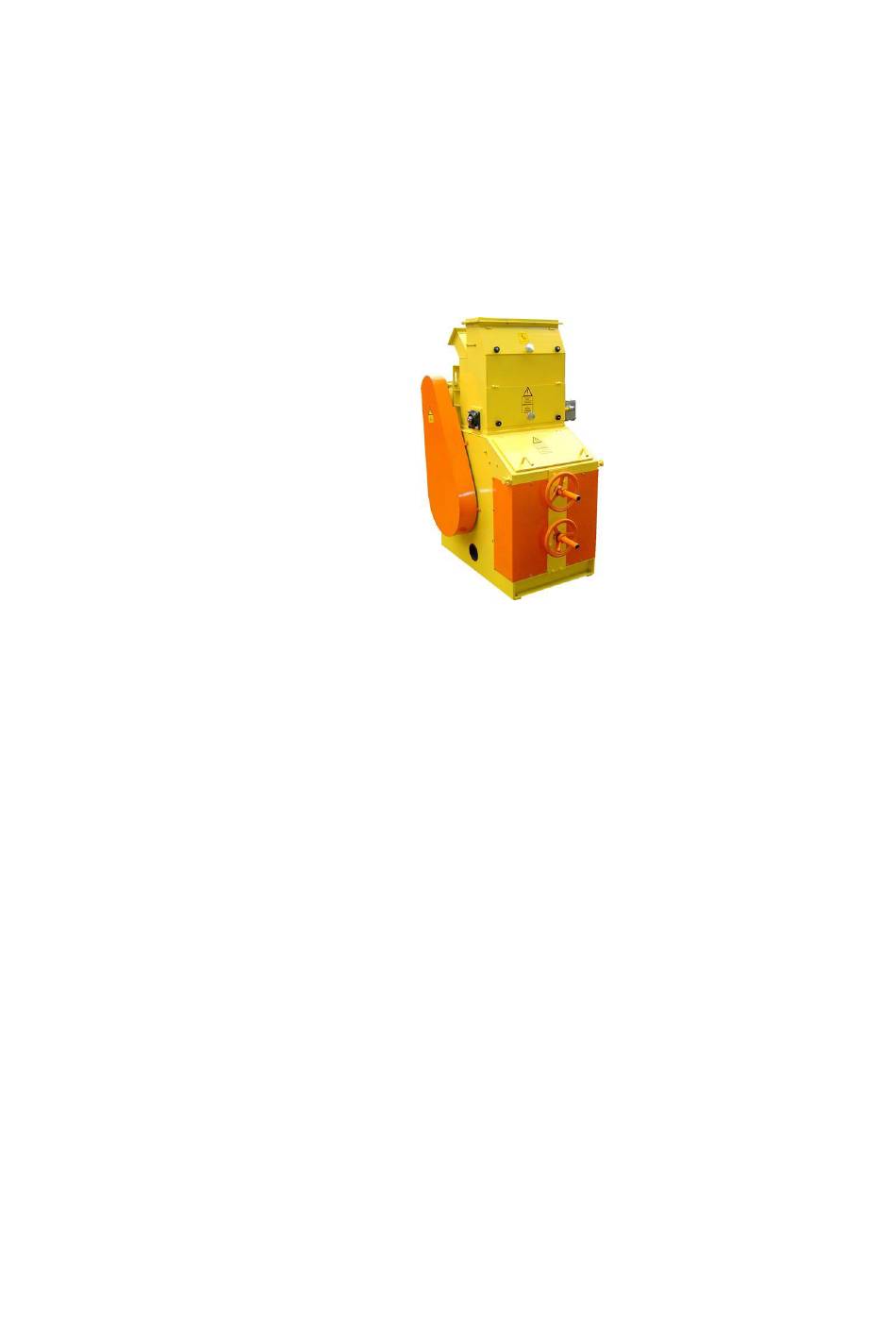

- Page 1 «OLIS» Ltd. Peeling Machine VDM-200 Operating Manual VDM-00.00.000OM (incl. the Manufacturer’s Certificate) Odessa...
-
Page 2: Table Of Contents
14. Repairs and Performance Records Due to Bulletins and Instructions 15. Notes on Maintenance and Storage Annex VDM-00.00.000OM Изм. Лист № докум. Подпись Дата Лит. Лист Листов Разраб. Коротченко Проверил Федоренко Peeling Machine VDM-200 ТОВ «ОЛИС» Н. Контр. Утвердил Верещинський Затв. - Page 3 This Operating Manual (OM) is included in the design documentation for the peeling machine VDM-00.00. - hereinafter referred to as «the Product», and intended for giving the engineering employees and the maintenance personnel of operational services insights into purpose, construction, technical characteristics, operating principles, possible malfunctions and their elimination, features of service and repair of the Product, as well as with the manufacturer's guarantees.
-
Page 4: Description And Operation
In order to improve the design and operational characteristics, some slight changes in the design of the Product are possible, which are not reflected in this Manual. The warning sign in this Operating Manual requires special care, taking into account the health hazard and possibility of damage to the Product. The user must develop a safety instruction and technical maintenance regulations for the Product with due consideration of conditions, operation rate and the requirements of this OM. -
Page 5: Technical Specifications
Technical Specifications Modification VDM-200G VDM-200P 1,5…1,8 Productivity, t/h Pre-installed electric power capacity, kW Mains Voltage, V 380±20 380±20 Frequency, Hz Rotation frequency of the roller, rot/min Airflow rate for aspiration, m3/h Weight, kg Overall dimensions, mm. length width height 1032 1032 Лист... -
Page 6: Product Structure
1.3. Product Structure The Product (see Fig. 1) consists of a bed 1, a feed unit 2 with a regulating valve 3, a grain supply duct 4, an aspiration duct 5. There is a duct 6 on the bed for feeding out the processed material, on bearings 7 there is an operating roller 8, on bearings 9 there is an axis 10 with levers 11 to which the body 12 is fixed with the head 13, equipped with a working clearance adjustment mechanism consisting of screws 14, nuts 15 with... - Page 7 fig. 1 Peeling Machine VDM Лист ВДМ-00.00.000 РЭ Изм Л № докум. Подпись Дата исИзм...
- Page 8 fig. 1 Peeling Machine VDM Лист ВДМ-00.00.000 РЭ Изм Л № докум. Подпись Дата исИзм...
-
Page 9: Electrical System
. Electrical System The structure of VDM-200G includes 4A90L4 electric motor (1500 rpm; 2.2 kW). The structure of VDM-200P includes AIR 100S4 electric motor (1500 rpm; 3 kW). The Product installation design shall provide a connection plan to the electrical circuit of the enterprise, overload protection, as well as coordinated functioning as part of the workshop manufacturing equipment. - Page 10 It is forbidden to use the Product without connecting to the protection circuit! It is forbidden to use the Product if there are any defective or non- functioning parts and components! When using the Product, the electrical control cabinet must be closed with a special tool! It is forbidden to operate the Product with open covers, protective cover removed, unsecured parts.
-
Page 11: Product Preparation For Use
2.3 Product Preparation for Use The Product should be delivered in its package to the installation site. The hooks 33 (see fig. 1) made in the upper part of the frame should be used for performing the rigging works. Upon its delivery, the preserved Product should be re-preserved prior to the installation, in accordance with section 1.3.5 of this OM. -
Page 12: Product Usage
It is forbidden to exceed the rated speed of the abrasive roller given in the technical specifications! 2.4. Product Usage Set the Product in operation in the following order: - the bunker slide valve and the gate valve 3 (see Fig. 1) in the feeder unit are in the “Closed”... -
Page 13: Operation In Extreme Conditions
2.5. Operation in Extreme Conditions The following extreme conditions may occur: – shutdown or unsatisfactory operation of the aspiration system which may result in increased dust content as well as fire potential; – destruction of the roller, the head, or foreign objects got into the operation zone between the roller and the head result in increased vibration chatter, hammering occurrence, strong noise. -
Page 14: Maintenance Procedures
3. Maintenance Procedures 3.1.1. General Guidelines Maintenance procedures of the Product include the following: - Periodic Maintenance – after 500 hours of operating time. - Running Maintenance – after 3000 hours of operating time, but not less than once a year. - Intermediate Maintenance –... -
Page 15: Maintenance Intervals
3.1.2. Maintenance Intervals To carry out periodic maintenance of the Product, to replace its parts, it is necessary to complete the operation of the Product under load, process all the material out of the working cavity, switch off the Product electric motor, and make sure that the roller is completely stopped. -
Page 16: Product Operability Check
Attention! It is strictly forbidden to throw and roller or to roll it over to avoid damage to the abrasive! The roller should be conveyed by cabling ropes tied up to the ends of the shaft. At the same time, in places where the roller ends touch the cabling rope, wooden blocks should be underlain. -
Page 17: Product Preservation And De-Preservation
- during operation of the Product both under load and at idle, there must be no strong noise or vibration. The operability check of the Product is carried out by a shift foreman, a workshop mechanic. 3.1.5. Product Preservation and De-Preservation The product is delivered in a preserved form if it has been stored for more than one month before it is put into operation. -
Page 18: Search For Causes Of Failures And Malfunctions, And Ways Of Their
4. Search for Causes of Failures and Malfunctions, and Ways of their Elimination Description of failures and Potential reasons Guidelines for Elimination breakages Unsatisfactory condition of Sharpen the head with a lathe the working surface of the machine. Валок точить на roller or the head. -
Page 19: Storage
5. Storage Both the Product and its spare abrasive rollers and heads shall be stored in a dry heated room at a temperature of at least +5°С and humidity of not more than 75%. In case of noncompliance with the storage rules, and namely: When stored in a cold and damp room, strength of the abrasive weight of the rollers and hears is reduced by half. -
Page 20: Completeness
(is filled in by the manufacturer) Product designation Product name Factory Number Notes Number Component parts of the Product and changes to completeness VDM-200.00.000 Peeling Machine Packaging Spare Parts, Tools and Equipment Products with limited resource (which are installed in the Product) VDM -02.00.000 Roller VDM -03.04.000... -
Page 21: Resources, Periods Of Service And Storage, And Manufacturer's
- improper repair and maintenance of the Product. Guaranteed repair service or replacement of the component parts of the Products, within the specified warranty period, is performed by the manufacturer - "OLIS" Ltd., Ukraine, 65098, Odessa, Stolbovaya st., 28. Phone / fax number + (38 048) 721 11 28; + (38 048) 721 11 29 10. -
Page 22: Certificate Of Packaging
(is filled in by the manufacturer) Product name: Head-Rolling Machine Designator: -200 Factory Number __________ Packed by "OLIS" Ltd. in accordance with the requirements covered by the current technical documentation Position______________________________ Personal Signature _________________________ Printed name ____________________ Year, month, date ________________________ Лист... -
Page 23: Acceptance Certificate
(is filled in by the manufacturer and the ordering customer) Product name: Head-Rolling Machine Designator: VDM-200 Factory Number_______________ Manufactured and adopted in accordance with the State standard regulatory requirements, as well as the valid technical documentation, and classified as fit for operation. -
Page 24: Product Transfers While In Service
13. Product Transfers While in Service (is filled in by the ordering customer) Signature Hours in service the person who Date of Place of Date Reason for carried Since placed in Since last Installation Installation removed removal installation service overhaul works (removal) 13.1. -
Page 25: Data On Product Securing While In Operation
13.3. Data on Product Securing While in Operation (is filled in by the ordering customer) Authority (name, date and Position, surname and Product name (its integral number of the document) Notes initial letters part) and designation Attachment Detachment 14. Repairs and Performance Records Due to Bulletins and Instructions (is filled in by the ordering customer) Position, surname, signature of the person... -
Page 26: Notes On Maintenance And Storage
15. Notes on Maintenance and Storage (is filled in by the ordering customer) Лист ВДМ-00.00.000 РЭ Изм Л № докум. Подпись Дата исИзм... -
Page 27: Annex
Annexes Annex 1. Drawings of fast wearing parts: 1. Roller -02.00.000; 2. Head -03.04.000. Annex 2. Sling arrangement of -200 machine. Annex 3. Electric schematic diagram -200.00.000Э3. Лист ВДМ-00.00.000 РЭ Изм Л № докум. Подпись Дата исИзм...
