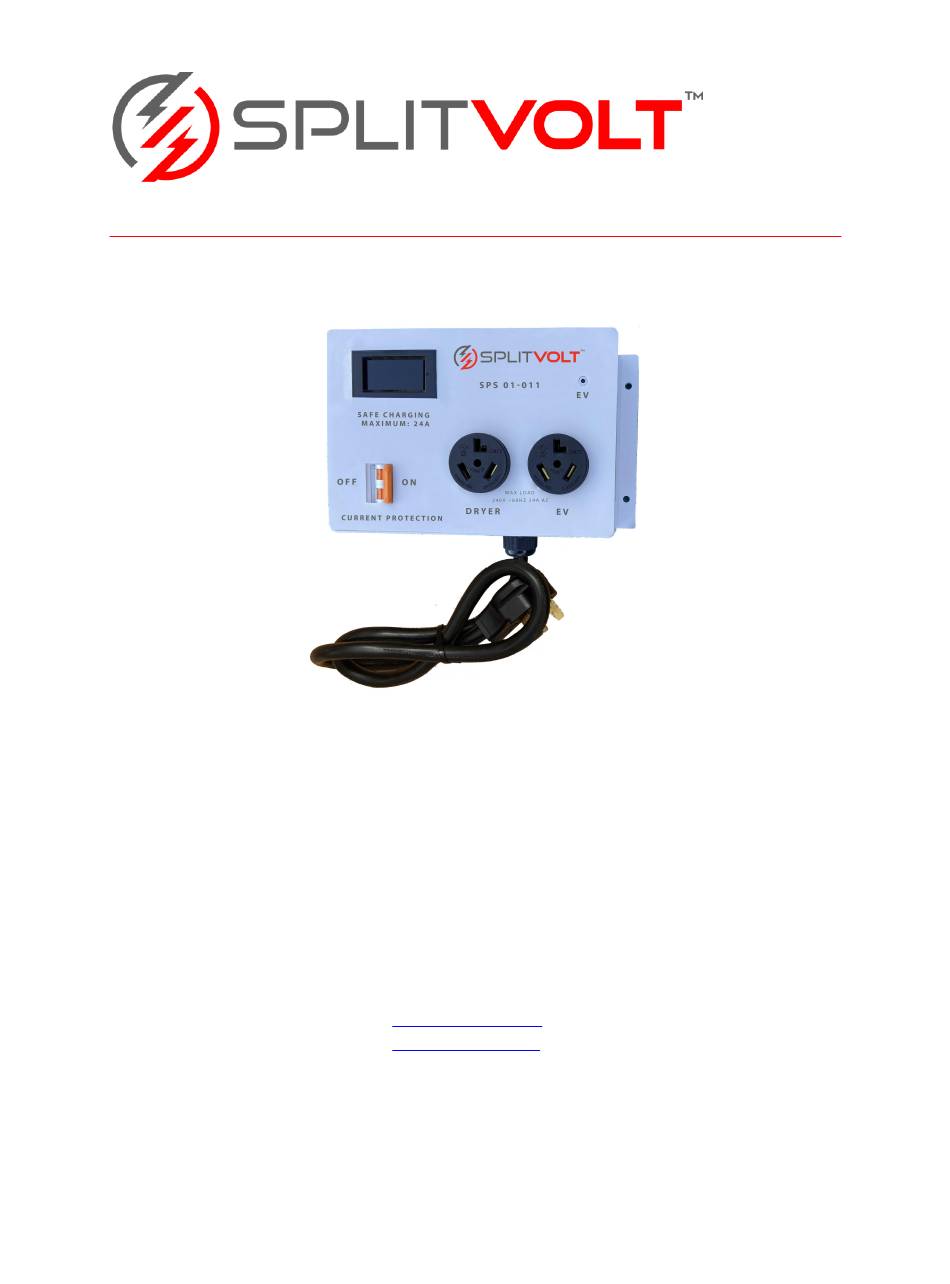

Splitvolt™ Splitter Switch™
Thank you for choosing the Splitvolt™ Splitter Switch™! Charging your electric vehicle (EV)
just got easier! Share and automatically switch full power between your EV charger and
clothes dryer using your existing, standard dryer wall socket. Avoid the cost, complexity and
time of having an electrician install a dedicated circuit, and instead utilize your existing home
wiring with Splitvolt. This new category of product saves you thousands of dollars in rewiring
costs. Just plug it in, and Splitvolt monitors, displays, and switches full 24-amp power
on-demand between attached devices, providing the fastest possible safe charging on a
standard 30-amp circuit, at a fraction of the cost of installing a new, dedicated circuit in your
home.
Please read this manual before use.
Contact information
Splitvolt, Inc.
3250 Victor Street, Unit B
Santa Clara, CA 95054
Copyright © 2020 Splitvolt, Inc. All rights reserved.
Models: SPS 01-011, SPS 02-022, SPS 01-031, SPS 02-032
info@splitvolt.com
www.splitvolt.com
QuickStart User Guide
Advertisement
Table of Contents
Related Manuals for Splitvolt Splitter Switch SPS 01-011
Summary of Contents for Splitvolt Splitter Switch SPS 01-011
- Page 1 Splitvolt. This new category of product saves you thousands of dollars in rewiring costs. Just plug it in, and Splitvolt monitors, displays, and switches full 24-amp power...
-
Page 2: Features And Capabilities
Splitvolt Splitter Switch QuickStart User Guide Models covered in this guide Model Wall Plug Pigtail Dryer Socket EV Socket Connector Connection Connection (Male) (L, Female) (R, Female) SPS 01-011 SPS-01-011-30A 850019012200 NEMA 10-30 NEMA 10-30 NEMA 10-30 SPS 02-022 SPS-02-022-30A... -
Page 3: Specifications
Get to know your Splitvolt Splitter Switch ● Circuit breaker with on/off positions ● 3-line LCD display ● Present power use in Watts ● Total power used over time in kWh ● Voltage and current in amperes (amps) To reset statistics over time, press and hold the flat reset button on the right side of the screen for 5 seconds ●... -
Page 4: Optional Wall Mount
Set your EV charger or EV to a maximum charge rate of 24 amps. 1-year limited warranty Splitvolt, Inc warrants that this product shall be free from defects in material, workmanship and assembly, under normal use, in accordance with the specifications and warnings, for a period of one year from the date of purchase. -
Page 5: Troubleshooting
Splitvolt Splitter Switch for personal, family, or household use, not to commercial, institutional, or industrial purchasers. These warranties are valid only in the United States. In no event shall Splitvolt, Inc. be liable for any direct, indirect, incidental, special, consequential, or multiple damages arising out of the use of the Splitvolt Splitter Switch devices.
