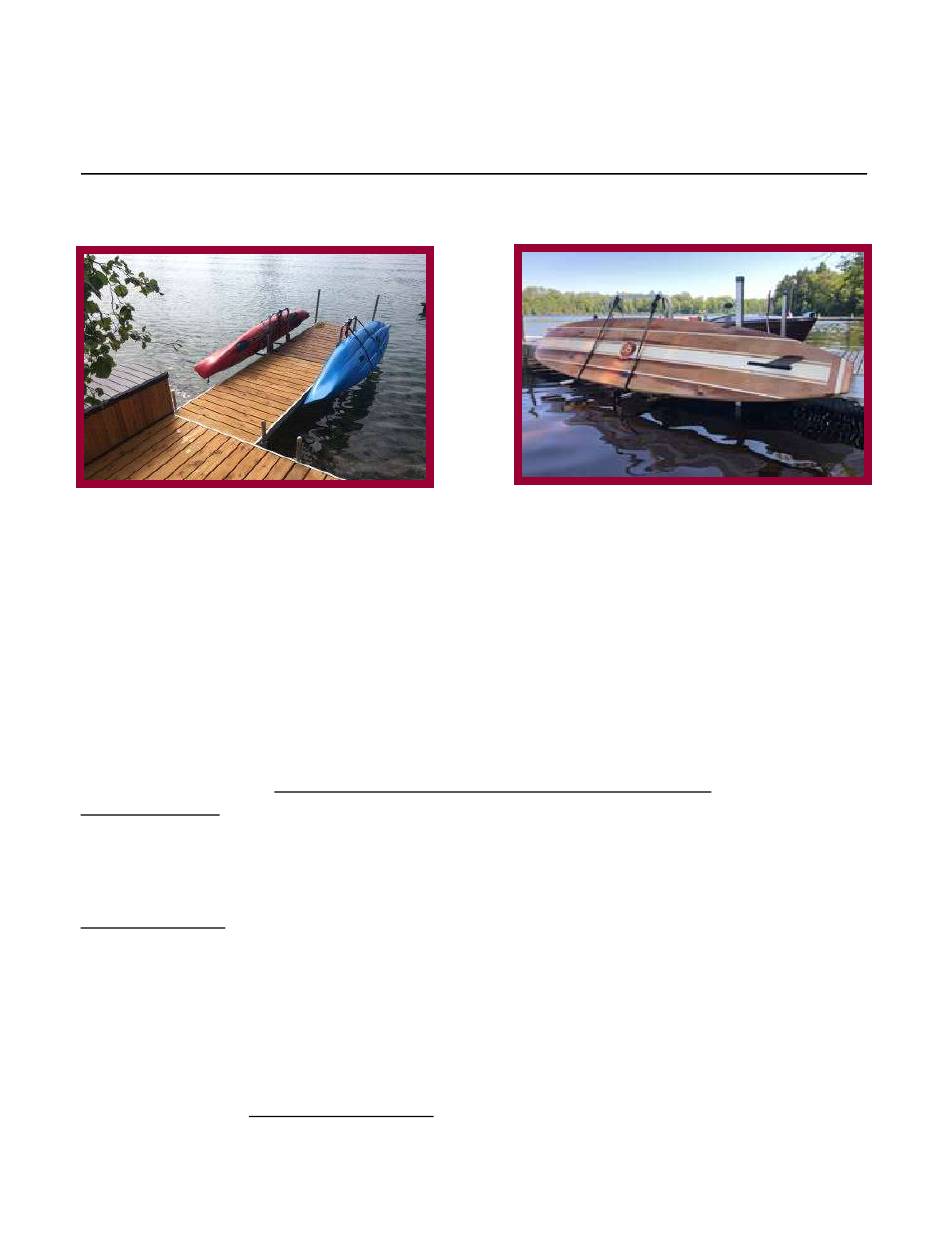

Assembly, Installation, Setup, and Operating Instruction
- Dock Surface Mount Models; Series 100 -
Holds Kayaks / Paddle boards up to 125 pounds.
•
For Docks with Wood, Composite Wood Decking
•
•
Vinyl and Aluminum Decking needs additional support. See Page 14
Mounts to the top of your Dock, underside need not be accessible.
•
Designed for standard dock decking thickness of up to 1 ½ inches.
•
Tools required - Drill with ½ drill bit) for initial installation – 7/16 socket
•
Model DS100 - Aluminum Dockside Operation
•
Operates from the Dockside.
•
Holds your Kayak / Paddleboard 5 to 17 inches below the dock surface.
•
Accommodates Freeboard (Dock Surface to Water Level) height up to 30 inches.
Model WS100 - Aluminum Waterside Operation
•
Operates from the Waterside Only.
•
Holds your Kayak / Paddleboard 5 to 17 inches below the dock surface.
•
Accommodates Freeboard (Dock Surface to Water Level) height up to 36 inches.
Please read these instructions carefully before using this product and save this
manual for future use.
For assistance, please call: 585 – 734 – 7374
Or send email to: info@DockCraft.com
"The DockSider"
Patented
OM100 – 7/7/2021
A Kayak / SUP Lift and Dock Storage Rack
DockCraft Industries LLC
3694 Nibawauka Beach
Canandaigua, New York 14424
Page 1 of 14
TM
Some
Assembly
Required
Advertisement
Summary of Contents for DockCraft The DockSider 100 Series
- Page 1 Please read these instructions carefully before using this product and save this manual for future use. For assistance, please call: 585 – 734 – 7374 Or send email to: info@DockCraft.com DockCraft Industries LLC 3694 Nibawauka Beach Canandaigua, New York 14424...
- Page 2 Store only one kayak per “The DockSider” 10. If the DockSider is not working properly, please contact DockCraft Industries immediately for assistance. 11. Do not enter or exit your Kayak or Paddleboard when your kayak is engaged within “The DockSider”...
- Page 3 How do you make a warranty claim? • Please contact DockCraft Industries for a Return Material Authorization (RMA) number before returning items. A shipping address will be provided at that time. What does your warranty not cover? •...
- Page 4 Assembly Instruction Attach Cradle Handle : 1 - Position Handle over Cradle. 2 - Slide the Handle over extension on Cradle. 3 - Depress Snap Button on Cradle. 4 - Seat Handle until Snap Button pops through the Handle hole. 5 - Repeat process for the other Cradle.
- Page 5 Insert Clevis Pins to set height of rack from water - continued Waterside Rack Hole 4 Hole 4 Hole 2 Hole 2 Circular Retaining Ring Clevis Pin Circular Head Retaining Ring Clevis Pin Head Thread Webbing through Cam Buckle : 8 –...
- Page 6 Completed Assemblies Dockside Operation Model – DS100 Waterside Operation Model – WS100 Series 100 – Bolt On Dock Mount Installation 1 - Select a position on your dock where you choose to mount your Kayak Storage Rack. Ensure there are not any electrical or structural components in the area. 2 - The Docksider should be mounted on 1 section of your dock.
- Page 7 Installation - Continued 7 –Similarly to Step #6, Mount the second Dock Mount Position the second dock mount as shown above Mark and drill as described in Step 6 Install Snaptogglers and secure mount to dock with screws. Installation is Complete and DS100 and WS100 you are now ready for the Final Adjustments...
- Page 8 To “Lock” the Brackets and Pivot Laterals together insert “Locking Pin” on both sides of unit. If Clevis Pin with Circular Retaining Ring in Hole 2 or 4 of Pivot Lateral is seated in the Top Slot. Insert 2 Clevis Pin through hole in bracket and secure with “R”...
- Page 9 c: Lift your kayak just out of the water. If your kayak wants to lean to the right or left, check the straps to see if there is an excessive amount of strap on the side that’s leaning, if so shorten. Also, you may want to adjust the position of the kayak in the rack side to side.
- Page 10 Reposition the 2 webbing keeper and thread, similar to above, such that there is 1 to 3 inches of webbing extended beyond the webbing keeper after threading. Reload your Kayak / Paddle Board, and rotate into its storage position. You may place your Paddle in the loop between the handle and the 1 webbing keeper.
- Page 11 You’re DONE - just Load / Latch / and walk away! WE SINCERELY HOPE YOU ENJOY THE CONVIENIENCE OF “The DockSider” For assistance, please call: 585 – 734 – 7374 Or send email to: info@DockCraft.com DockCraft Industries LLC 3694 Nibawauka Beach Canandaigua, New York 14424 www.DockCraft.com Page 11 of 14...
- Page 12 “The DockSider” Mounting Options DockCraft Industries Bolt On Mount for “The DockSider” - Kayak Dock Rack and Paddleboard Dock Lift - Kayak / Paddle Board Dock Rack Location #2 - 5 inches Bolt on Mount Location #1 - 2 1/4 inches...
- Page 13 Wood Dock with Decking Flush with Side Board Location #2 - 5 inches Location #1 - 2 1/4 inches Hardware - Standard Hardware Wood Decking Support - 1/4 x 2 ½ inch Stainless Steel lag Screw – location #1, not included Ideal for situations when the - ¼...
- Page 14 Aluminum / Vinyl Decking directly We do not recommend attaching the Bolt On Kayak / Paddle board Surface Mount Aluminum / Vinyl decking as the Decking material is thin, however supported by 3 vertical members. Given you choose to mount the Surface (Bolt On) Mount to Aluminum or Vinyl Decking; it is highly recommended that you install a backer board in the area of the mounting positions.
