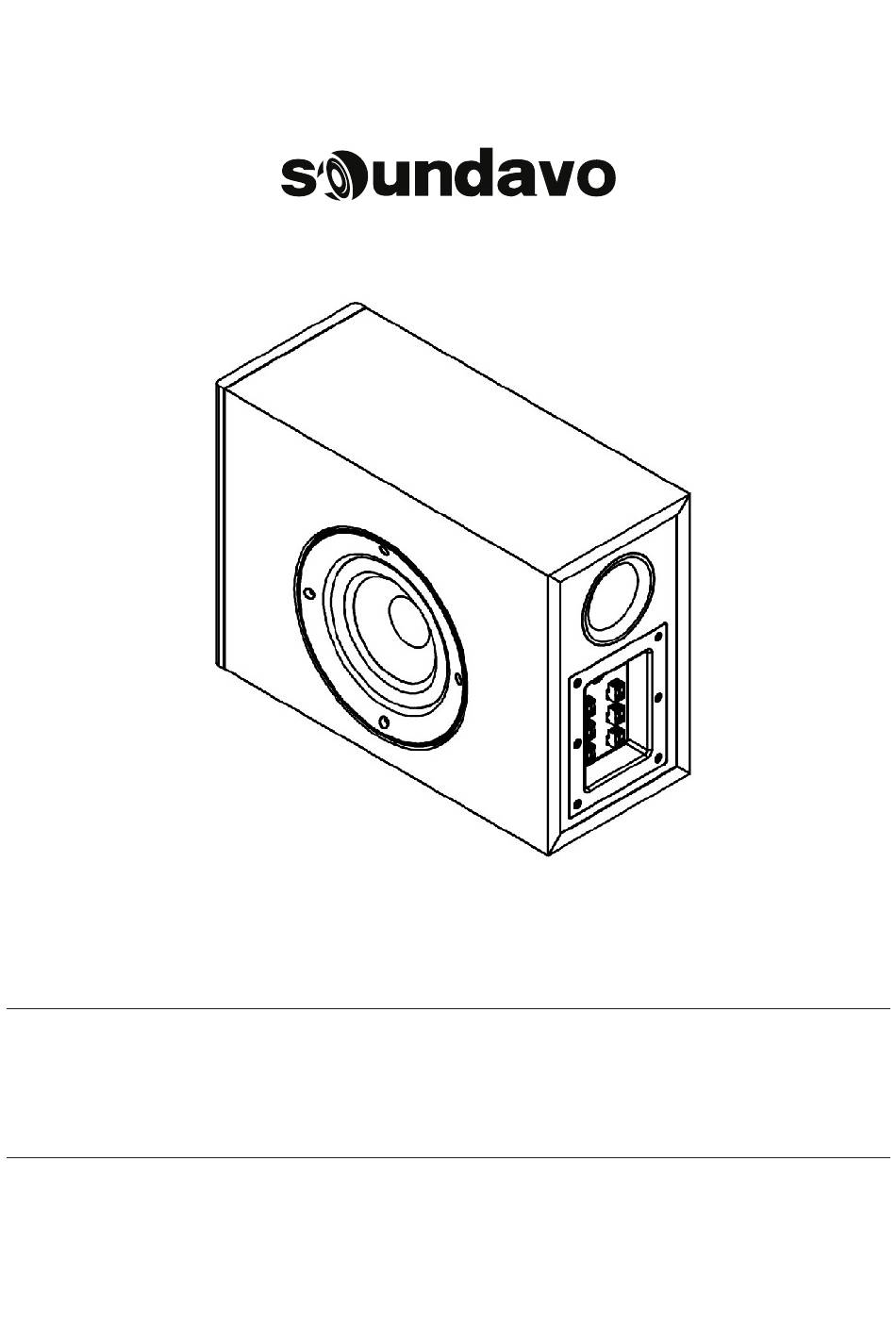

SB-65-BL & SB-65-WH
Dear Customer, Thank you for choosing Soundavo speaker products. Take the time to read this
manual carefully before installing your speakers. It contains tips for getting the most benefit and
instructions for using them safely. We strongly recommend that you keep the packaging and this
manual for future use.
OWNERS MANUAL
Advertisement
Summary of Contents for Soundavo SB-65-BL
- Page 1 SB-65-BL & SB-65-WH Dear Customer, Thank you for choosing Soundavo speaker products. Take the time to read this manual carefully before installing your speakers. It contains tips for getting the most benefit and instructions for using them safely. We strongly recommend that you keep the packaging and this manual for future use.
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES • These speakers are intended for indoor use • Do not use cleaning fluids, solvents, or other only. chemicals to clean the speaker frames or grilles. • Do not expose these speakers to water or moisture of any kind. •... - Page 3 SPEAKER WIRE PREPARATION Before attempting to make any connections it on each channel the same, which ensures that is best to look at the situation, get all the the volume levels, frequency ranges, and necessary materials together, and then make tonalities are identical.
-
Page 4: Key Features
INTRODUCTION Soundavo SB-65 series passive subwoofer loudspeaker (with option HPS-3 series satellite) speaker system, it provides high Þdelity sound allows you to enjoy your favorite music in either remote locations around residential or commercial space application. Such as the restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high fidelity foreground/ background music is required from surface- mount system. - Page 5 INSTALLION Using Included Wall Bracket 1. The SB-65-BL(WH) comes with the speaker plate of the wall bracket pre-attached to the speaker, ensure that the screws holding this plate to the speaker are tight. Run the wiring from the power amplifier to the location desired...
-
Page 6: System Configuration
SYSTEM CONFIGURATION Mixing and Matching The SB-65 series available as packaged system (with HPS-3 series satellite pendant speaker) or as separate items, The SB-HPS-Pack system contains four HPS-3 series satellite pendant speakers and one SB-65 series passive subwoofer as an easy predesigned system. As listed on the connection label, when using four HPS-3 series (or any 4/8 ohms) satellite speakers for 8 ohms loaded or 70/100V application and get connected to the subwoofer ’s SAT 1, 2, 3, &... - Page 7 SYSTEM CONFIGURATION The amplifier and SB-HPS System is wired for MONO mode. It is highly advisable to support the unit while these connections are being made. Connect all wires to the speaker at the back terminal plate observing proper polarity of the connections. After all connections are made test the complete system operation.
- Page 8 70V and 100V. The tap selector rotary switch is located on the rear panel of the SB-65-BL (WH), adjust the tap setting before applying power to the speaker with amplifier, this adjustment can be made with at head screw driver.
- Page 10 The list of authorized distributors is available on the website: http://www.soundavo.com To validate your warranty, you must produce as proof of purchase the original of your invoice containing the date of your purchase and the stamp of your dealer.
