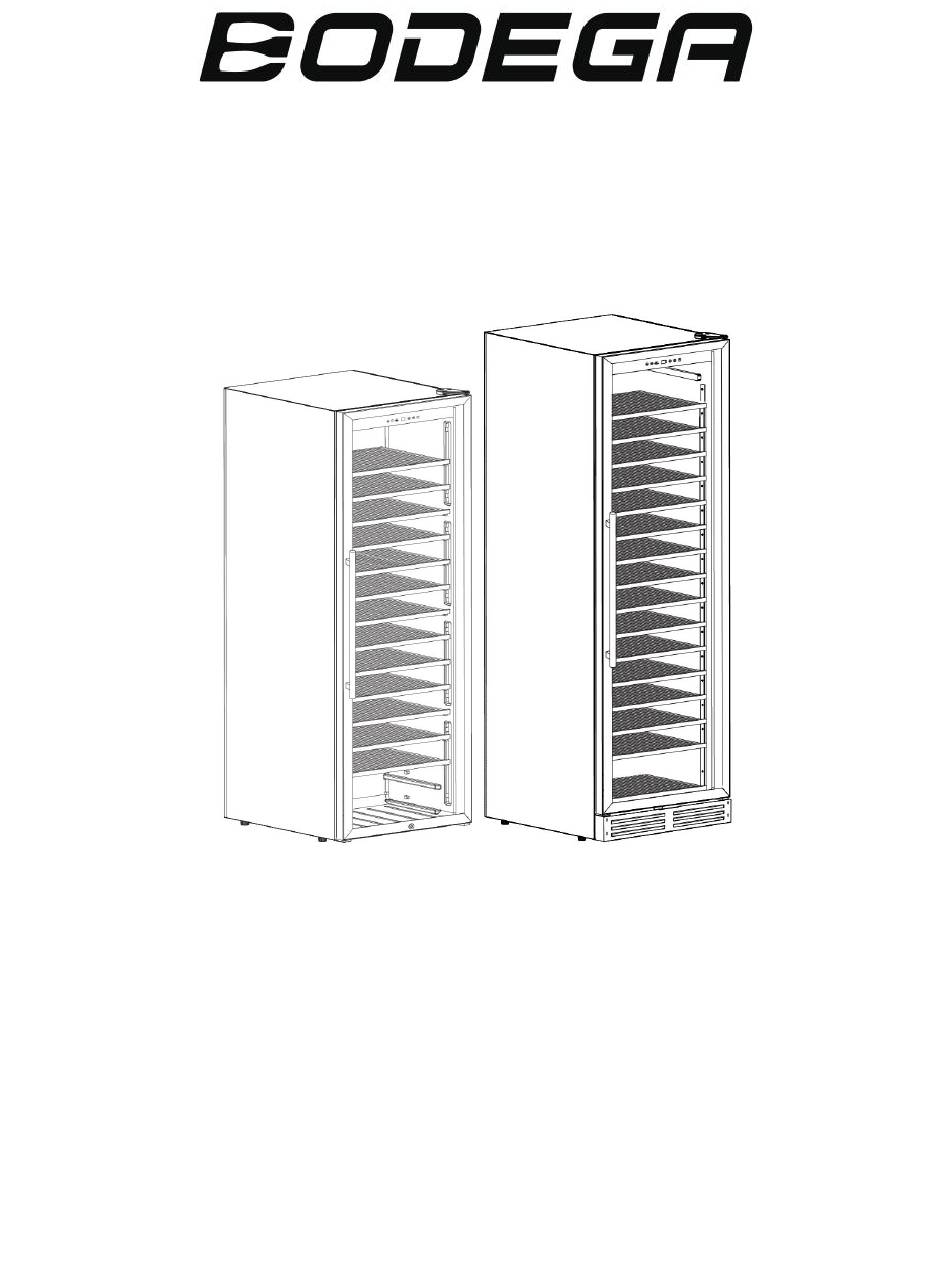

INSTRUCTION MANUAL

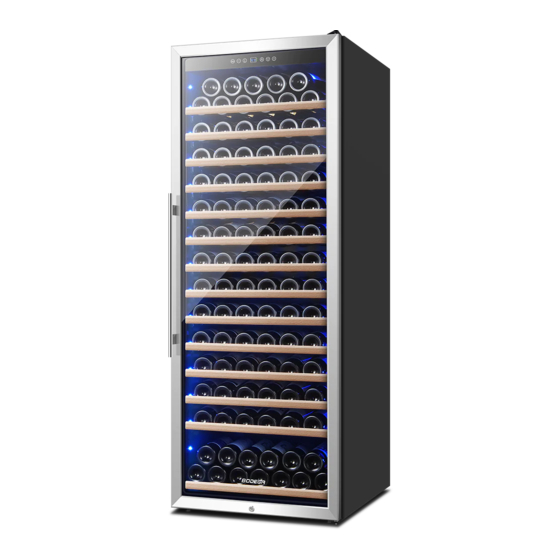

COMPRESSOR WINE COOLER
MODEL:YC-408A/YC-510A
115V 60Hz 150W
This manual contains important information including safety and installation instructions of the
appliances. Please read it carefully before use and follow all safety information & instructions.
It is recommended to keep this manual for easy reference so that you can be familiar with the
operation of the appliance.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BODEGA YC-408A
Summary of Contents for BODEGA YC-408A
- Page 1 INSTRUCTION MANUAL COMPRESSOR WINE COOLER MODEL:YC-408A/YC-510A 115V 60Hz 150W This manual contains important information including safety and installation instructions of the appliances. Please read it carefully before use and follow all safety information & instructions. It is recommended to keep this manual for easy reference so that you can be familiar with the...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFE INFORMATION PARTS BREAKDOWN INSTALLATION INSTRUCTIONS Before the first use Installation of your wine cooler Electrical connection Extension cord Power bar with surge protector Installing stainless steel handle OPERATING YOUR WINE COOLER Recommended temperature settings Storage Door lock Cleaning your wine cooler Shelves Power failure... -
Page 3: Important Safe Information
IMPORTANT SAFETY INFORMATION Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following: ... - Page 4 The appliance should not be located next to ovens, grills or other sources of high heat. The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115V/60Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
-
Page 5: Parts Breakdown
service personnel. DO NOT puncture refrigerant tubing. CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s guide before attempting to service this product. All safety precautions must be followed. CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local regulations. -
Page 6: Installation Instructions
Control Panel Top Hinge Wooden Shelves Glass Door with Handle Kick plate Safety Child Lock Leveling Legs INSTALLATION INSTRUCTIONS Before the first use Remove the exterior and interior packing. Check to be sure you have all of the following parts: o shelves o 2 Keys... -
Page 7: Installation Of Your Wine Cooler
o Stainless Steel Handle o Instruction Manual Before connecting the Wine cooler to the power source, let it stand upright for approximately 48 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. ... -
Page 8: Extension Cord
voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. -
Page 9: Operating Your Wine Cooler
4. If you choose not to use the handle supplied, simply follow step 1 to access the installation screws and remove them and then place the two decorative plugs into the two holes separately. Continue on to step 3 to replace the door gasket to its original position. Illustration # 1 Illustration # 2 Gasket... -
Page 10: Storage
° F / C ° Temperature setting range：5-18℃(40-65℉) Turns the interior light on or off Toggles the temperature display between Celsius and Fahrenheit F / C Press to begin adjusting the temperature for upper or lower zone Adjusts the temperature in 1 degree increments Adjusts the temperature in 1 degree decrements Press for 3 seconds to turn on /off the appliance Storage... - Page 11 Storage of YC-408A :154 standard 750ml bottles Shelf 1 to 13: 11 bottles per shelf Bottom section: 11bottles Storage of YC-510A: 176 standard 750ml bottles Shelf 1 to 15: 11 bottles per shelf Bottom section: 11bottles...
-
Page 12: Door Lock
Door Lock Your unit is provided with a lock and key. The keys are located inside the plastic bag that contains the Instruction Manual. Insert the key into the lock and turn it counter clockwise to unlock the door. To lock the door do the reverse operation making sure metal pin is engaged completely. -
Page 13: Power Failure
Figure A Figure B Power failure Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents. -
Page 14: Troubleshooting Guide
Remove the bottles of wine stored on the two (2) shelves in front of the filter. Remove the shelves and set aside to be replaced once you have changed the filter Hold the filter and turn it at 45 degrees in the counter-clockwise direction and then pull it out. - Page 15 fans will cycle ON and OFF while the compressor is off approximately every 10 seconds, this is called “Semi-speed status”. This cycle is normal and meant both to circulate the air as well as ensure the continued operational status of the fans. If the fan stops completely and does not complete this cycle the fan is non-operational.
-
Page 16: Technical Data
63"×23.54"×27.17" 76.78"×23.54"×27.17" WARRANTY Thank you for choosing BODEGA product. We sincerely hope that you are satisfied with it. The manufacturer's warranty covers the product for a period of 12 months from the date of purchase against manufacturing faults. All warranties are automatically kept track of in our system, so there is no need to register your product.
